Types of Fuses: Your Guide to Overcurrent Protection

Fuses are essential components in electrical systems, acting as safety devices designed to protect circuits from the damaging effects of overcurrent. These small but critical elements melt and break an electrical circuit when the current flowing through them exceeds a predetermined threshold, effectively preventing excess electrical flow that can lead to overheating, component damage, or even electrical fires. By providing a simple yet effective means of overvoltage protection, fuses play a vital role in maintaining electrical safety and reliability across various applications, from household electronics to industrial machinery.

Roles of Fuses in Protection

Fuses play a critical role in protecting electrical systems by specifically guarding against overcurrent situations—events where an excessive amount of electrical current flows through the circuit. This can occur due to circuit overloads, short circuits, or faults in the system. By keeping the overvoltage protection, fuses prevent the overheating of wires and components that could potentially lead to electrical fires. Because of such reasons, the basics of LV Fuses should be considered deeply. Thus, they not only preserve the integrity and functionality of electrical devices but also significantly enhance safety by mitigating fire risks in residential, commercial, and industrial settings.

Types of Fuses

Fuses can be categorized based on their specific applications and characteristics. Here’s a closer look at some common types of fuses:

Automotive Fuses

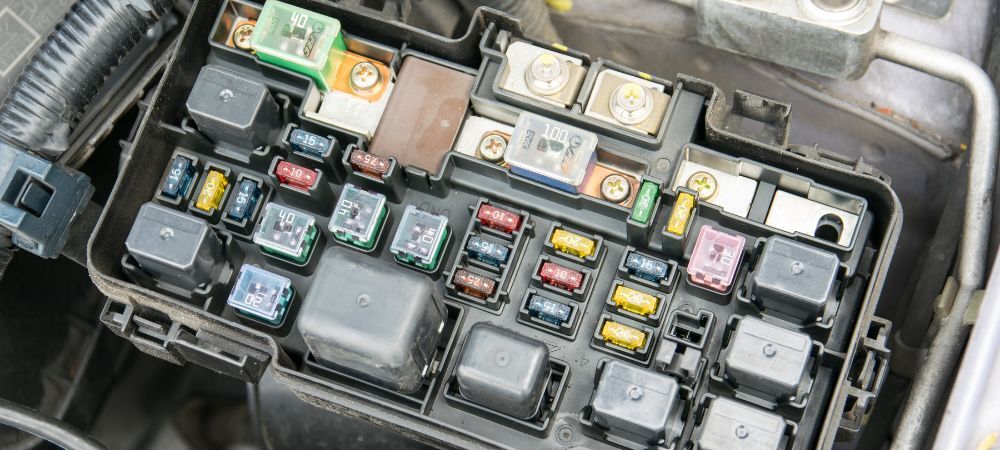

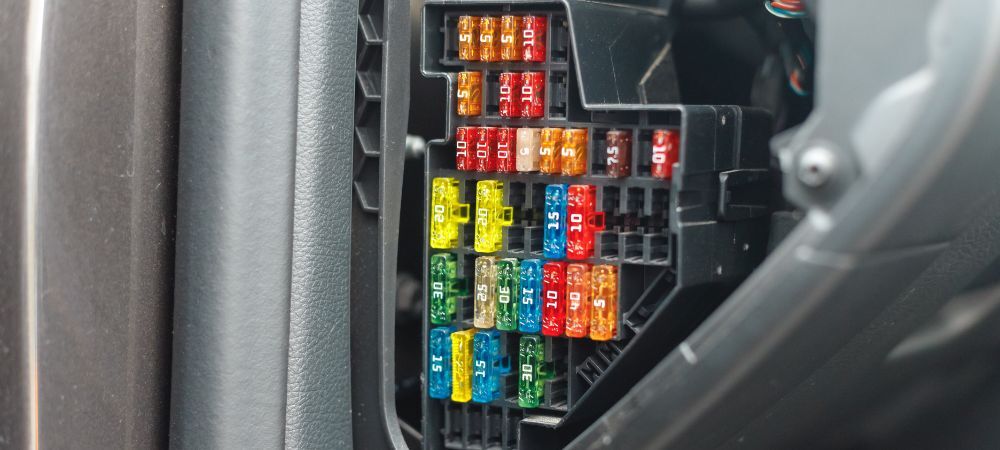

• Blade Fuses: Widely used in modern vehicles, blade fuses plug into fuse blocks and come in different sizes such as mini, standard, and maxi to handle varying amperages.
• Glass Tube Fuses: Older vehicles often use these fuses, recognizable by their cylindrical shape and glass construction which allows visual inspection of the fuse wire.

Electrical Fuses

• Cartridge Fuses: Common in residential and commercial buildings, these fuses are made from ceramic or glass and fit into fuse holders or blocks. They are known for their high capacity and are used for main electrical service protection.
• High Rupture Capacity (HRC) Fuses: These are used in industrial applications for protecting high voltage circuits. They can handle higher currents and have a greater interrupting rating.

Specialty Fuses

• Resettable Fuses: Also known as polymeric PTC fuses, these can be reset after tripping and do not require replacement, making them ideal for applications prone to frequent overcurrent conditions.
• Thermal Fuses: Designed to respond to excessive temperature rather than overcurrent, these are used in appliances like coffee makers and hair dryers.

Features and Functions

Different types of fuses vary significantly in terms of voltage ratings, current-carrying capacities, and intended applications. For instance:

• Voltage Ratings: This indicates the maximum voltage a fuse can handle. Automotive fuses typically range from 12 to 42 volts, while industrial fuses may exceed 1000 volts.
• Current-Carrying Capacities: Fuses must be selected based on the maximum current expected in the circuit to prevent premature blowing or failure to blow at critical times.

Installation and Replacement

Proper installation and timely replacement of fuses are key to ensuring safety and functionality:

• Installation: Always ensure the power is off before installing a fuse. Match the fuse’s specifications with the circuit requirements, especially the voltage and current ratings. The basics of LV fuses should be considered before installations.
• Replacement: Replace a blown fuse with one of the same type and rating. Using a higher or lower rating can be dangerous and may cause a malfunction of the electrical system.

Selecting the right fuse for specific applications is crucial for both safety and functionality. Here are some tips to help you choose the appropriate fuse:

1. Understand Fuse Ratings: Each fuse is rated for a specific voltage and current. It’s vital to choose a fuse and holder whose voltage and current ratings match or exceed those of the electrical system in which it will be installed. Using a fuse with a lower rating than required can lead to frequent blowing, while one with a higher rating may not protect the circuit effectively.
2. Identify the Type of Current: Determine whether the circuit operates on AC (Alternating Current) or DC (Direct Current) as some fuses are specifically designed for one type of current. AC fuses cannot always be used in DC circuits as the arc is harder to extinguish in DC applications.
3. Consider the Operating Environment: Environmental factors such as temperature, humidity, and the presence of corrosive elements can affect fuse performance. Make sure the fuse and holders in actual the fuses’ material and type are suitable for the environmental conditions where it will operate.
4. Check for Pulse Tolerance: Some circuits, especially in digital or electronic applications, may experience short, high-energy pulses that can wear out a standard fuse. For such applications, select a fuse designed to handle pulse tolerance.
5. Select the Appropriate Type: Depending on the application, you might need a specific type of fuse, such as:

• Time-Delay Fuses: Ideal for circuits with motors or other inductive components that draw higher currents temporarily when they start.
• Fast-Acting Fuses: Suitable for protecting sensitive electronic equipment, as these fuses and holders open very quickly under overcurrent conditions.

2. Physical Size and Shape: Ensure the fuse fits into the existing holder or fuse box. Physical dimensions are critical in installations where space is limited or in specific equipment like cars or electronic devices.
3. Compliance and Standards: Always use fuses that comply with national and international standards (like UL, CE, or ANSI). Compliance ensures reliability and safety.
4. Consult Documentation: Always refer to the equipment’s user manual or manufacturer’s specifications for recommended fuse types and ratings. This documentation often provides the most accurate guidance for selecting a suitable fuse.
5. Consider Specialty Fuses: For special applications, like solar power systems or explosive environments, you may need fuses designed with special properties, such as increased rupture capacity or flameproof enclosures.
6. Seek Expert Advice: If unsure, consult with a qualified electrician or a professional in the field. They can provide valuable insights and recommendations based on experience and expertise.

By following these tips, you can ensure that the selected fuse adequately protects your electrical system, extending the lifespan of your devices and enhancing safety.

FAQs

Certainly! Here are some frequently asked questions (FAQs) related to types of fuses and their use in overcurrent protection, providing clear answers to common inquiries:

Q: What is the difference between a standard fuse and a circuit brewaker?

A standard fuse is a one-time use device that needs to be replaced after it blows due to an overvoltage condition. A circuit breaker, on the other hand, can be reset and reused after tripping. Fuses typically respond quicker than circuit breakers, providing faster protection against overcurrent, which can be crucial in protecting sensitive electronic equipment.

Q: How do I know when a fuse needs to be replaced?

A fuse needs to be replaced when it has blown, which you can often determine by a visible break in the wire inside a glass fuse or by a dis-colored window on ceramic fuses. Some fuses also feature an indicator pin or flag that pops up when the fuse has blown. Always ensure the power is off before inspecting or replacing a fuse.

Q: Are all fuses the same size?

Answer: No, fuses come in various sizes and shapes depending on their intended use. For example, automotive fuses are typically small and blade-shaped, while industrial fuses can be larger and cylindrical. It’s important to use the correct size and type of fuse for the equipment you are protecting.

Q: Can I replace a blown fuse with one of a higher rating to prevent it from blowing again?

Answer: No, replacing a blown fuse with one of a higher rating is not recommended as it may not provide the necessary protection and could allow too much current to flow through the circuit, potentially causing damage or fire. Always replace a fuse with another of the same type and rating.

Q: What is a time-delay fuse and when should I use it?

A time-delay fuse, also known as a slow-blow fuse, is designed to tolerate a temporary surge in current that typically occurs when motors or transformers start. This type of fuse should be used in circuits with appliances or equipment that have high start-up currents to prevent nuisance blowing.

Q: What should I consider when choosing a fuse for a specific application?

When selecting a fuse for a specific application, consider the normal operating current of the circuit, the voltage rating, the type of current (AC or DC), environmental conditions, and whether the circuit experiences short-term current surges. Additionally, check for any specific manufacturer recommendations and comply with local electrical codes.

Q: How does ambient temperature affect fuse performance?

Ambient temperature can significantly impact fuse performance. Higher temperatures can cause a fuse to blow at lower currents than intended, while lower temperatures might delay the fuse action. It’s important to select a fuse that is rated for the operating environment’s temperature range.

Q: Can I use any fuse for AC and DC applications?

No, certain fuses are specifically designed for either AC or DC applications due to differences in how the electrical current is carried and interrupted. DC circuits, for instance, require fuses that can extinguish the electric arc that occurs when the fuse blows, which is more challenging than in AC circuits.

Q: What type of fuse should I use for my air-conditioning system?

Air-conditioning systems typically require a time-delay fuse that can handle temporary surges when the compressor starts. Ensure the fuse has the correct amperage rating as specified by the manufacturer to avoid any operational issues.

These FAQs provide a basic understanding of different aspects of fuse selection and usage, enhancing safety and efficiency in electrical systems.

Conclusion

Fuses play an indispensable role in safeguarding electrical systems by preventing overcurrent and potential fires. Understanding the different types of fuses, their features, and correct installation practices can help maintain the safety and efficiency of your electrical setups. Always prioritize the use of appropriate fuses and consult a professional when in doubt to ensure optimal protection of your electrical systems. Don’t forget to explore Goswitchgear options for enhanced safety measures!
