Low Voltage (LV) fuses are crucial in electrical safety, safeguarding equipment, and preventing hazards. They are designed to protect electrical circuits and devices from excessive currents that can cause damage or fire. This article explores the various basics of LV Fuses, including their types, applications, and how to choose the right one.

Exploring Different Types of LV Fuses: A Detailed Overview

Exploring Different Types of LV Fuses: A Detailed Overview

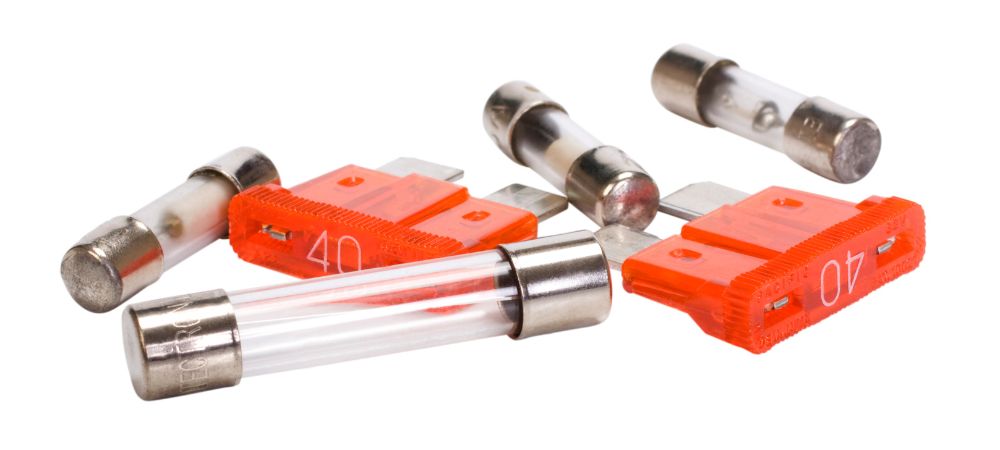

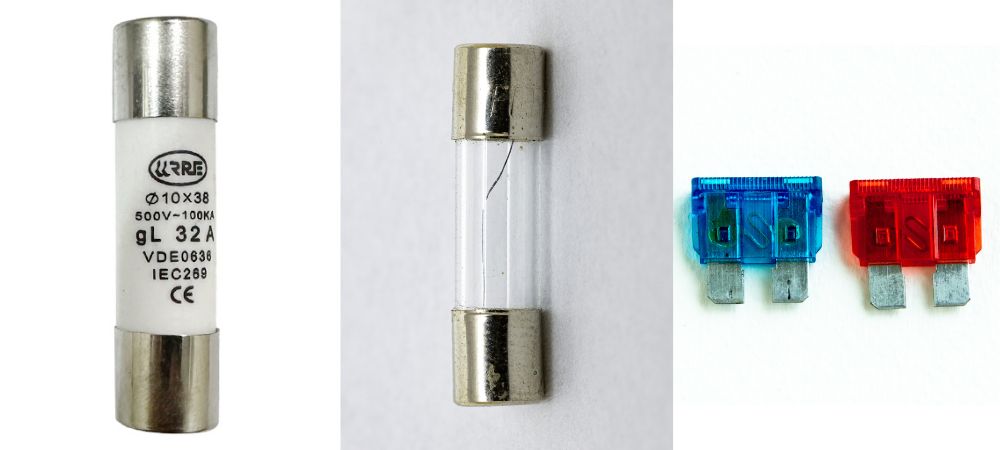

Low Voltage (LV) fuses are essential components in electrical systems, offering protection by breaking the circuit in cases of excessive current. Understanding LV Fuses is key to selecting the right one for specific applications. Let’s delve into three primary types: Cartridge, Blade, and High Rupture Capacity (HRC) Fuses.

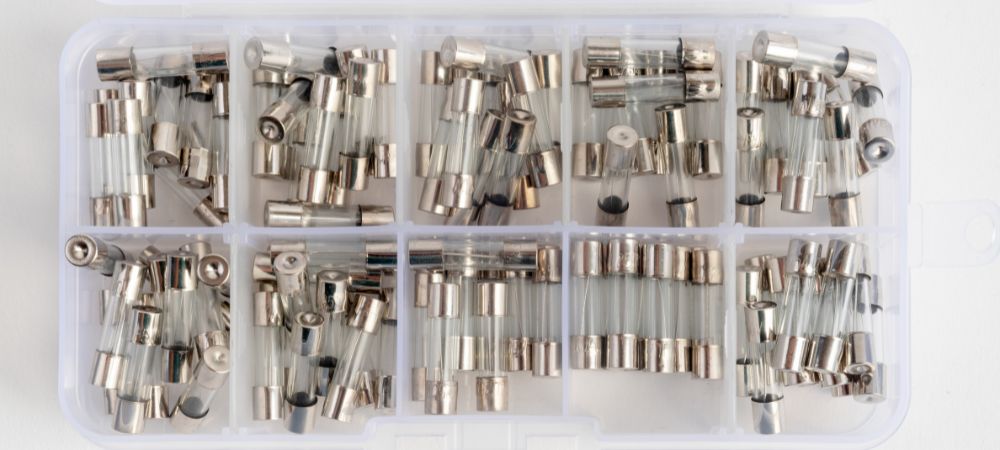

Cartridge Fuses: Reliable and Cost-Effective

Cartridge fuses are a prevalent choice in both residential and small commercial settings. Their popularity stems from two main attributes: reliability and cost-effectiveness. Encased in a cylindrical body, these fuses are designed to offer precise protection to electrical circuits. The working principle of a cartridge fuse is straightforward yet effective. When an overcurrent occurs, the fuse element inside the cylinder melts, interrupting the flow of electricity and thereby protecting the circuit from damage.

The design of cartridge fuses varies, accommodating different current ratings and voltages, which makes them versatile. They are particularly suitable for appliances and lighting circuits in homes and small businesses. Their simple design also allows for easy replacement, a key factor in maintenance and repair. Moreover, cartridge fuses are known for their accuracy in tripping at the specified current rating, ensuring high safety.

Blade Fuses: Compact and Convenient

Blade fuses have become synonymous with automotive electrical systems. Their compact size and ease of installation make them ideal for vehicles where space is often at a premium. These fuses are easily recognizable by their plastic body and two metal prongs. The design allows them to be quickly plugged into fuse blocks and sockets, making them a user-friendly option for circuit protection in cars and trucks.

In vehicles, blade fuses protect against overcurrent in various systems, ranging from the headlights and windshield wipers to the car’s internal computer systems. Various blade fuse sizes and ratings allow for tailored protection for each circuit, minimizing the risk of damage from electrical faults. Their durability and resistance to vibration also make them well-suited for the automotive environment, where they can withstand the rigors of daily use.

High Rupture Capacity (HRC) Fuses: For Heavy-Duty Protection

High Rupture Capacity (HRC) fuses are the go-to choice in industrial applications where the electrical systems handle high currents. Designed to manage and interrupt thousands of amperes, HRC fuses are critical in safeguarding heavy machinery and large electrical installations. These fuses are characterized by their substantial construction and ability to handle significant fault currents without exploding or disintegrating.

HRC fuses are applied in manufacturing plants, power plants, and large commercial facilities. Their robust design protects against both overloads and short circuits, ensuring the safety of expensive machinery and preventing potential downtime. The construction of HRC fuses typically involves materials that can withstand extreme conditions, ensuring reliability even under challenging operational circumstances.

Applications of LV Fuses in Various Fields: An In-Depth Analysis

Applications of LV Fuses in Various Fields: An In-Depth Analysis

Low Voltage (LV) fuses are fundamental components in various applications, ranging from domestic to industrial settings. Their primary function is to protect electrical circuits by interrupting power in the event of an overload or short circuit. This detailed exploration focuses on their applications in residential and commercial buildings, the automotive industry, and industrial settings.

Residential and Commercial Buildings: Ensuring Safety and Reliability

LV fuses are integral to maintaining electrical safety in residential and commercial environments. These settings often feature a diverse range of electrical appliances and systems, from basic lighting fixtures to complex HVAC systems. LV fuses are used to protect these installations against potential electrical hazards.

  • Circuit Protection: In homes, LV fuses are commonly found in consumer units or fuse boxes. They safeguard each circuit for lighting, sockets, or specific appliances like electric ovens. LV fuses protect lighting, power circuits, and specialized equipment in commercial buildings with higher electrical demand.
  • Preventing Fire Hazards: By interrupting power in an overcurrent situation, LV fuses prevent wires from overheating, which could otherwise lead to fires.
  • Protecting Electrical Appliances: Sensitive electronics in residential and commercial settings are vulnerable to damage from surges. LV fuses help safeguard these devices, ensuring longevity and reducing maintenance costs.

Automotive Industry: Critical for Vehicle Safety

Due to their compact size and efficiency, the automotive sector heavily relies on LV fuses, predominantly blade fuses. Vehicles contain numerous electrical circuits, each requiring protection to ensure vehicle functionality and safety.

  • Diverse Circuit Protection: In cars, LV fuses protect circuits controlling everything from the engine management system to comfort features like air conditioning and infotainment systems.
  • Safety in Fault Conditions: Fuses prevent damage to expensive components like ECUs (Engine Control Units) and other electronic modules. They also avoid harnesses of wiring from overheating, which could lead to vehicle fires.
  • Ease of Maintenance: The standardized design of automotive fuses allows for easy diagnosis and replacement, an essential aspect of vehicle maintenance.

Industrial Settings: Handling High Power Demands

In industrial environments, where the electrical systems handle significantly higher currents, the role of High Rupture Capacity (HRC) fuses becomes crucial. These fuses protect against substantial power overloads and short circuits in industrial machinery and electrical systems.

  • Protection of Heavy Machinery: Industrial machines, which often represent substantial investments, rely on HRC fuses for protection against electrical faults that could cause damage or operational downtime.
  • Maintaining Operational Safety: Industries such as manufacturing, chemical processing, and power generation often work with high-power electrical systems. HRC fuses ensure the safety of these systems, thus protecting the workforce and preventing accidents.
  • Minimizing Production Losses: By preventing electrical faults from escalating, HRC fuses reduce production losses due to equipment downtime or damage.

Criteria for Selecting the Right LV Fuse: Comprehensive Guidelines

Criteria for Selecting the Right LV Fuse: Comprehensive Guidelines

Selecting the right Low Voltage (LV) fuse is critical in electrical system design and maintenance. It’s not just about choosing a fuse of the right size or type; several key factors must be considered to ensure optimal protection and functionality.

Here, we explore in detail the criteria to be considered when selecting LV fuses and circuit breakers, such as understanding the electrical load, matching the fuse rating, ensuring physical compatibility, and accounting for environmental conditions.

Understanding the Electrical Load

The first step in selecting an appropriate LV fuse is understanding the electrical load it is meant to protect. This involves two key aspects:

  • Normal Operating Current: The regular current flows through the circuit during typical operation. The selected fuse must be able to carry this current continuously without blowing.
  • Potential Fault Current: This refers to the maximum current that could flow through the circuit in the event of a fault. The fuse must be able to interrupt this current promptly to prevent damage to the circuit or equipment.

Understanding these parameters ensures that the chosen fuse will operate effectively under normal conditions and respond correctly during fault conditions.

Fuse Rating: Matching the Circuit

The rating of the fuse is perhaps the most critical factor in its selection:

  • Ampere Rating: The fuse’s ampere rating should closely match the circuit’s requirements. A fuse with too high a rating may not blow in case of a minor fault, leading to potential damage. Conversely, a fuse with too low a rating will blow unnecessarily, causing inconvenience and possible downtime.
  • Voltage Rating: The voltage rating of the fuse must be equal to or greater than the circuit’s voltage. This ensures that the fuse can effectively interrupt the circuit under fault conditions.
  • Breaking Capacity: This is the maximum fault current the fuse can safely interrupt. The breaking capacity of the fuse must be higher than the potential maximum fault current of the circuit.

Physical Size and Compatibility

Physical compatibility is essential for safety and functionality:

  • Size and Shape: The physical dimensions of the fuse must fit the holder or socket. An improperly sized fuse can lead to poor electrical contact and potential hazards.
  • Type: Different circuits and applications may require different fuses (like cartridge, blade, or HRC). Ensuring the correct type of fuse is used is crucial for proper operation.

Environmental Conditions

The operating environment can significantly impact fuse performance:

  • Temperature: Fuses can be sensitive to temperature variations. Extreme temperatures can affect the fuse’s ability to operate correctly.
  • Humidity and Moisture: High humidity or exposure to moisture can lead to corrosion or other damages to the fuse, impacting its performance.
  • Chemicals and Contaminants: In industrial environments, exposure to chemicals or other contaminants can affect the fuse’s materials, leading to degradation or failure.
  • Vibration and Movement: Fuses must withstand vibration and movement without losing contact or breaking, especially in automotive or industrial applications.

FAQs:

What is an LV fuse used for?

An LV fuse protects electrical circuits from excessive current, preventing damage to appliances and wiring and averting fire hazards.

How do I choose the right fuse rating for my circuit?

Match the fuse rating with the circuit’s normal operating current and ensure it can interrupt the potential fault current.

Can an LV fuse be used in any environment?

Environmental factors like temperature, humidity, and chemicals affect a fuse’s performance. Choose a fuse suitable for the specific conditions.

What happens if I use a higher-rated fuse than needed?

A higher-rated fuse may not provide adequate protection, potentially leading to circuit damage during overcurrent situations.

Are LV fuses suitable for industrial applications?

Yes, especially High Rupture Capacity (HRC) fuses are designed for industrial applications, handling high current faults and protecting heavy machinery.

Conclusion:

Choosing the right LV fuse is about balancing protection, efficiency, and cost. By understanding the basics of LV fuses, their types, applications, and selection criteria, one can make informed decisions to ensure electrical safety and equipment longevity. Remember, the right fuse not only protects but also enhances the performance of electrical systems.If you are looking for good-quality LV fuses, Go Switchgear is the right place to shop it!
