Understanding the Role of Undervoltage Relays in Electrical Safety

Electrical Safety

Understanding the Role of Undervoltage Relays in Electrical Safety

Electrical safety is a field of paramount importance that cannot be overstated. With the exponential rise in our dependence on electrical devices and systems in almost every aspect of our daily lives, ensuring these systems operate safely is vital. From the coffee machine that brews your morning drink to the high-speed trains we ride, they all heavily rely on electricity.

Understanding electrical safety isn’t just about preventing a short circuit or avoiding a shock; it’s about ensuring that all devices and systems operate optimally without causing harm or becoming hazardous. Failures in electrical systems don’t just stop at device malfunction—they can result in fires, infrastructure damage, or even loss of life.

Undervoltage relays, aslo known as UVR, are essential components in electrical systems designed to detect voltage drops below-specified thresholds. They play a pivotal role in ensuring the safety and protection of equipment and infrastructure. In scenarios where sustained low voltage could damage equipment or compromise system stability, an under voltage relay intervenes, preventing potential hazards and ensuring the longevity and reliability of the electrical setup.

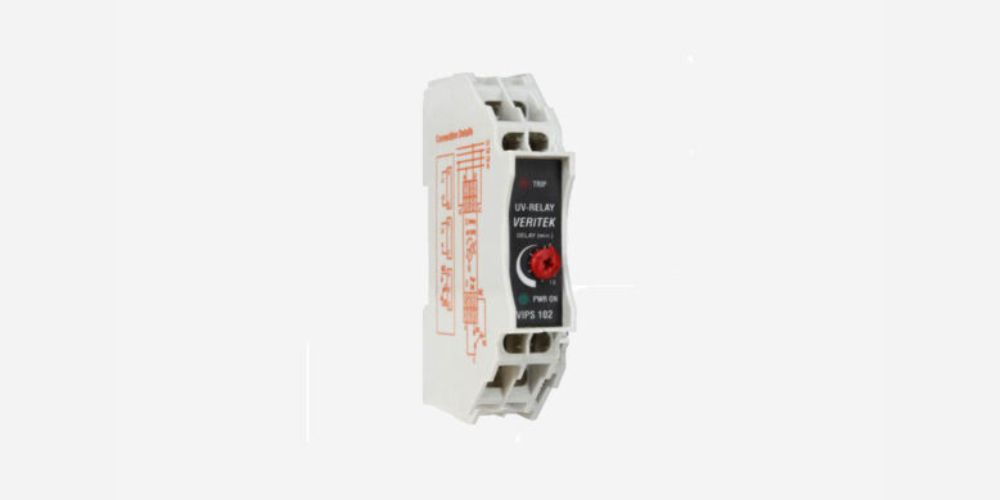

Basics of Under Voltage (UV) Relay

At the heart of many safety mechanisms lies the Undervoltage (UV) relay—a seemingly simple device, but one with a significant responsibility. As the name suggests, an under voltage relay monitors voltage levels. Think of it as a vigilant guard always checking whether the voltage is within acceptable limits.

When the voltage in a circuit drops below a certain predefined threshold, this guard—our UVR relay—springs into action. Depending on its configuration and the nature of the equipment it’s protecting, it can either sound an alarm, send a notification, or disconnect the equipment entirely from the power source.

But why is voltage so crucial? Voltage, in many ways, is akin to the blood pressure in our bodies. Just as both high and low blood pressure states are concerning, overvoltage and undervoltage conditions can be detrimental to electrical devices. This makes over and Undervoltage protection 24v DC relay so crucial to the proper functionality of electrical systems.

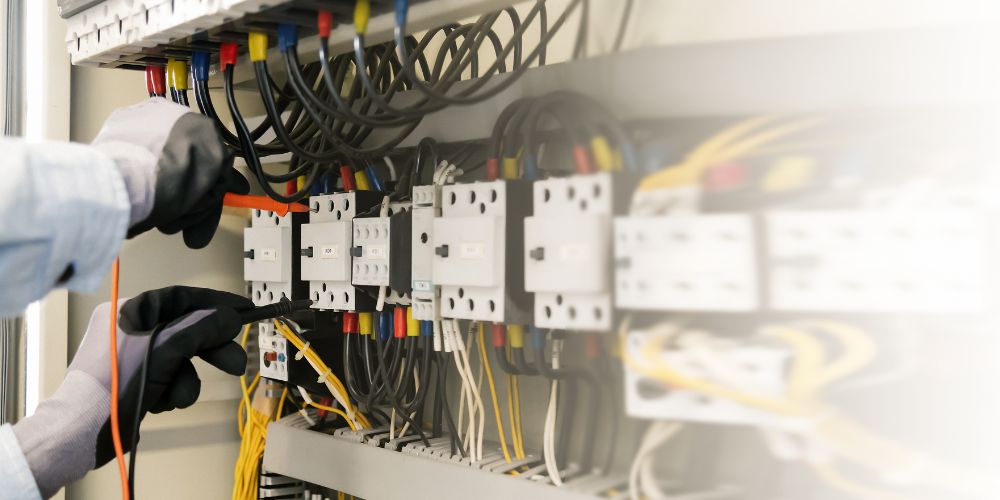

Importance of UV Relays in Protecting Electrical Equipment

Picture this: A large industrial motor operates a critical component in a factory. If the motor receives less voltage than it needs, it struggles. This struggle results in overheating, increased wear and tear, and reduced efficiency. If this motor were to fail, it could halt the entire production line, leading to financial losses and potential safety hazards.

This is where the Undervoltage protection relay comes in. These relays ensure that equipment, big or small, doesn’t operate under voltage levels that could harm them. By doing so, they safeguard the equipment and prevent potential cascading failures that could stem from one malfunctioning component.

Apart from direct protection, UV relays also help in:

  • Energy Conservation: Devices operating under optimal conditions consume power more efficiently.
  • Cost Savings: Reduced device malfunctions mean fewer repair or replacement costs.
  • Operational Consistency: Ensures that devices provide consistent output.

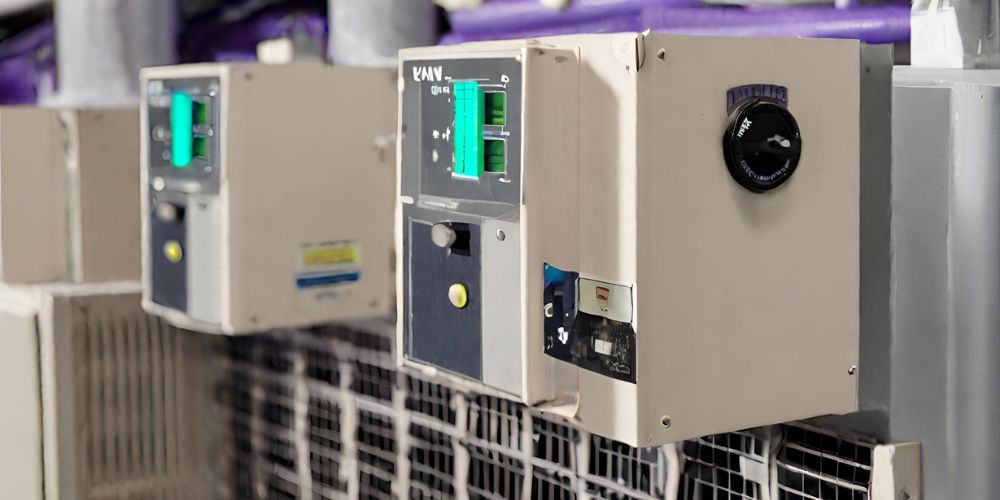

UV Relays in Air-conditioning Units

Air-conditioning units are no longer a luxury but a necessity in many parts of the world. Whether in a small residential unit or a large commercial HVAC system, consistent and stable power is crucial for efficient operation.

Air-conditioners consist of components like compressors, capacitors, fans, and electronic controls—all sensitive to voltage fluctuations. An undervoltage situation can cause compressors to overwork, capacitors to malfunction, and electronic controls to misbehave. This impacts efficiency and could lead to the entire unit breaking down.

Thus, per regulations, every air-conditioning unit/plant/equipment installed within a consumer installation must have a UV relay with an auto-reset timer. This not only ensures the longevity of the equipment but also guarantees optimal cooling performance.

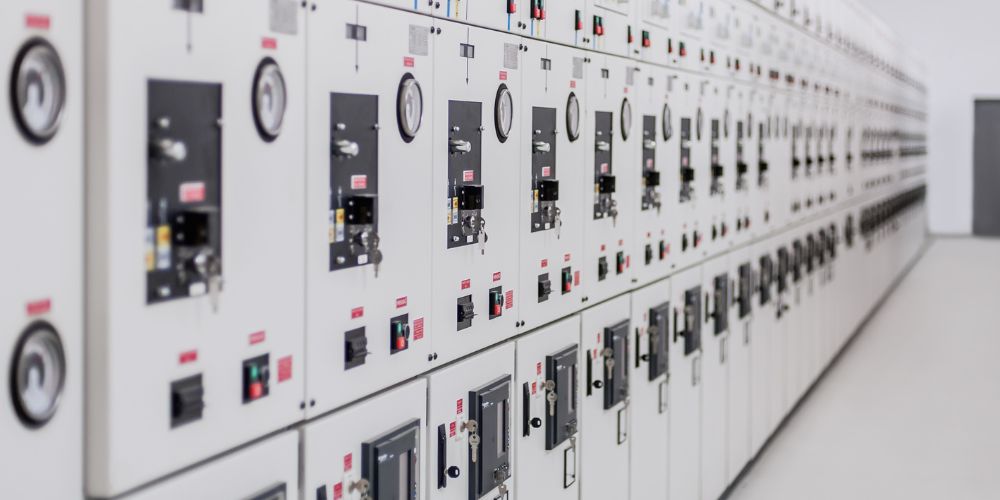

Specifications of Undervoltage Release Relay with Auto-reset Timer

The auto-reset timer in a UV relay adds an intelligent layer to the relay’s function. When an undervoltage situation occurs, the undervoltage trip relay disconnects the load, protecting the equipment. However, the auto-reset timer will attempt reconnection instead of needing manual intervention to reconnect after a set period.

Imagine a brief voltage dip due to external factors, say a grid fluctuation. Without an auto-reset, the air-conditioning unit would remain off until manually restarted—a clear inconvenience. But with an auto-reset timer, the relay waits, checks the voltage after the preset interval, and reconnects the system, ensuring minimal disruption if acceptable.

Features to consider in a UV relay with auto-reset:

Sensitivity Controls: Allows calibration to specific voltage thresholds.

Reset Interval Adjustability: Flexibility in setting the wait time before auto-reconnection.

Continuous Monitoring: Even after auto-reset, the relay keeps monitoring, ensuring protection is always on.

Fail-safes: Ensures that the relay doesn’t keep trying to reconnect indefinitely in persistent Undervoltage conditions.

Guidelines on Requirements of UV Relays

As outlined in the regulations (Section 8), in the Dubai Building code mandated by DEWA (Dubai Electricity and Water Authority), which serves as a comprehensive guide detailing the specific requirements and guidelines for UV relays. While the exact contents would need a direct reference, typically, such sections provide:

Installation Guidelines: Step-by-step procedures ensuring the UV relay is set up correctly.

Maintenance Protocols: Periodic checks, calibration procedures, and replacement timelines.

Testing Procedures: How to ascertain if the UV relay is functioning as intended.

Safety Protocols: What to do in case of relay failures, false alarms, or other malfunctions.

End-of-Life Procedures: Guidelines on safely disposing of or recycling old UV relays.

Regulatory Compliance: Details on certifications or standards the UV relays must adhere to.

By following section 8, consumers and businesses can ensure their UV relays function optimally, provide the necessary protection, and adhere to all regulatory requirements. Over and undervoltage protection relays ensure optimum safety of electrical systems.

Benefits and Limitations of UV Relays

Like any other device, UV relays come with their set of advantages and drawbacks.


Consistent Operation: UV relays guarantee optimal performance by ensuring equipment only operates in safe voltage ranges.

Preventative Maintenance: By catching undervoltage situations early, UV control relay can prevent more severe, expensive malfunctions later on.

Peace of Mind: Knowing a safety mechanism in place provides an added layer of security.

Invest in good quality overvoltage and undervoltage protection relay to avoid hazards.


Calibration Challenges: Ensuring the UV relay is set to the right voltage thresholds requires expertise. The timing range varies in different models, and getting a UVR with a delay timing of more than 30 seconds is very difficult.

False Alarms: If not calibrated correctly or malfunctioning, UV relays might activate even when unnecessary, causing disruptions.

Despite their limitations, the value that over and Undervoltage protection DC relay bring in terms of protection and safety makes them indispensable in modern electrical systems.

The Future of UV Relays

As we transition into a world increasingly dominated by sophisticated electronics, advanced automation, and an overarching reliance on consistent and stable power, the importance of protective devices like overvoltage and undervoltage relay remains paramount. However, the landscape of UV relays, like many other components in the electrical industry, is poised for evolutionary changes.

Integration with IoT and Smart Grids

With the rise of the Internet of Things (IoT) and smart grids, UV relays are expected to be more integrated, communicative, and intelligent. Future single phase undervoltage relay might disconnect the load during undervoltage conditions and communicate this event in real-time to central monitoring systems or even directly to service providers.

Advanced Diagnostics and Predictive Maintenance

UV relays of the future will likely have more advanced diagnostic capabilities. They could monitor patterns in voltage fluctuations and predict potential overvoltage Undervoltage relay scenarios before they occur. Combined with IoT, this feature can pave the way for predictive maintenance, allowing technicians or homeowners to address potential issues before they become problematic.

Compact and Energy-Efficient Designs

With the trend towards miniaturization in electronics, future UV relays may become even more compact without sacrificing efficiency or functionality. This will be particularly valuable in applications where space is at a premium.

Integration with Renewable Energy Systems

As renewable energy sources like solar and wind become more prevalent, the need for UV relays that work efficiently within these systems will grow. These energy sources can sometimes produce variable outputs, and UV relays will play a crucial role in ensuring that equipment remains protected during low-voltage conditions.

Enhanced User Interface and Control

Future UV relays might come with more user-friendly interfaces, allowing users to set thresholds, view system statuses, and even receive advice or recommendations directly from the device. These interfaces could be digitally accessible via smartphones or web platforms.

Machine Learning and AI Integration

Incorporating machine learning and AI could enable UV relays to adapt to specific usage patterns and environments. This adaptability can improve the relay’s accuracy, reducing false triggers and optimizing protection based on system needs.

Increased Affordability

As technology advances and production scales up, there’s potential for high-tech UV relays to become more affordable. This would make advanced protection accessible to a broader range of users, from homeowners to small businesses.

Frequently Asked Questions:

What is the main function of an undervoltage (UV) relay?

Answer: An undervoltage relay is designed to monitor the voltage in an electrical system. Suppose the voltage drops below a predefined level. In that case, the UV relay takes action, typically disconnecting the system or device from the power source to prevent damage from the low voltage condition.

How does an undervoltage condition harm electrical devices?

Answer: Undervoltage can cause electrical devices to operate inefficiently, leading to overheating, increased wear and tear, and potential malfunction. Over time, this can shorten the device’s lifespan and increase the risk of failures.

Why is a UV relay with an auto-reset timer particularly useful?

Answer: A UV relay with an auto-reset timer automatically attempts to reconnect the system after a preset period. This ensures that if the undervoltage condition is temporary, the system can restore itself without manual intervention, minimizing disruption.

Are UV relays required for all electrical devices?

Answer: While UV relays benefit many devices, they are not mandatory for all. However, specific regulations, such as the one mentioned for air-conditioning units, mandate the inclusion of UV relays for added protection.

How often should UV relays be checked or maintained?

Answer: Maintenance frequency can vary based on the manufacturer’s recommendations and the operating environment. However, checking and calibrating UV relays annually or after any significant electrical event is generally a good practice.

What is the difference between an undervoltage and overvoltage relay?

Answer: An undervoltage relay monitors voltage levels falling below a set threshold, while an overvoltage relay monitors voltage levels exceeding a certain limit. Both are designed to protect electrical equipment from harmful voltage conditions.

Can I install a UV relay in my existing air-conditioning system?

Answer: Yes, UV relays can usually be retrofitted into existing systems. It’s recommended to consult with an electrical expert or the air-conditioning manufacturer for guidance on the best way to integrate a UV relay.

Are there alternatives to UV relays for voltage protection?

Answer: Yes, there are other devices, such as voltage stabilizers and surge protectors, which can offer some degree of voltage protection. However, UV relays specifically cater to Undervoltage conditions and provide unique benefits.


Undervoltage relays stand as a testament to how simple devices can offer critical protection in the vast and intricate world of electrical safety. Their role in safeguarding expensive and crucial equipment, especially in systems like air-conditioning units, is vital and undeniable. By understanding their function, adhering to regulations, and ensuring their proper maintenance, we can significantly enhance the safety and efficiency of our electrical environments.

As we continue to rely heavily on electrical systems, the importance of devices like UV relays will only grow, making them an essential component in our electrified world.
