Current Transducer vs Transformer: Key Differences Explained

Understanding the disparities between current transducers and transformers is not just an academic exercise, but a practical necessity in electrical engineering. These devices, despite their similar names, serve distinct functions, and discerning between them is crucial for accurate measurements and efficient electrical systems. It’s common for individuals to interchangeably use the terms “current transducer” and “current transformer.” However, this confusion can lead to a better understanding of electrical applications. To shed light on this matter, let’s embark on a detailed comparison between the two devices, exploring their unique characteristics and functionalities, and how this understanding can directly impact your work in electrical engineering.

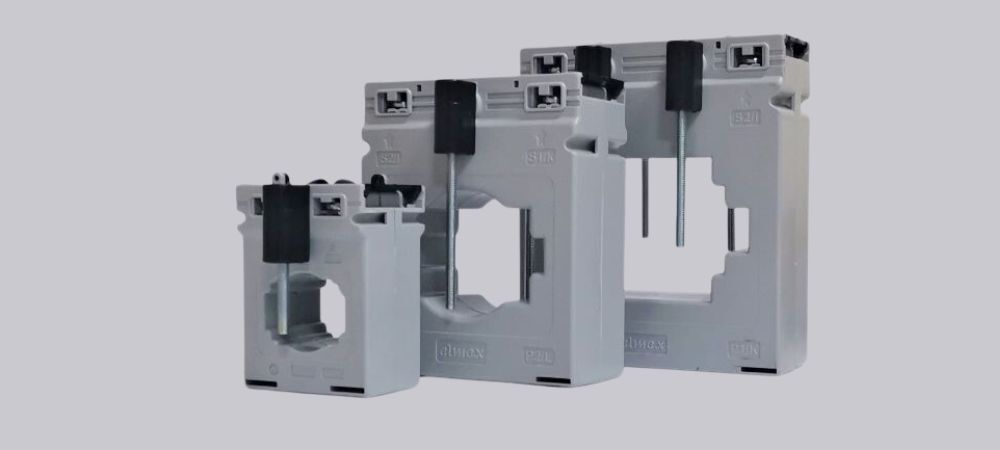

Current Transformer Types:

Current transformers (CTs) are indispensable electrical systems for measuring current and providing electrical isolation. They come in a wide array of types, each tailored to specific applications. Here, we will explore some of the most common types of current transformers:

1. Bar-type CTs: These are the most basic and commonly used current transformers. They consist of a primary winding encircling the conductor through which the current flows and a secondary winding. Bar-type CTs are typically used for metering, protection, and control applications in power systems.
2. Wound CTs: Also known as window-type current transformers, wound CTs feature a split-core design, allowing them to be installed without disconnecting the primary conductor. They are often used in retrofit applications or in situations where it’s impractical to disconnect the primary conductor.
3. Bushing CTs: These current transformers are designed to be installed directly onto bushings of high-voltage equipment, such as transformers or circuit breakers. Bushing CTs provide accurate, current monitoring and protection measurements in high-voltage applications.
4. Miniature CTs: As the name suggests, miniature CTs are compact and lightweight, making them suitable for applications with limited space or requiring portability. They are commonly used in electronic and low-power systems for current measurement and control.
5. Rogowski Coil CTs: Unlike traditional CTs with iron cores, Rogowski coil CTs utilize a flexible coil of wire wound around the conductor to measure current. They offer advantages such as wide bandwidth, high accuracy, and flexible installation, making them ideal for high-frequency and transient current measurements in power quality monitoring and instrumentation applications.
6. High Accuracy CTs: These current transformers are designed to provide highly accurate current measurements, typically with accuracy classes ranging from 0.1 to 0.5. High-accuracy CTs are used in precision measurement and testing applications where precise current measurement is critical.

Residual Current Transformers (RCTs):

RCTs are not just specialized current transformers but crucial safety devices that detect and measure residual currents in electrical systems. They are commonly employed in ground fault detection and protection systems, playing a vital role in ensuring safety and preventing electrical hazards. This underscores the importance of understanding the differences between current transformers and transducers, as they directly impact electrical systems’ safety. Each type of current transformer offers unique features and advantages, allowing for a wide range of applications and flexibility in meeting the specific requirements of different electrical applications. Choosing the correct type of current transformer is not just about understanding its technical specifications, but also about understanding the unique needs of your project. This versatility is a testament to the wide range of possibilities in electrical engineering.

How do current transducers work?

Current transducers are devices used to measure electrical current and convert it into an output signal proportional to the input current. They employ various principles and technologies to achieve this function, including the Hall effect, Rogowski coils, and fluxgate methods. Here’s a more in-depth look at how some common types of current transducers operate:

1. Hall Effect Transducers: Hall effect current transducers rely on the Hall effect, which describes the generation of a voltage perpendicular to the current flow direction and a magnetic field. In a Hall effect transducer, a semiconductor material (typically a thin strip or wafer) is subjected to both the current to be measured and a magnetic field perpendicular to the current flow. As the current flows through the semiconductor material, it creates a potential difference (voltage) across the material due to the Hall effect. This voltage is then amplified and conditioned to provide an output signal proportional to the input current.
2. Rogowski Coil Transducers: Rogowski coil current transducers utilize a flexible coil of wire wound around the conductor through which the current flows. When an alternating current passes through the conductor, it induces a voltage in the coil according to Faraday’s law of electromagnetic induction. The induced voltage in the coil is proportional to the current rate of change with respect to time (di/dt). By integrating the output voltage of the Rogowski coil over time, the original current waveform can be reconstructed, providing an accurate measurement of the input current.
3. Fluxgate Transducers: Fluxgate current transducers utilize the principle of magnetic flux modulation to measure current. A magnetic core (typically made of a high-permeability material) is subjected to the current to be measured in a fluxgate transducer. An excitation coil drives the core into saturation, and a sense coil detects the changes in magnetic flux induced by the input current. By measuring the changes in magnetic flux, the transducer can determine the input current and provide an output signal proportional to it.

These are just a few examples of how current transducers work. Depending on the specific technology used, current transducers can offer advantages such as high accuracy, wide bandwidth, and galvanic isolation, making them suitable for various applications in industries ranging from power monitoring and control to renewable energy and industrial automation.

Difference between current transducer and current transformer:

Working Principles: Current transformers operate on electromagnetic induction, utilizing a primary winding to induce a current in a secondary winding proportional to the primary current. In contrast, current transducers employ technologies like the Hall effect, Rogowski coils, and fluxgate to directly convert current into an output signal.

Measurement Range and Applications:

Electrical transformers typically handle high currents found in power distribution systems, while current transducers cater to a broader range of currents, including low and high-frequency signals. Current transformers are commonly used in power monitoring and protection systems, whereas current transducers find applications in precision instrumentation, motor control, and renewable energy systems.

Accuracy & Linearity:

Current transformers generally offer high accuracy and linearity within their specified range. On the other hand, the accuracy of current transducers can vary depending on the technology used, but they often provide excellent linearity and accuracy over a wide dynamic range.

Size and Form Factor:

Electrical transformers tend to be larger and bulkier due to the physical construction required for electromagnetic induction. In contrast, current transducers are often more compact and feature versatile designs, allowing for easier integration into various systems.

Isolation:

Both devices provide galvanic isolation, crucial for safety and preventing ground loops in electrical circuits. Current transformers achieve isolation through electromagnetic induction, while current transducers incorporate isolation components within their circuitry.

Cost and Installation:

Current transformers are generally more cost-effective and accessible due to their standardized designs and straightforward installation procedures. However, current transducers may require more specialized installation and calibration, leading to higher initial costs but potentially offering long-term benefits in specific applications.

In essence, while both current transducers and transformers serve the fundamental purpose of measuring electrical currents, their differences in working principles, measurement range, accuracy, size, and installation requirements make each device uniquely suited for different applications within the realm of electrical engineering.

Working Principles:

Electrical transformers rely on the principle of electromagnetic induction. They consist of a primary winding through which the current to be measured passes, inducing a magnetic field. This magnetic field, in turn, causes a current in a secondary winding proportional to the primary current, which can then be measured or utilized for various purposes.

In contrast, current transducer applications utilize alternative technologies such as Hall effect, Rogowski coils, or fluxgate methods to convert current into an output signal directly. For instance, Hall effect current transducers rely on the Hall effect phenomenon, where a voltage is generated perpendicular to the current flow direction and a magnetic field. This voltage is then proportional to the current passing through the transducer.

Measurement Range and Applications:

Current transformers, such as power distribution systems, are typically used in high-current applications. They can handle large currents, ranging from hundreds to thousands of amperes, making them suitable for measuring currents in heavy machinery, power grids, and industrial equipment.

On the other hand, current transducer applications offer a broader range of current measurement capabilities. They can accurately measure low and high-frequency currents, making them versatile in various applications such as precision instrumentation, motor control, renewable energy systems, and electronic circuitry where precise current measurements are required.

Accuracy & Linearity:

Current transformers are known for their high accuracy and linearity within their specified range. They provide reliable measurements with minimal distortion, making them ideal for applications where precise current measurement is critical, such as power monitoring and protection systems.

While the accuracy of current transducers can vary depending on the technology used, many modern transducers offer excellent linearity and accuracy over a wide dynamic range. They can maintain precise measurements even in fluctuating current conditions, ensuring reliable operation in diverse applications.

Size and Form Factor:

Current transformers are typically larger and bulkier due to their construction requirements for electromagnetic induction. They consist of a core made of ferromagnetic material, around which primary and secondary windings are wound. This design contributes to their larger size and heavier weight, making them suitable for applications where space is a manageable factor.

In contrast, current transducers boast compact and versatile designs. They often come in smaller packages and can be integrated into tight spaces or mounted directly onto circuit boards. This compact form factor allows for greater flexibility in installation and placement, making them ideal for applications where space-saving is essential.

Isolation:

Galvanic isolation is crucial in electrical systems to ensure safety and prevent ground loops, which can lead to equipment damage or electric shock hazards. Both current transformers and transducers provide galvanic isolation, albeit through different mechanisms.

Current transformers achieve isolation through electromagnetic induction. The primary and secondary windings are electrically insulated from each other, preventing direct electrical contact between the primary and secondary circuits while allowing for the transfer of current through the magnetic field.

Current transducers, such as optical or magnetic isolators, incorporate isolation components within their circuitry. These components physically separate the input and output circuits, ensuring galvanic isolation while allowing for accurate, current measurement and signal transmission.

Cost and Installation:

Current transformer applications are generally more cost-effective than current transducers. They have standardized designs and manufacturing processes, resulting in lower production costs. Additionally, current transformers are relatively easy to install, typically requiring simple mounting and connection procedures.

On the other hand, current transducers may have higher initial costs due to their advanced technologies and compact designs. They may also require more specialized installation and calibration procedures, potentially adding to the overall installation costs. However, their versatility and space-saving designs may offer long-term benefits in specific applications, offsetting the initial investment.

Here’s the deal: understanding the differences between current transducers and transformers is crucial for navigating the complexities of electrical systems. How do these devices stack up against each other regarding size, isolation, and cost? To better understand their capabilities and applications, let’s dive deeper into these aspects.

Conclusion:

In conclusion, the distinctions between current transducers and transformers are pivotal in selecting the suitable device for your electrical needs. Whether it’s the robust construction and high accuracy of current transformers or the compact versatility of current transducers, each device offers unique advantages depending on the specific requirements of your application. Choosing the suitable device tailored to your needs is paramount for ensuring optimal performance and safety in electrical systems. So, before deciding, consider factors such as measurement range, accuracy, size, isolation, and installation requirements.

Ready to explore high-quality electrical devices? Visit Goswitch Gear and discover a wide range of products designed to meet your needs with precision and reliability.

Current transformers rely on electromagnetic induction and are suited for high-current applications, providing accurate and linear measurements within their range. Current transducers utilize various technologies to directly convert current into an output signal, offering versatility in measuring currents across a broader range and finding applications in precision instrumentation, motor control, and renewable energy systems.
