Relay vs Fuse: Understanding Their Roles in Electrical Systems
Relay vs Fuse is a debate that often arises when discussing overcurrent protection and circuit control. Although both relays and fuses play important roles in protecting electrical devices, they work on different principles and are used for various purposes.
This comprehensive guide aims to establish the difference between relays and fuses. We’ll explore how both operate and function and examine their different types and advantages.

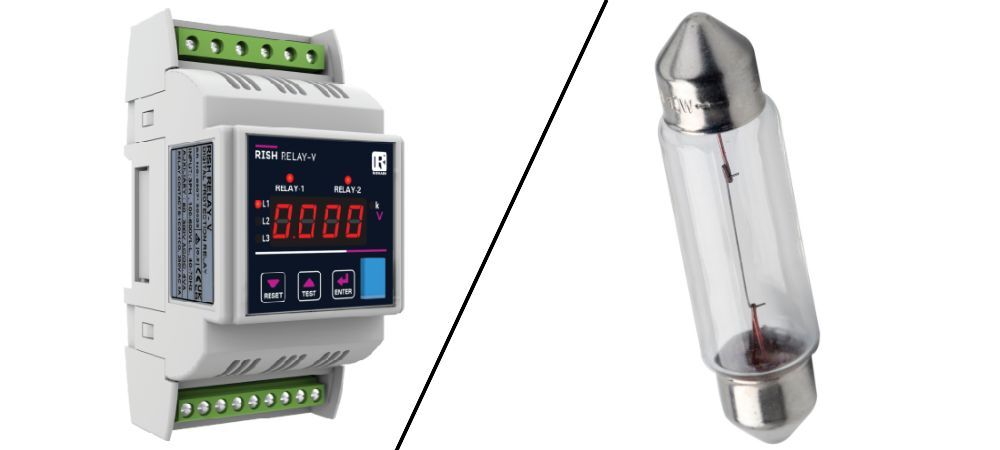

Relay vs Fuse: Definition and Function
![image 7](https://cdn-clcnf.nitrocdn.com/ldiOJmwmSfdnKHEbFhwPzydHRWzXfgiC/assets/images/optimized/rev-a7db7b2/goswitchgear.com/wp-content/uploads/2024/05/image-7.jpeg)
What is a Relay?
A relay is an electromechanical device that works as a switch. It is controlled by a separate electrical signal. When supplied with electricity, it has a coil that generates an electrical field. This electrical field moves a part of the device called the armature, which either establishes or interrupts the electrical connection. Relays are used for many purposes, including controlling motor circuits, managing lighting systems, and much more, making them an essential part of electrical circuits.
What is a Fuse?
Now, let’s turn our attention to fuses. These devices ensure circuit protection and safety. With a metal alloy conductor inside a protective casing, they act as a barrier against overcurrent conditions that could lead to damage or even fire. When the current exceeds a certain limit, the alloy melts, breaking the circuit and preventing potential hazards. Fuses are an essential part of electrical systems and crucial in ensuring safety and preventing failures.
Fuse vs Relay: Operation
How Does a Relay Work?
A relay is like a switch that connects or disconnects two circuits. Its coil creates an electromagnetic force when a low-voltage current passes through it. This force pulls a metal lever, which makes or breaks a connection.
How Does a Fuse Work?
Let’s now try and understand how a fuse works. A fuse is a safety device; it interrupts the flow of electricity in a circuit when the current reaches dangerous levels. The fuse wire is made of metal with a low melting point. When the current passing through the wire becomes too high, the wire heats up and melts, thus breaking the circuit and interrupting the flow of electricity, saving your precious appliances.
Types and Varieties:
There are many types of Relays and fuses. Understanding how they work is important for making the right choice.

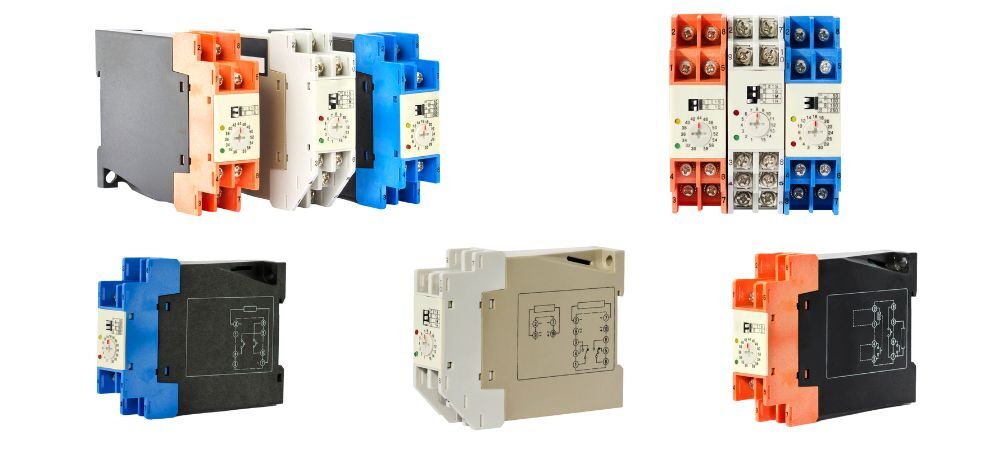

Types of Relays:
![image 9](https://cdn-clcnf.nitrocdn.com/ldiOJmwmSfdnKHEbFhwPzydHRWzXfgiC/assets/images/optimized/rev-a7db7b2/goswitchgear.com/wp-content/uploads/2024/05/image-9.jpeg)
Understanding the types and uses of relays is essential before designing your electric control system. If you’re looking for a relay, visit Go Switchgear and check out their many types.
- General Purpose Relays:
General-purpose relays can control large loads in the devices they are found in through low-power signals supplied to their control circuits. They are used in control systems and production sites where a small signal needs to control multiple circuits.
Let’s explore different types of general-purpose relays.
- Control Panel Relays:
Control relays have 1 to 4 poles, and they are suitable for I/O operations and relay sequences.
- Built-in Relays:
As their name suggests, these types of relays come built into devices. They can handle currents of up to 40 A.
- Work saving relays:
These relays simplify work in programmable controllers for I/O operations by reducing complexity and saving space. Now you know why they are called work-saving relays.
- Voltage Protection Relays:
Voltage protection relays monitor and protect electrical equipment from very low voltage.
Let’s take a look at the three types of voltage protection relays:
- Under Voltage Relay:
When the voltage drops too low, machinery might not have enough power to work, which can damage it. For this, an under-voltage relay monitors the voltage levels and reacts when they are too low. The 3 Phase UVR Undervoltage Relay by Vertitek is a great under-voltage protection relay with many features, like the settable time delay and LED light that shows if the status is faulty or healthy.
- Over Voltage Relay:
Sometimes, faults or defects in the supply voltage can result in high voltage from supply to load, damaging machines. An over-voltage protection relay prevents this damage by reacting to such abnormal voltage levels. You can use an Overvoltage Arrester SPD Type Voltage Protection Relay that provides over-voltage protection functions and, on top of that, has state-of-the-art features like a thermal disconnector, backup fuse, shock resistance, capability, and optional remote contact.
- Under and Over Voltage Relays:
The Hybrid Relay is a relay that can save your machines from damage caused by both low and high voltage. This type of relay can perform functions of both under voltage relay and over voltage relay. The adjustment knob on these relays helps you ensure that the voltage in the circuit is within a specific range. The UVR/OVR 3 Phase Voltage Protection Relay by Rishabh Instruments is an excellent RoHS-certified relay that can help you protect your machines.
- Control Relay:
Sometimes, different voltage levels need to be isolated from each other to run machines without digital controllers; for this, a control relay is your go-to option.
Let’s learn more about different types of control relays.
- Single-Pole, Single-Throw (SPST) Relay:
A Single-pole, Single-Throw relay is used for basic control functions. In this, a coil of copper wire wrapped around an iron core creates a magnetic field that controls the switch. The relay has normally open (NO) contacts, which means it is open (off) when the coil is not powered.
- Single-Pole, Double-Throw (SPDT) Relay:
Such a relay also works on the same principles as a Single-Pole, Single-Throw Relay; the difference is that it allows switching between two circuits depending on coil energization. Such relays are commonly used in automotive, telecommunication, Industrial, and home automation. Check out the Water Level Controller WLC-22 1 Relay and Humidity Controller MHC-5012 relay to automate your home appliances.
- Double-Pole, Double-Throw (DPDT) Relay:
A Double-Pole Double Throw relay, also known as the 2-pole relay, is very interesting. It provides flexibility in controlling electronic projects, such as changing the direction of a motor or choosing between two loads or supplies.

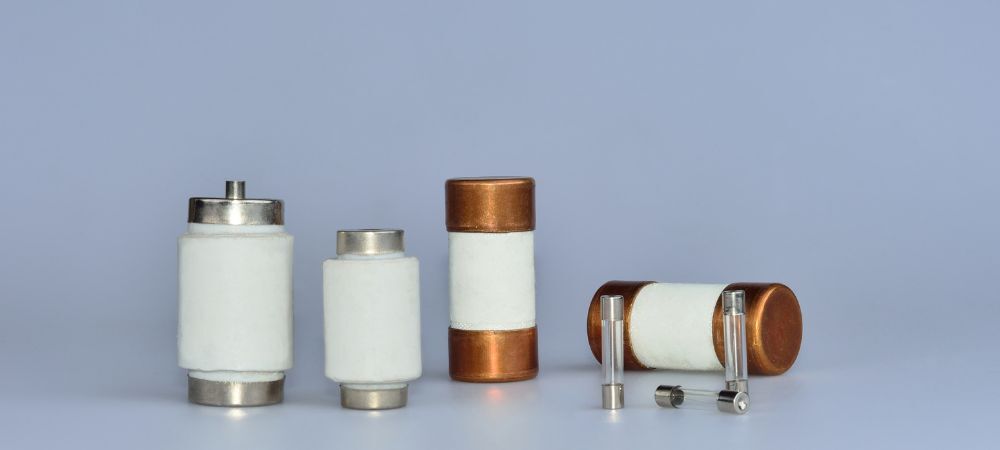

Types of Fuses:
![image 6](https://cdn-clcnf.nitrocdn.com/ldiOJmwmSfdnKHEbFhwPzydHRWzXfgiC/assets/images/optimized/rev-a7db7b2/goswitchgear.com/wp-content/uploads/2024/05/image-6.jpeg)
At Go Switchgear, you can find fuses suited to your needs; let’s have a look at the different types of fuses and how they work.
- Cartridge Fuse:
A cartridge fuse, also known as a bottle fuse, like the Bottle Fuse DIII Eutroniks, is a reliable and cost-effective fuse designed to provide precise protection to electric circuits. Such fuses are enclosed in a glass or ceramic cylindrical body. The fuse element is supposed to blow or melt when a high-voltage current passes through it.
- DC Fuse and Holder:
The DC fuse and holder are components of a circuit that protect it from high-voltage situations. While the fuse is the actual component that protects you, the holder is the device that holds the fuse in position. This DC Fuse Holder by Elmex Controls is one of the best fuse holders.
- RT 18-32 Fuse and Holder:
The Fuse Link 32A RRE Cylindrical Fuse is a type of fuse and holder duo that helps protect your machines from overcurrent. The “RT” indicates the fuse’s model, and “18-32” indicates that it is suitable for systems with a current range between 18 and 32 amperes.
Fuse vs Relay: Comparison
Fuse | Relay |
Fuses prevent electric circuits from being damaged by melting the metal wire when excessive current passes through it. | Relays prevent electric circuits from damage by mechanically opening or closing the switch contacts when high or low voltage passes through them. |
A fuse is Simple, reliable, and inexpensive. | A relay is relatively Complex and expensive. |
It can be used only once and has to be replaced after it blows. | It can be used multiple times and only requires a reset. |
Used in electric systems to protect from overloads and short circuits. | Used in industries to control high-current devices like motors, lights, etc. |
Advantages and Limitations:
Relays:
Advantages
- Relays can control high-voltage circuits with low-voltage currents, thus making them suitable for motors, lights, and other high-voltage machines.
- They isolate high- and low-voltage currents, making a circuit safer.
- Relays allow automation.
- High-quality relays, like the ones found at Go Switchgear, are durable and reliable.
Limitations
- With time, relay contacts can wear out due to movement, which can lead to the failure of the relay.
- They require regular inspection.
- High-cost relays can be expensive.
Fuses:
Advantages:
- Fuses are cost-effective.
- Fuses are simple and easy to use.
- Fuses prevent short circuits.
- They require zero maintenance
Limitation:
- They are one-time use only and need to be replaced once they blow up.

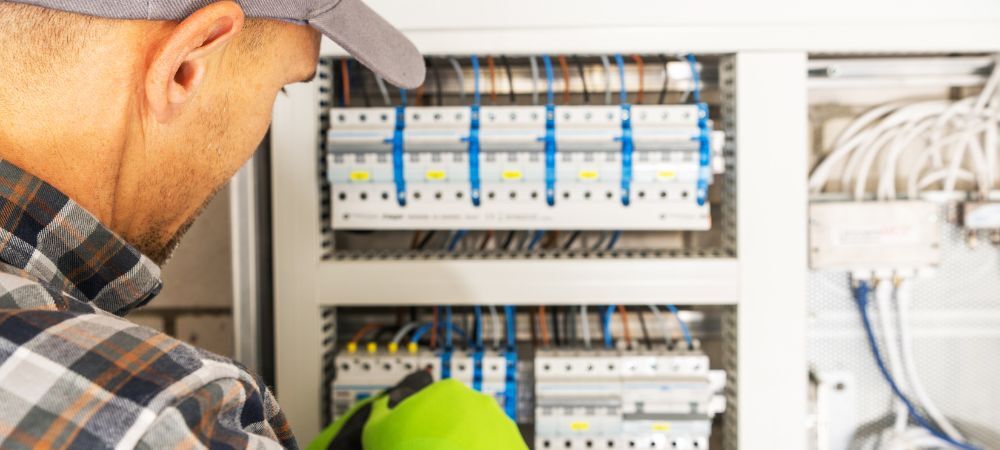

Real World Applications:
![image 8](https://cdn-clcnf.nitrocdn.com/ldiOJmwmSfdnKHEbFhwPzydHRWzXfgiC/assets/images/optimized/rev-a7db7b2/goswitchgear.com/wp-content/uploads/2024/05/image-8.jpeg)
Relays:
Let’s see what are relays used for in the real world:
- In automotive systems, relays are used in headlights, starters, wipers, and fuel pumps.
- In Industries, relays are used in Motors, conveyor belts, and heating and cooling systems.
- Home appliances like refrigerators, washing machines, and dishwashers also have Relays.
Fuses:
Let’s see what is a fuse used for in day-to-day life:
- In residential, commercial, and industrial buildings, fuses are used in the electricity distribution box.
- In cars, fuses are used to protect electric circuits of lights, AC, radios, etc.
- Electric appliances like microwaves and televisions have fuses that protect their circuit boards.
Conclusion:
Relays and Fuses are both important parts of an electric circuit. While relays act like a switch that controls machines, fuses protect the circuit from excessive current. Now that you know the difference between the two, you can choose the right one for the right job and keep your homes and offices safe.
Are you looking for Fuse and Relays for your electrical projects? Go Switchgear offers a wide range of options.
FAQs:
Q: What is the difference between Relays and Fuse?
A: A relay is a device that acts like a switch to control an electric circuit, while a fuse is a safety device that interrupts the current flow in the circuit.
Q: Why are fuses important for an electric circuit?
A: Fuse is important because it protects the appliances and machines connected to the circuit from excessive current that could cause damage or hazards. When the current in the circuit exceeds, the fuse melts and breaks the circuit.
Q: What types of relays are available for different applications?
A: The different types of relays are general-purpose relays, Voltage-Protection relays, and Control relays.
