Understanding RCCB, ELCB & RCBO Differences: A Detailed Guide

Let’s explore the differences and applications of each type of electrical safety device: ELCB, RCCB, and RCBO.

ELCB (Earth Leakage Circuit Breaker)

Definition and Operation: An ELCB, or Earth Leakage Circuit Breaker, is an electrical safety device that detects and interrupts small leakage currents. These currents typically occur when electrical insulation fails, or an appliance or circuit is faulty, potentially causing electric shocks or fire hazards.

Operation:

• ELCBs operate by sensing the current difference between the live (phase) and neutral conductors.
• When a leakage current flows to the earth (ground), causing an imbalance, the ELCB detects this and trips to disconnect the circuit.
• By cutting off the power supply swiftly upon detecting such leakage, ELCBs help prevent severe electrical accidents.

Applications:

• ELCBs were widely used in older electrical installations to protect against earth faults.
• They are suitable for circuits where the risk of earth leakage is significant but do not provide protection against other types of faults.

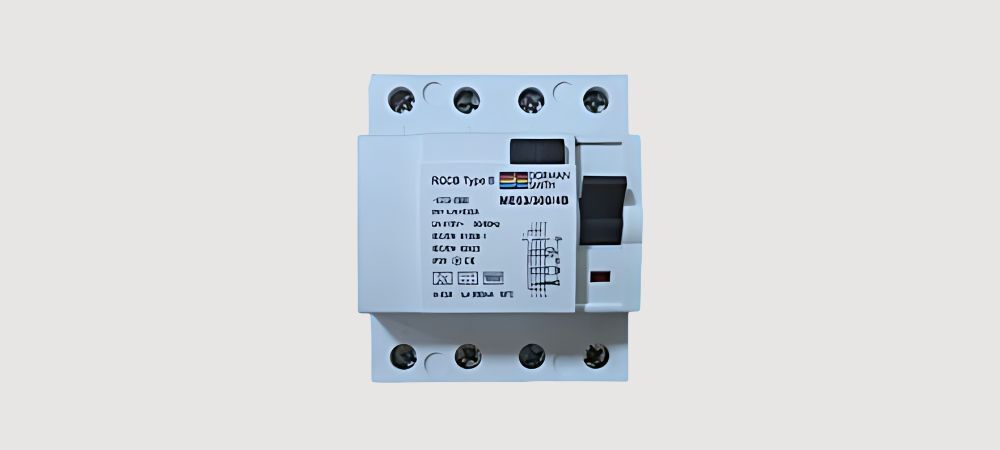

RCCB (Residual Current Circuit Breaker)

Definition and Operation:

RCCB, also known as an RCD (Residual Current Device), is an advanced version of the ELCB with broader detection capabilities.

Operation:

• RCCBs work by continuously monitoring the balance between the live and neutral currents.
• If an imbalance is detected, indicating leakage to earth or through a person, the RCCB rapidly disconnects the circuit.
• This capability makes RCCBs more sensitive and effective in detecting a more comprehensive range of faults than ELCBs.

Applications:

• RCCBs are commonly used in modern electrical installations where higher levels of safety are required.
• They are essential for protecting against direct and indirect contact with live parts, thereby minimizing the risk of electric shocks.

RCBO (Residual Current Circuit Breaker with Overcurrent Protection)

Definition and Operation:

RCBO combines the functionalities of an RCCB (RCD) with those of a traditional circuit breaker.

Operation:

• RCBOs integrate the capabilities of RCCBs to detect residual currents (leakage) with overcurrent protection features.
• They monitor earth leakage and overcurrent conditions, such as short circuits and overload currents.
• If a fault or an excessive current is detected, the RCBO trips to disconnect the circuit, offering comprehensive protection.

Applications:

• RCBOs are highly versatile and suitable for a wide range of residential, commercial, and industrial applications.
• They are ideal for circuits where residual current and overcurrent protection are necessary to ensure safety and prevent damage to electrical equipment.

Key Differences Recap:

• Functionality: ELCBs detect earth leakage currents only, RCCBs detect both earth leakage and leakage through a person, while RCBOs combine residual current protection with overcurrent protection.
• Safety: RCCBs and RCBOs offer superior safety by detecting more faults than ELCBs.
• Applications: ELCBs are more suitable for older installations or specific applications with only essential earth leakage protection. RCCBs and RCBOs are preferred in modern installations for comprehensive protection against electrical hazards.

In summary, while ELCBs served a crucial role in older electrical systems, RCCBs and RCBOs have emerged as more advanced and versatile solutions, providing enhanced protection against a broader range of electrical faults and ensuring higher levels of electrical safety in contemporary installations.

Differences:

The differences between ELCB, RCCB, and RCBO involve grasping their unique functionalities as electrical safety devices or circuit breakers.

ELCB (Earth Leakage Circuit Breaker):

ELCB is primarily designed to detect small leakage currents typically caused by faulty insulation. It detects the imbalance between the phase conductor and the neutral conductor. When such an imbalance is detected, indicating leakage to earth, the ELCB trips to disconnect the circuit, thereby preventing electric shocks and fire hazards.

RCCB (Residual Current Circuit Breaker):

RCCB, also known as RCD (Residual Current Device), is an enhanced version of the ELCB. Unlike the ELCB, which detects only earth leakage, the RCCB can detect leakage to earth and any other unintended path, such as through a person. This is achieved by comparing the current flowing in the live conductor with that returning in the neutral conductor. If an imbalance is detected, indicating leakage, the RCCB trips to cut off the power supply swiftly, thus offering superior protection against electric shocks.

RCBO (Residual Current Circuit Breaker with Overcurrent Protection):

The RCBO combines the functions of both the RCCB (or RCD) and a traditional circuit breaker (overcurrent protection). It integrates the features of an RCCB to detect leakage currents and trip the circuit in case of imbalance, along with the capabilities of a circuit breaker to protect against overloads and short circuits. This dual-functionality makes the RCBO an advanced safety device suitable for comprehensive protection in modern electrical installations.

Key Differences:

• Functionality: ELCB detects earth leakage currents, while RCCB detects both earth leakage and leakage to other paths (like through a person). RCBO combines RCCB functionality with overcurrent protection.
• Safety: RCCB offers higher safety by detecting more faults than ELCB.
• Applications: ELCBs are typically used in older installations, while RCCBs and RCBOs are more common in modern electrical systems due to their enhanced protection capabilities.
• Effectiveness: RCCBs and RCBOs are generally considered better for personal and fire protection due to their broader detection capabilities.

Conclusion:

Choosing between ELCB, RCCB, and RCBO depends on the specific requirements of the electrical installation. While ELCBs were once standard, RCCBs and RCBOs, have become preferred due to their advanced safety features and broader applicability in preventing electric shocks and ensuring overall electrical safety.

FAQs

What is the difference between ELCB, RCCB, and RCBO?

ELCB (Earth Leakage Circuit Breaker):

• Functionality: Detects earth leakage currents by comparing the current in the live conductor with that in the neutral conductor.
• Protection: Provides essential protection against earth faults but does not detect leakage through a person or other unintended paths.
• Application: Common in older installations where simple earth leakage protection is sufficient.

RCCB (Residual Current Circuit Breaker):

• Functionality: Detects both earth leakage currents and leakage through a person or unintended paths.
• Protection: Offers enhanced protection against electric shocks by quickly disconnecting the circuit upon detecting a fault.
• Application: Widely used in modern installations for higher levels of safety against various types of faults.

RCBO (Residual Current Circuit Breaker with Overcurrent Protection):

• Functionality: Combines the features of an RCCB with overcurrent protection capabilities.
• Protection: This system monitors both residual currents (leakage) and overcurrent conditions (short circuits, overloads) to provide comprehensive protection.
• Application: Ideal for circuits requiring both residual current protection and protection against overcurrents, suitable for residential, commercial, and industrial applications.

ELCB vs RCCB vs RCBO

• ELCB is essential and suitable for older installations where only earth leakage protection is needed.
• RCCB provides broader protection by detecting various fault currents, making it more effective in preventing electric shocks.
• RCBO offers the highest level of protection as it combines both residual current and overcurrent protection, which is suitable for applications where comprehensive safety is essential.

The choice depends on the specific requirements of the electrical installation, with RCCB and RCBO generally preferred for modern installations due to their advanced safety features.

How do ELCB, RCCB, and RCBO prevent electric shocks?

• ELCB interrupts the circuit upon detecting an imbalance between the live and neutral currents, indicating earth leakage.
• RCCB monitors for residual currents, including leakage through a person or unintended paths, tripping to disconnect the circuit immediately.
• RCBO provides dual protection by combining residual current detection with overcurrent protection, ensuring swift disconnection in case of faults.

These devices prevent electric shocks by cutting off power swiftly upon detecting abnormal currents, thereby minimizing the risk of injury or damage.

Can ELCB, RCCB, or RCBO be used together in a circuit?

• ELCB and RCCB are generally not recommended for use together in the same circuit as they may interfere with each other’s operation.
• RCCB and RCBO can be used together in a circuit, with RCBO offering enhanced protection by combining residual current and overcurrent protection.

Careful consideration should be given to the specific requirements and standards applicable to the installation to ensure compatibility and optimal safety.

How often should ELCB, RCCB, or RCBO be tested?

• Testing frequency depends on local regulations and manufacturer recommendations.
• Generally, ELCB, RCCB, and RCBO should be tested periodically to ensure they operate correctly in case of a fault.
• Testing typically involves pressing the test button to simulate a fault and verify proper tripping and disconnection of the circuit.

Regular testing helps maintain the effectiveness of these devices in protecting against electrical hazards.

These FAQs aim to clarify common queries about ELCB, RCCB, and RCBO, helping users understand their differences, applications, and importance in ensuring electrical safety.
