Mechanical vs Digital Timer: Choosing the Right Timer Relay for Automation

Quick Summary

• Mechanical timers are simple, durable, and great for rugged environments.
• Digital timers offer precision, flexibility, and advanced features.
• Whether you need basic timing or complex automation control, this guide helps you decide which type of timer best fits your application, budget, and working conditions.

In today’s automated world, timer relays play a crucial role in managing systems efficiently. These are extensively being used in manufacturing, industrial machinery, home automation, or HVAC systems. Timer relays control the timing of operations by delaying, initiating, or ending a process after a set time interval. But with technology advancing so quickly, a common question being faced is: Should you go with a mechanical timer or a digital timer?

This isn’t just a battle of digital timer vs mechanical timer—it’s about choosing the right fit for your application. Whether you’re an automation engineer, a maintenance technician, or just someone trying to understand how to set up your equipment more effectively, this guide will help you explore everything you need to know.

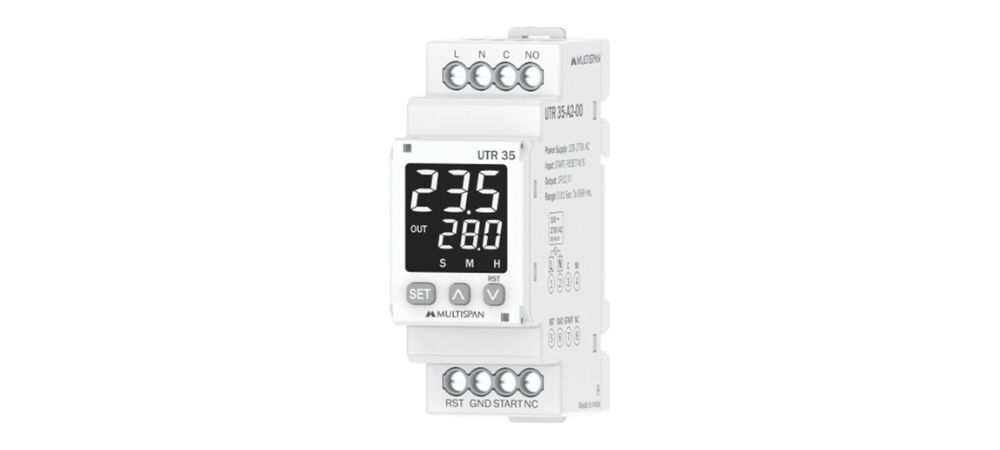

What is a Timer Relay?

Relay Timers for Machines is a switching device that opens or closes a circuit after a predetermined amount of time. It’s commonly used in automation to delay the activation of machinery, start a sequence, or control how long something runs.

These timers come in two major types:

• Mechanical Timer Relay

• Digital Timer Relay


The Timer Relay Applications for each have its own design, functionality, and advantages, depending on where and how you plan to use it.

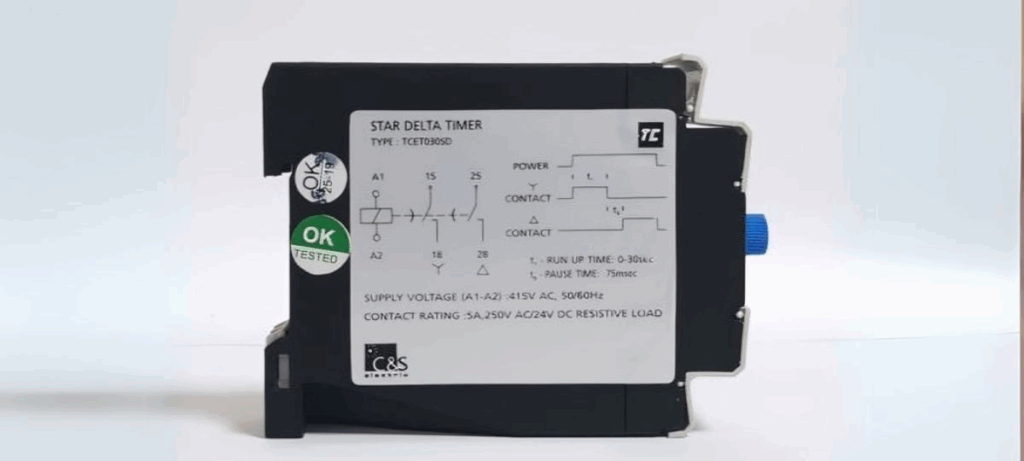

Mechanical Timer Relays

Mechanical Timer Relay are the traditional version. They’ve been around for decades and are known for their simplicity, durability, and straightforward design.

How Do Mechanical Timer Relays Work?

Electromechanical timers use a motor, gears, and cams to control the timing cycle. When powered, the motor drives the internal mechanism, and as the gears turn, they eventually actuate a switch to open or close a contact at the desired time.

In simpler terms, we can think of Relay Timer Circuit Design as an old-fashioned wind-up kitchen timer. The dial you turn sets the time, and when the gears turn back to zero, the switch flips.

Key Features of Timer Relays

• No programming required
• Physical dials or knobs for setting time
• Run on AC power (usually)
• Delay ranges typically from a few seconds to a few hours
• Basic ON-delay or OFF-delay functions

Digital Timer Relays

Digital timer relays are the tech-savvy counterpart. These use microprocessors to count time, offering more accuracy and a wide range of functions.

How Do Digital Timer Relays Work?

Digital timers use electronic circuits, usually controlled by a microcontroller or a digital logic chip. The user inputs the desired timing sequence through a keypad or digital interface. Once programmed, the timer keeps track of time electronically and switches the relay when needed.

These timers are far more customizable and are capable of more complex operations.

Key Features of Timer Relays

• High-precision timing
• Programmable via keypad or buttons
• LCD/LED display for real-time monitoring
• Multiple time functions (ON-delay, OFF-delay, interval, cyclic, etc.)
• Battery backup in many models
• Compact and sleek designs

Use Cases of Each Timer

Now that we’ve gone over the basics, let’s jump over to Choosing Timer Relays for Automation in real-world scenarios.

When to Use a Mechanical Timer Relay

1. Industrial Environments with High Vibration or Dust
   • Mechanical Timer Relays are often more tolerant of harsh conditions.
2. Simple ON/OFF Delays
   • When you don’t need advanced functionality, there’s no need to over-engineer the solution.
3. Retrofit Applications
   • Older systems designed with mechanical components are more compatible.
4. Low-Tech Settings
   • For example, in agricultural systems or simple HVAC setups, Mechanical Timer Relays work well.

When to Use a Digital Timer Relay

1. High-Precision Applications
   • Digital Timer Relay are perfect for labs, processing plants, or automated lines needing microsecond-level accuracy.
2. Multiple Time Functions
   • Need ON-Delay Timer Relay in one case and Off-Delay Timer Relay in another, and maybe a repeat cycle too? Digital is the way.
3. Remote Monitoring
   • Many digital timers come with networking or wireless options.
4. Space-Constrained Panels
   • Control Panel Timer Relays slim and compact design fits more easily into crowded control panels.

Pros and Cons

The Relay Timer Functionality of each timer has its own advantages and disadvantages which are being discussed below:

Mechanical Timer Relay

Pros:

• Simple to operate
• Reliable in rough environments
• Doesn’t require programming knowledge
• Usually cheaper
• Easier to repair

Cons:

• Limited functions
• Less precise
• Mechanical wear over time
• Can be bulky

Digital Timer Relay

Pros:

• High accuracy
• Programmable with multiple modes
• Compact design
• Energy-efficient
• Often comes with built-in diagnostics

Cons:

• More complex setup
• Can be vulnerable to power surges
• Costlier
• Requires basic technical understanding

Factors to Consider When Choosing a Timer Relay

There’s no one-size-fits-all solution when it comes to Timer Relay Configurations. Here are some things you should consider before making a choice:

1. Application Type

If you are automating a water pump, an industrial conveyor, or a light circuit? Each has different timing needs.

2. Environment

Is the timer going to be in a dusty, hot, or vibrating place? Mechanical timers might hold up better.

3. Precision

How accurate does the timing need to be? Digital timers excel when precision is key.

4. Complexity of Control

Do you need multiple time delays, cycles, or stages? Digital timers offer that flexibility.

5. Ease of Maintenance

Mechanical timers might require more hands-on care. Digital ones usually just keep ticking unless there’s a power issue.

6. Budget

For low-cost projects, a simple mechanical timer can get the job done. For long-term efficiency, a digital one might save you more over time.

Conclusion

The best timer relay is the one that fits your needs. It’s not just the latest or most advanced one but the one that suits your needs the most. In the comparison of digital timer vs mechanical timer, you can:

• Go with a mechanical timer if you want durability, simplicity, and cost-effectiveness for basic automation tasks.
• Choose a digital timer if you need precision, multi-functionality, and modern features for a more complex setup.

Take a look at your specific application, environment, budget, and future scalability. A small decision like the type of timer relay might seem minor, but it can impact efficiency, reliability, and maintenance in the long run.

If you are still in doubt, start with your application’s core needs and build up from there. And remember, automation isn’t about picking the most high-tech solution, it’s about choosing the right one for the job.
