Mastering Low Voltage Panel Design for the UAE & GCC Climate
For engineers, panel builders, and procurement teams in the UAE, a low voltage panel is the operational heart of any building's electrical system. It’s where the main power supply is safely controlled, divided, and distributed to every circuit, from critical HVAC systems to lighting. In the demanding GCC climate, a well-designed low voltage panel guarantees safety, control, and long-term reliability.
The Heart of Your Electrical System

Every modern building in the UAE, from Dubai's skyscrapers to industrial plants in Abu Dhabi, depends on a resilient electrical grid. At its core lies the low voltage panel. This isn't just a box of circuit breakers; it's the command centre ensuring electricity is delivered safely and efficiently, even under the harsh environmental conditions of the GCC.
This guide provides practical insights for engineers, panel builders, and electricians. We will dissect how these panels are engineered to perform in the face of extreme ambient heat, humidity, and pervasive dust—critical factors that influence every design decision and component choice.
What This Guide Covers
This article serves as a practical field guide for professionals specifying, designing, or maintaining electrical systems in the region. We focus on key areas crucial for project success:
- Core Standards: We'll navigate essential international standards like IEC 61439, which governs the safety and performance of low-voltage switchgear assemblies.
- Local Regulations: Understanding specific rules from authorities like DEWA and ADDC is non-negotiable for project approval.
- Component Selection: Choosing robust electrical components UAE projects demand is vital. Parts must be built to withstand harsh conditions, ensuring system reliability.
The demand for high-quality distribution systems is surging, driven by the region's ambitious infrastructure projects. The Middle East and Africa's low voltage switchgear market, including the low voltage panel, was valued at approximately USD 2.19 billion in 2023 and is projected to reach USD 3.08 billion by 2032 due to rapid industrialisation and urban growth.
To explore the fundamentals of electrical panel boards further, our detailed guide offers valuable information. This guide sets the stage for designing, building, and commissioning panels that deliver on safety, reliability, and efficiency.

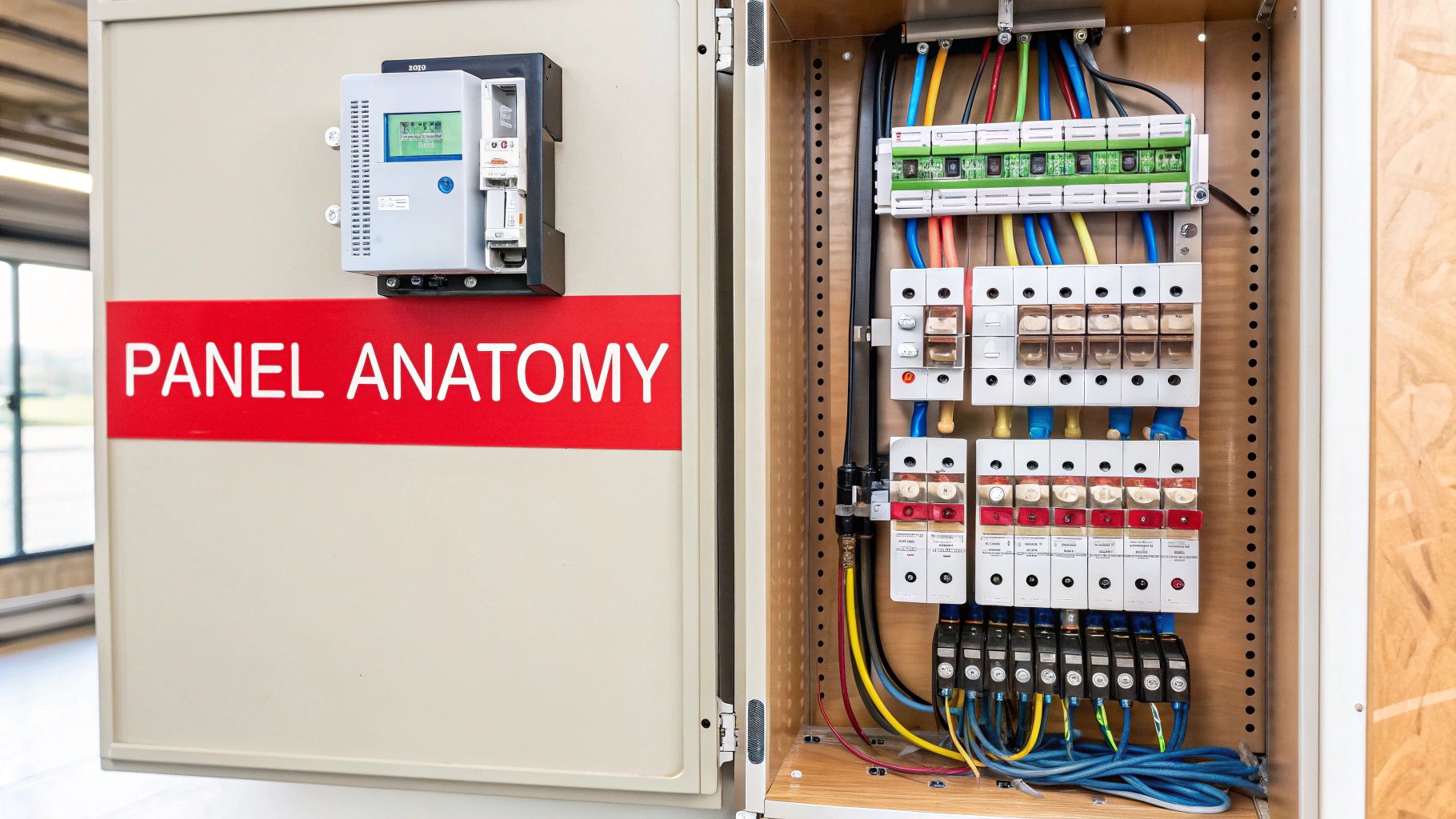

Anatomy of a High-Performance LV Panel

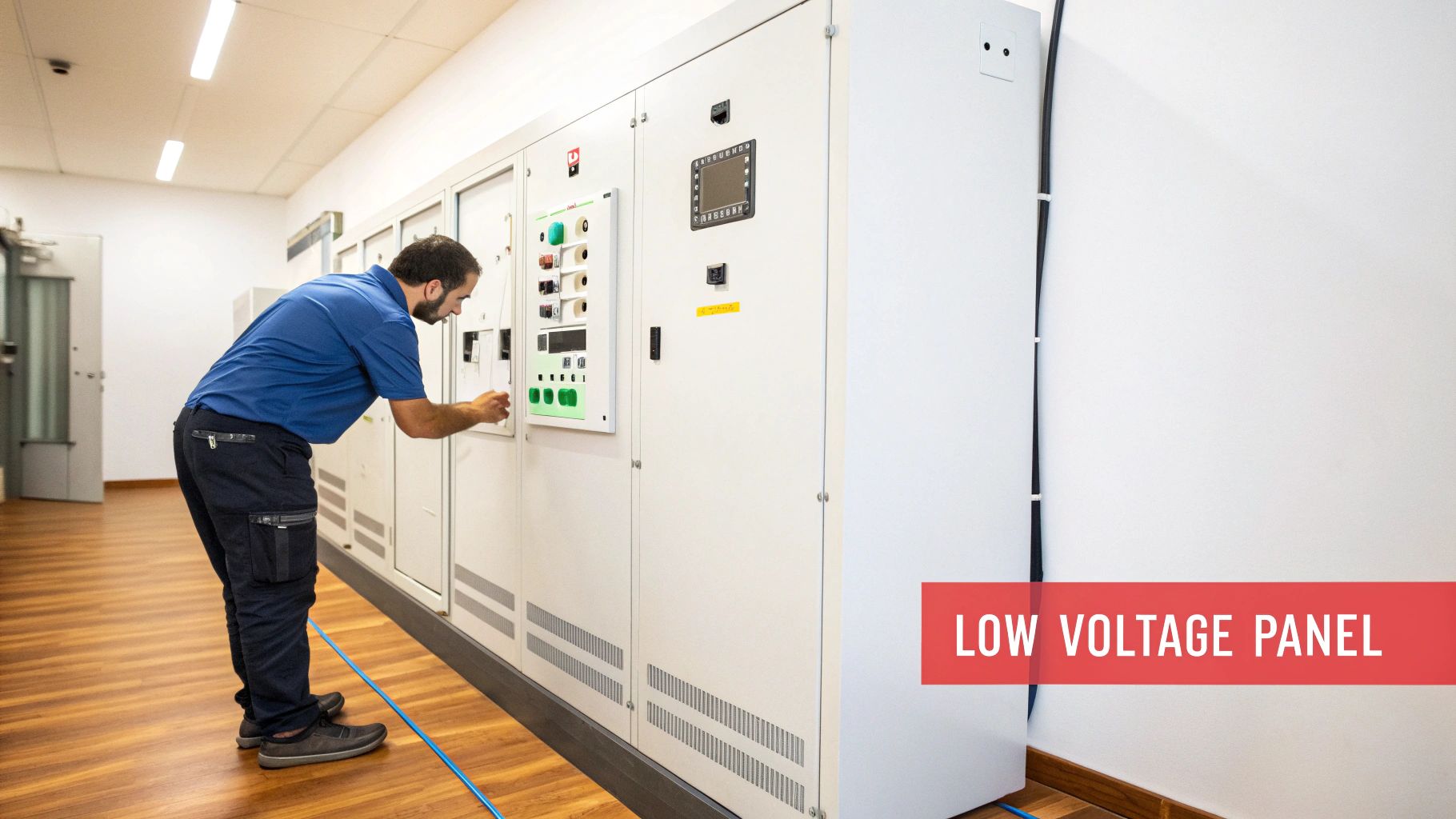

Inside a low voltage panel is a meticulously organised system where every component works in harmony. Each part has a specific function, directly impacting the panel's overall safety, reliability, and efficiency. The entire assembly must be robust enough to handle significant electrical loads while withstanding the unique environmental challenges of the UAE.
A high-performance LV panel is a precisely engineered assembly, not merely a metal box. For any engineer or panel builder aiming to deliver long-term value, understanding its anatomy is the critical first step.
Main Incoming and Distribution Components
The journey of electricity begins at the main incoming device. This is the primary point of control and protection for the entire panel, designed to handle the facility's full electrical load.
-
Main Incoming Device (ACB/MCCB): In larger systems, an Air Circuit Breaker (ACB) typically serves as the main incomer. It provides robust protection against overloads and short circuits, often with advanced monitoring capabilities. For smaller distribution boards, a Moulded Case Circuit Breaker (MCCB) is sufficient. The selection depends on the total connected load, prospective short-circuit current, and coordination with upstream protective devices.
-
Busbars (Copper or Aluminium): Busbars are the electrical superhighways inside the panel. These solid strips of copper or aluminium distribute power from the main incomer to the various outgoing circuits. In the GCC's high-temperature climate, correct busbar sizing is crucial to prevent overheating. Copper is often preferred for its superior conductivity and oxidation resistance.
Outgoing Feeders and Circuit Protection
Power is channelled from the busbars to individual circuits through a series of protective devices. Each feeder is selected and sized for its specific load, whether a heavy-duty HVAC unit or a simple lighting circuit.
This section houses an array of protective devices:
- Miniature Circuit Breakers (MCBs): These protect final circuits, such as lighting and socket outlets, from overloads and short circuits.
- Moulded Case Circuit Breakers (MCCBs): These are used for higher-rated sub-main circuits that feed other distribution boards or large individual loads.
- Residual Current Circuit Breakers (RCCBs/RCBOs): Essential for personnel safety, these devices detect small earth leakage currents that can cause fatal electric shocks and trip instantly. They are mandatory for many circuits under DEWA and ADDC regulations.
For any project in the UAE, specifying components with a high short-circuit breaking capacity (Icu) is vital. This ensures the breaker can safely interrupt the maximum potential fault current without failing, preventing a catastrophic event and making the entire installation safer.
Control and Automation Elements
Modern LV panels often incorporate intelligent components for control and automation. These devices manage power usage, improving efficiency and providing operators with greater control. For a closer look, see our guide on the major components of an electrical control panel.
- Contactors: These heavy-duty, electrically controlled switches are workhorses for turning motors, lighting banks, and heating loads on and off remotely or automatically.
- Relays: Used for switching smaller currents or creating control logic, relays are versatile and can be configured for functions like overload protection, phase monitoring, and complex timing operations.
- Timers and Control Devices: These components introduce automation, allowing equipment to operate on a schedule. This is a fundamental part of any energy management solution Dubai facilities use to reduce operational costs.
From the main ACB down to the smallest relay, every component must be selected with the local climate in mind. This means paying close attention to temperature derating figures and ensuring the panel enclosure has an appropriate IP rating to protect against dust and moisture.
Key Components of a Low Voltage Distribution Board
This table summarises the core components of an LV panel and key selection criteria for projects in the GCC.
| Component | Function | GCC-Specific Selection Criteria |
|---|---|---|
| Enclosure | Houses and protects all internal components from environmental factors like dust, moisture, and accidental contact. | High IP rating (e.g., IP54 or higher) to protect against dust and water ingress. Corrosion-resistant materials are essential. |
| Main Incomer (ACB/MCCB) | Provides primary overcurrent and short-circuit protection for the entire panel and serves as the main disconnect. | Must be temperature derated for ambient temperatures often exceeding 40°C. High short-circuit capacity (Icu) is critical. |
| Busbars | Distribute power from the main incomer to the various outgoing feeder circuits within the panel. | Sized to handle full load current without overheating in high ambient temperatures. Copper is often preferred for better conductivity. |
| Outgoing Breakers (MCCB/MCB) | Protect individual sub-main and final circuits from overloads and short circuits. | Selection must account for load type (e.g., motor, lighting) and be coordinated with the main incomer (selectivity). |
| Earth Leakage Protection (RCCB/RCBO) | Protects personnel from electric shock by detecting small leakage currents to earth and tripping the circuit. | Mandatory for socket outlets and specified circuits as per DEWA/ADDC regulations. Sensitivity (30mA) is key for personnel safety. |
| Control Devices (Contactors, Relays) | Automate and control the switching of loads like motors, pumps, and lighting based on external signals. | Must have a high operating temperature range. Coils should be rated for the local control voltage and frequency. |
| Metering & Monitoring | Measures electrical parameters like voltage, current, power, and energy consumption for monitoring and billing. | Digital multifunction meters are standard. An energy meter GCC utilities approve must comply with local standards for accuracy and data communication. |
Understanding these components and their regional requirements is fundamental to designing a compliant, safe, and durable low voltage panel.
Meeting UAE and GCC Electrical Standards
For engineers and project managers in the UAE and GCC, compliance is the bedrock of a successful project. Navigating international standards and specific local regulations is essential to avoid project delays, failed inspections, and critical safety risks associated with a low voltage panel.
The cornerstone of modern panel design is IEC 61439, the global standard for low-voltage switchgear assemblies. This strict framework mandates thorough safety and performance verification for every panel, proving it can handle rated currents, withstand short circuits, and operate reliably.
The Pillar of Safety: IEC 61439
Compliance with IEC 61439 requires a holistic approach, verifying the entire assembly's design through a series of rigorous tests covering temperature rise limits, short-circuit strength, insulation properties, and mechanical endurance.
For panel builders in Dubai, this means an assembly is "design verified," not just "type-tested." This distinction guarantees the final product meets the highest safety benchmarks, which is non-negotiable for approval from local authorities.
Navigating Local Utility Requirements
While IEC 61439 sets the international benchmark, local utilities like DEWA (Dubai Electricity and Water Authority), ADDC (Abu Dhabi Distribution Company), and SEC (Saudi Electricity Company) have their own regulations tailored to the region's grid characteristics and environmental conditions.
Common compliance pitfalls include:
- Incorrect Incomer Ratings: Using a main breaker that fails to meet the minimum short-circuit breaking capacity (Icu) required by the utility.
- Insufficient Clearances: Not providing the required space around busbars and terminals for safety and heat dissipation.
- Improper Metering: Installing meters not on the approved vendor list or lacking the correct communication protocols.
A panel could be IEC compliant but still be rejected if it doesn't meet every specific DEWA or ADDC regulation. Explore compliant low-voltage switchgear solutions designed to meet these stringent regional needs.
Demystifying Form and IP Ratings
Two critical specifications for any LV panel in the GCC are its Form of separation and its Ingress Protection (IP) rating. These ratings directly impact safety, maintenance, and lifespan.
Form Ratings (Internal Separation)
The Form rating (Form 1 to 4b) defines the level of internal compartmentalisation, which protects maintenance staff and prevents faults from cascading.
- Form 1: No internal separation.
- Form 2b: Main busbars are separated from functional units (e.g., circuit breakers).
- Form 3b/4b: The highest safety level. Busbars, functional units, and outgoing terminals are in distinct, enclosed compartments, allowing safe maintenance on one feeder without shutting down the entire panel.
IP Ratings (Environmental Protection)
The IP rating indicates how well the enclosure protects internal components from solids (like dust) and liquids.
- IP54: Protected against significant dust ingress and water splashes. A common specification for indoor industrial sites in the UAE.
- IP65: Completely dust-tight and can withstand low-pressure water jets. Ideal for outdoor installations or extremely dusty environments.
Choosing the right Form and IP ratings is a strategic decision that balances operational needs with the site's environmental reality. This ensures the low voltage panel remains safe and reliable for years.
The push for advanced electrical infrastructure is gaining momentum. Saudi Arabia's Vision 2030, for instance, includes massive investments in renewable energy, fueling demand for reliable low-voltage switchgear across the region, as highlighted in recent analyses of market trends.
Practical Steps for Panel Design and Sizing
Moving from theory to practice, the design and sizing stage translates calculations into the safety and efficiency of a low voltage panel. In the UAE and GCC, this is a precise science that must account for unique environmental and operational challenges.
Correct sizing ensures a reliable panel, while incorrect sizing can lead to costly over-specification or dangerous under-sizing. The process starts with a thorough analysis of the electrical loads.
Step 1: Load Estimation and Demand Factors
Begin with a comprehensive load schedule listing every piece of equipment the panel will power—HVAC systems, motors, lighting, and socket outlets—along with their power ratings (kW or kVA).
Not all equipment runs at full power simultaneously. Applying demand factors, guided by local utility rules and sound engineering practice, provides a realistic and economical sizing for main incomers and busbars. Skipping this step results in an unnecessarily large and expensive panel.
Step 2: Critical Short-Circuit and Voltage Drop Calculations
With the total load established, two calculations are non-negotiable:
- Short-Circuit Current Calculation: Determine the maximum possible current during a fault. Every protective device must have a short-circuit breaking capacity (Icu or Ics) that meets or exceeds this value to prevent catastrophic failure.
- Voltage Drop Calculation: Long cable runs, common in large facilities across Dubai, can cause voltage to drop. Calculations must ensure the voltage drop remains within acceptable limits, typically less than 5% from the source to the load, as per most regulations.

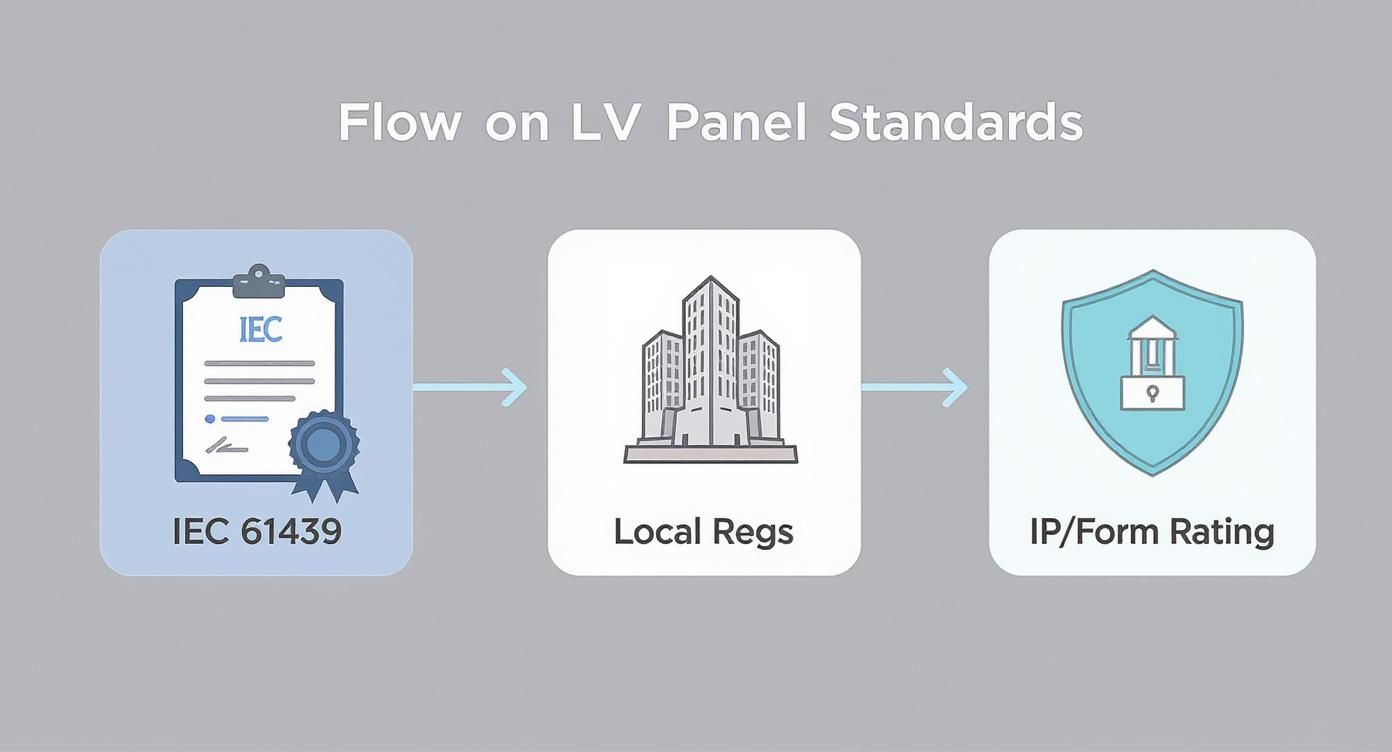

This visual flow highlights the key standards to incorporate into your design and sizing process.

As the infographic shows, compliance is a layered approach, starting with the IEC 61439 standard and adding specific local regulations and environmental ratings to create a robust system.
Step 3: Mastering Temperature Derating in the GCC
Temperature derating is a critical skill for design engineers in the UAE. The region's intense ambient heat degrades the current-carrying capacity of cables, circuit breakers, and other components.
Protective devices are rated based on a standard ambient temperature (e.g., 30°C or 40°C). In the 50°C environments common in the GCC, their ability to dissipate heat is reduced. Applying a manufacturer-provided derating factor is necessary to adjust their effective current rating.
Ignoring derating can lead to nuisance tripping, component overheating, and a shortened equipment lifespan.
Temperature Derating Factor Comparison
| Component Type | Rated Current @ 30°C | Derated Current @ 50°C | Required Adjustment |
|---|---|---|---|
| Moulded Case Circuit Breaker (MCCB) | 100A | 88A | Size up to the next rating or ensure load is < 88A |
| Miniature Circuit Breaker (MCB) | 20A | 17.6A | Ensure circuit load does not exceed 17.6A |
| Air Circuit Breaker (ACB) | 1600A | 1488A | Recalculate load or select a higher-rated breaker |
This table illustrates that a component’s nameplate rating is not its real-world performance in our climate. Selections must be adjusted to compensate for the heat.
Step 4: Component Layout and Heat Dissipation
The physical arrangement of components inside the enclosure is crucial for managing heat and facilitating future maintenance.
Best practices include:
- Provide Adequate Clearance: Ensure sufficient space between heat-producing components like breakers and transformers.
- Strategic Placement: Position larger, hotter components near the top of the enclosure to allow heat to rise and vent naturally.
- Ventilation: For panels with high power density, properly sized ventilation fans or louvres are essential.
Following these practical steps transforms panel design into a methodical process, resulting in a low voltage panel that is safe, compliant, and built to last in the demanding GCC climate.
Ensuring Safety Through Testing and Commissioning

A perfectly designed low voltage panel is only as good as its installation and verification. The on-site installation and commissioning phase is the final checkpoint before a system goes live, translating theoretical calculations into real-world reliability. This is non-negotiable for project handovers in markets like Dubai and Abu Dhabi.
Proper installation starts with secure mounting on a level surface, respecting the manufacturer's clearance guidelines for adequate heat dissipation—a critical factor in the high ambient temperatures of the GCC.
Best Practices for Installation and Wiring
Flawless terminations are essential to prevent future failures.
-
Correct Torque Settings: Use a calibrated torque wrench to tighten terminal screws to the manufacturer's specified torque value. Over-tightening can damage the terminal, while under-tightening creates a high-resistance point that can overheat and become a fire hazard.
-
Proper Cable Gland Selection: Use correct cable glands to maintain the panel’s IP rating against dust and moisture. An improperly sealed entry point compromises the entire enclosure.
-
Neat and Logical Wiring: Proper cable management prevents strain on terminals, simplifies future troubleshooting, and ensures unrestricted airflow inside the panel.
A common and dangerous mistake is failing to verify every connection. A single loose terminal can act as a resistor, causing a voltage drop under load and rendering the circuit ineffective.

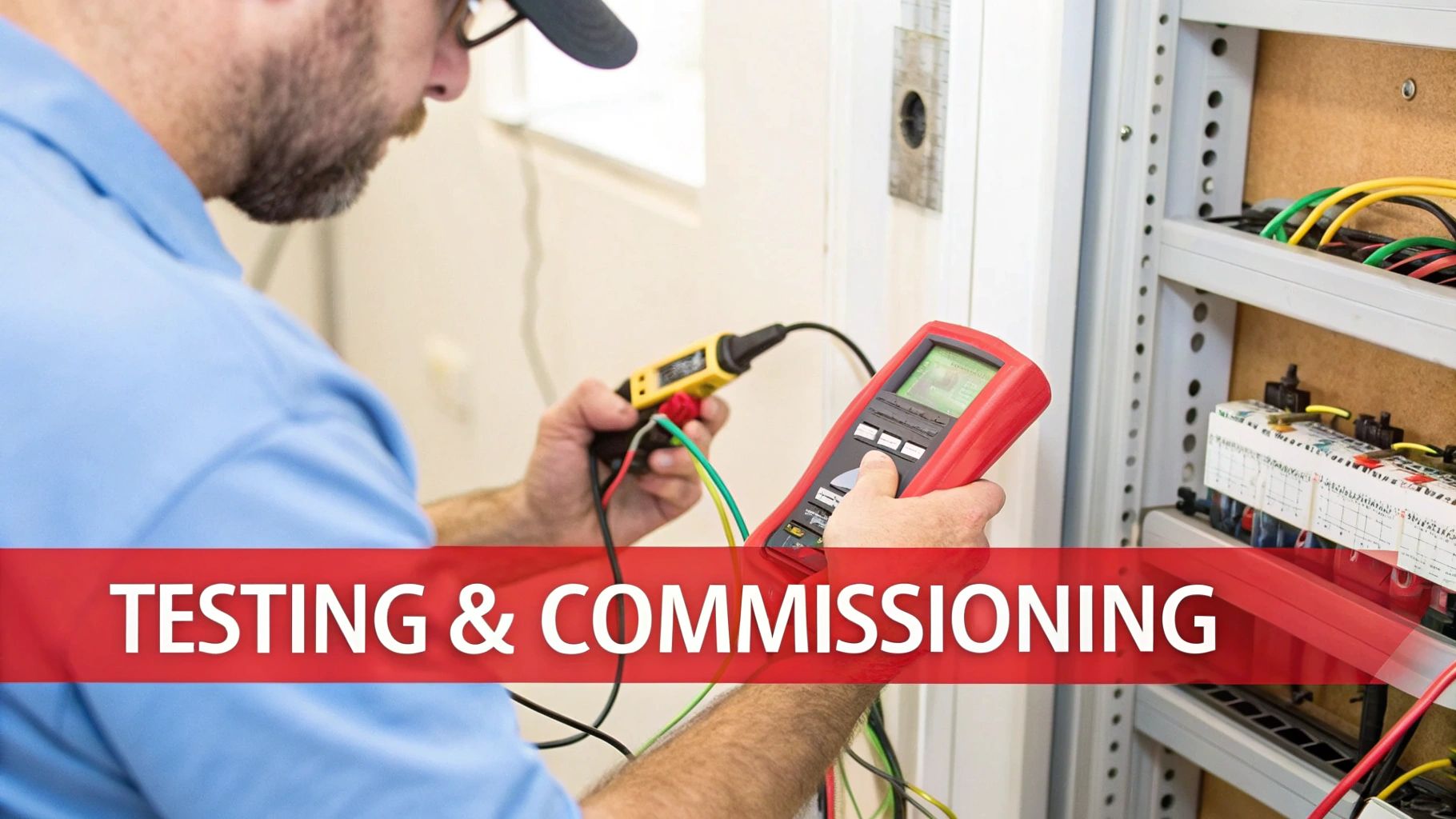

The Critical Commissioning Checklist
The testing and commissioning phase involves a systematic series of checks mandated by standards like IEC 61439 to verify the panel is safe and functions as designed. This methodical process proves every safety feature and provides documented evidence of compliance before handover.
Routine Tests and Functional Checks
A solid commissioning plan includes routine tests performed on every panel assembly.
-
Insulation Resistance Test: This fundamental safety check verifies sufficient insulation between live conductors and earth, preventing short circuits and shock risks.
-
High-Voltage (Hi-Pot) Test: A dielectric strength test ensures the panel can handle voltage surges without insulation breakdown.
-
Functional Testing: This involves operating all mechanical parts (circuit breakers, isolators) to ensure they move freely and checking safety devices (emergency stops, earth leakage relays) to confirm they trip correctly.
-
Continuity Checks: This verifies the continuity of all protective earth (PE) and neutral conductors, confirming that safety circuits are complete.
This rigorous testing is the bedrock of reliability. The low voltage drives market in the Middle East and Africa is projected to reach USD 1.18 billion by 2034, driven by policies promoting energy-saving technology. Learn more about trends in the regional low voltage market. By adhering to these testing and commissioning steps, every low voltage panel becomes an asset for long-term operational success.
Partnering for Success in the GCC
Designing and building a top-tier low voltage panel requires a balanced approach of compliant design, smart component selection, and precise execution. In the demanding GCC environment, adhering to international and local standards is the only way to build safe, durable systems.
However, technical expertise is only part of the solution. The final step is finding a technical partner who understands the unique challenges of the regional market and can support your project from start to finish.
Your Expert Partner in Dubai and Abu Dhabi
Navigating complex electrical standards, component derating, and local utility regulations is a significant challenge. It requires a partnership built on real-world, local experience. This is where a dedicated supplier becomes a vital part of your project team.
At GoSwitchgear, we are more than just a marketplace for electrical components UAE professionals use; we are your technical partners. We are committed to ensuring your projects meet the highest standards of safety and performance. Our team understands the daily challenges you face, from selecting the right IP-rated enclosure to sourcing IEC 61439 compliant breakers.
The right partnership provides not just components, but confidence. It ensures that every part specified for your low voltage panel is authentic, certified, and perfectly suited for the harsh operating conditions of the Middle East, mitigating risks before they become costly problems.
We've Got Your Back, From Design to Commissioning
Whether you are finalising a design in Dubai or commissioning a system in Abu Dhabi, our local presence ensures you get the support you need, when you need it.
Contact our Dubai team for technical consultations, project support, or to source high-quality electrical components engineered for the Middle East. Let's build with confidence, together. Request a quote for your Abu Dhabi projects today.
Frequently Asked Questions
When specifying a low voltage panel for projects in the unique climate of the UAE and GCC, several key questions arise. Here are common queries from engineers, electricians, and project managers, with practical answers.
What's the Real Difference Between IEC 60439 and IEC 61439?
IEC 61439 is the modern, stricter successor to the old IEC 60439 standard. The primary change was the shift from "type-tested assemblies" to a more thorough "design verification" process.
This means that instead of testing a single representative sample, the new standard requires that every panel design is verified across all aspects, from short-circuit strength and temperature rise to dielectric properties. For any project in the UAE, compliance with IEC 61439 is non-negotiable and aligns with the high safety standards set by local authorities like DEWA.
How Does the Extreme Heat in Dubai Affect Panel Design?
The intense heat in Dubai, which often exceeds 45°C, makes temperature derating essential. Electrical components like circuit breakers and busbars are rated for optimal performance at a standard temperature, such as 40°C.
As temperatures rise, their ability to dissipate heat decreases, reducing their effective current-carrying capacity. Designers must apply manufacturer-specific derating factors to prevent components from overheating, which can lead to premature failure or fire. This often means selecting larger components than would be necessary in a cooler climate for the same load.
Why Do Form Ratings Matter So Much for LV Panels?
Form ratings (e.g., Form 2b, 3b, or 4b) define the level of internal separation within a low voltage panel, as specified in IEC 61439. This compartmentalisation is critical for safety during operation and maintenance.
- Form 1: No internal separation.
- Form 2b: Separates busbars from functional units.
- Form 4b: The highest safety standard, with separate, fully enclosed compartments for busbars, functional units, and their terminals.
For mission-critical facilities like hospitals or data centres in the UAE, a high Form rating is typically specified. It allows technicians to safely work on a single circuit without de-energising the entire panel, ensuring uptime and protecting personnel.
What IP Rating Is Best for Panels in the GCC Region?
The Ingress Protection (IP) rating is crucial in the GCC due to pervasive dust and occasional high humidity. The two digits in an IP rating indicate protection against solids (first digit) and liquids (second digit).
For most panels installed outdoors or in dusty industrial sites in the region, an IP54 rating at a minimum is recommended. This ensures the enclosure is protected from significant dust ingress and can withstand water splashes from any direction.
A correct IP rating prevents conductive dust from causing short circuits and protects internal components from corrosion, ensuring the panel's long-term reliability and safety.
For expert help selecting the right components for your next project, check out the extensive catalogue at GoSwitchgear. Our team is on hand to support your technical needs. Visit us at https://goswitchgear.com.
