Testing Electrical Systems: An Overview of Insulation Testers, Digital Meters, and Clamp Meters

Electrical systems exist around us and perform various tasks and roles crucial to our infrastructure. Multiple processes exist within electrical systems, which can be quite complex and challenging to manage. These systems must operate optimally for various reasons, including safety and efficiency. For this purpose, there are specialized equipment and devices available that you can use to evaluate electrical components and systems. These are known as testers or testing instruments. Each tester varies in how it works and the units it measures. Additionally, each of these testers provides various benefits. We will go into each to ensure that you can select the right device to test your electrical system. Without further delay, let’s dive in.

What are electronic testers?

Electronic testers are equipment that is used to make a variety of electrical measurements that can be used to help identify any issues and problems within a system. Some of the standard measurements include current, voltage, and resistance. These tools are handy; you will find at least one in an electrician’s toolkit. Electricians can use them during system testing, which tends to be an extensive operation. This ensures that safety and regulations are fulfilled so that people around or dealing with the system are not affected. There are a variety of testers that vary in their complexity, specialization, and how they work.

What is the importance of electronic testers?

Electronic testers enable the testing of electrical systems, which is crucial for a variety of reasons. These are:

Safety

Electrical systems work on electricity, and there is always the risk of electrical hazards. Additionally, some more advanced ones can have high voltages, which is an even more considerable risk. If these electrical systems are not maintained or installed correctly, these hazards can manifest in various ways. Some ways include loose connections, damaged components, and improper wiring. Qualified personnel can detect these problems with electronic testers by noticing irregular readings and measurements. In this way, they can prevent possibilities like electric shocks, explosions, and short circuits.

Performance

Electrical systems must work optimally to ensure that they are fulfilling the processes they are designed for. Additionally, optimal performance means the system works efficiently, meaning more energy savings and reliable operations. Electronic testers can be used to monitor performance to ensure that it is working correctly. If inefficiencies are detected, qualified technicians can then rectify them. Such monitoring also helps from a maintenance point of view, as problems can be detected within the system before they become much more severe. This enables less downtime of systems, timely repairs, and overall better performance and operation.

Regulation Compliance

Certain regulations and safety standards exist in different places around the world. The purpose of these standards is to ensure that this equipment operates to a high level that is deemed appropriate by governments. These standards are usually decided on the basis of ensuring safety within buildings. As a result, electrical systems must fulfill these standards to ensure that legal problems do not occur. Electrical testing equipment can help achieve precisely that as the measurements they display can be compared to those mentioned in regulations.

Troubleshooting

Electrical systems tend to go through much wear and tear. For example, the heat produced by conductors can take a toll on the various components, especially if the system is complex and has high voltages and currents. As a result, electrical systems usually develop problems and sometimes even break down completely. An experienced electrician can diagnose the issues by examining the system, but it is essential to look at all aspects of the system. The root cause must be identified to avoid persistent issues and more significant breakdowns. Electric testers can help precisely achieve that by allowing technicians to understand exactly what is happening within and where the problem is occurring. In this way, they are essential troubleshooting equipment that can help reduce downtime and make testing more convenient.

Types of Electrical System Testing Equipment

There are a variety of tools and equipment that can be used to test electrical systems.

Insulation Testers

Insulation testers are also known as insulation resistance testers, megger testers, and Mega ohmmeters. As their name suggests, these devices are used to measure the ‘insulation’ of electrical equipment. Insulation is a material property dictated by its resistance, which is a unit of measure for how strongly the material will resist the electric current. Therefore, insulation testers measure the total resistance across two points. This indicates how effective the dielectric insulation is in resisting current flow.

Working principle

Insulation testers work by utilizing the high-resistance properties of materials. The tester will apply a high voltage to the material, measure the current that flows through and calculate the resistance. This can be divided into four stages:

• Charge Phase: During this phase, the device increases the voltage from 0V to the selected voltage.
• Dwell Phase: During this phase, the voltage is allowed to increase to the select voltage, and the current is allowed to flow.
• Measurement Phase: At this phase, the current is measured, and the resistance is calculated. This resistance is calculated by dividing the applied voltage with the measured current.
• Discharge Phase: At this stage, the tested insulation material is allowed to discharge back to 0V to end the insulation test.

Utility

Using an insulation tester to calculate the resistance value of a material is incredibly useful when it comes to testing electrical systems. Insulation material is typically used in electrical systems for safety reasons. Such material helps keep conductive materials from touching each other and creating an unwanted connection that can lead to dangerous short-circuiting. For example, wires within the system are covered with insulation material like PVC that helps keep the cables away from each other.

However, with time, this insulation can decay, making the electrical system unsafe and reliable. This can also lead to leakage current, which can cause a wastage of energy and increase costs. Insulation testers can help test whether the insulation is up to standard by calculating the resistance value and ensuring it is within the required parameters. This way, potential electrical hazards like explosions, shocks, burn injuries, and severe equipment failure can be prevented. Typically, insulation testers are used for equipment like wiring, motors, and transformers.

Digital Multimeters

Digital multimeters (DMMs), are devices used to measure multiple electrical values. Typically, the values that are measured are voltage(V), resistance(Ω), and current(A). DMMs may also have additional features or specialized options such as relative power differences, frequency, temperature, capacitance, and induction.

Working Principle

DMMs are incredibly easy to work with. They consist of three main parts that all play a role in measuring electric values or utilizing their features. These parts are:

• Input jacks: There are multiple input jacks on DMMs, each with a symbol indicating the value to be measured. The symbol with the ground symbol is for the black wire, which will always be plugged into the same input jack. The other is the red wire, which is put into the input jack of the desired measured value. The probe tips are then placed across a conductor to measure the value.
• Dial: The dial is used to select the value that is to be measured. You can choose between voltage, current, and resistance and the specific unit you want to measure it in. For example, current can be measured in A and mA.
• Display: This is the small screen at the top that displays the measured value in digital form. The digital multimeter initially measures the values in analog and converts them into digital form that is easily readable on display.

Utility

DMMs provide a variety of features and uses that make them incredibly useful for testing electrical systems. These are:

• DMMs are very versatile as they can be used to measure a variety of electrical values. As a result, you will find them in most laboratories and any qualified technician or electrician’s toolkit. Additionally, they are also effortless and quick to use. As a result, DMMs are even suitable for hobbyists, students, and applications that do not require advanced electrical knowledge.
• They can be used to measure a variety of faults within the same electrical system. This includes identifying sudden voltage drops, locating current malfunctions, and checking the degradation of insulation materials. In this way, the electrical system as a whole can be diagnosed using a digital multimeter.
• Digital multimeters also provide advanced features for maintaining and diagnosing complex electrical systems. This ensures a more comprehensive testing process. These features include examining the capacitors’ condition and ensuring the system’s temperature has not reached critical limits.

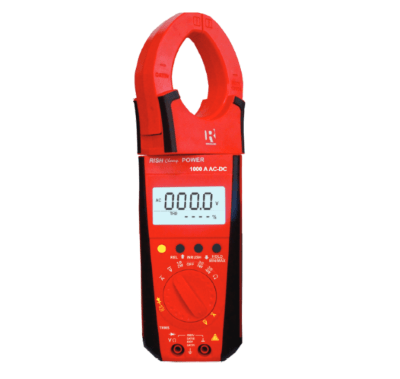

Clamp Meters

Clamp meters are electrical tools primarily used to measure the electric current. This includes measuring AC (alternating current) and DC (direct current) currents. Some advanced versions can even calculate electrical values like voltage, resistance, frequency, etc. The main feature of this measuring instrument is that you can make measurements without making physical contact with the electrical system. This ensures there is no need to break the circuit, making these instruments very convenient.

Working Principle

Clamp meters operate and make measurements based on the principle of magnetic induction. When a current flows through a conductor, it produces a magnetic field around it. Clamp meters can detect and measure this magnetic field to calculate the current within the conductor. Additionally, advanced meters that can measure both DC and AC voltages use Hall’s effect to measure the current within.

Clamp meters can be used to make measurements courtesy of the current-sensing jaw on the top of the device. These jaws can be clamped around the system or conductor where the current is to be measured, producing a value. Additionally, a dial and buttons can be used to take advantage of the measurement features this instrument provides, like freezing the display reading.

Utility

Clamp meters’ unique features make them an excellent tool for testing electrical systems. Electricians and technicians widely use them to maintain, diagnose and troubleshoot electrical systems. Some ways that clamp meters are handy are:

• Clamp meters have a non-invasive design, so there is no need to break the circuit. This means that measurements can be made on an electrical system without interrupting its operation and disconnecting components inside. This can be incredibly convenient for technicians and electricians as they can make measurements to determine whether maintenance or repairs are needed. It allows downtime and its consequences to be avoided.
• Clamp meters’ convenient design means that measurements can be made quite quickly. All that needs to be done is to clamp the meter around the desired system, and a current value can be obtained. With other meters, you would have to disconnect the circuit, break it, connect it, and put everything back together.
• Clamp meters provide a lot of safety as you do not have to come into contact with the conductor or circuit when making measurements. The meter’s jaws do not touch the conductor during measurement, drastically reducing the possibility of getting shocked.
• Since clamp meters measure an active system without disconnecting it, they can be used to do accurate live readings. Clamp meters do not interfere with the circuit in any way, which means that the measurements and readings obtained will give a better idea of what’s happening inside. This allows technicians to diagnose what the problem is within the system and repair it accordingly.
• Clamp meters are great tools to be used during installation. Since they can do readings quite quickly, they can be used to make measurements as the various circuits within an electrical system are set up. In this way, they can be used to make final checks to ensure the installation process has been done correctly.

The bottom line

Electrical systems exist around us and must operate correctly and efficiently to ensure they fulfill their tasks. After all, we are highly dependent on them. For this purpose, these electrical systems must be evaluated to ascertain that they are in proper working order. For this purpose, electrical testing equipment is incredibly handy. With these tools, we can measure the various electrical values within the circuits and components of electrical systems. This information can allow us to understand whether the system is working correctly or if there is any fault within. In this way, we can ensure that the electrical system works efficiently, safely and follows regulations. We can use various insulation testers, each with its unique features, specializations, utility, and working principle. We have provided an overview for each tester to ensure you can select the right one for the job. If you are an electrician or technician, we recommend having at least one of these tools, as they will make the testing and maintenance procedure more manageable.

We hope this article has been insightful and helped you understand electrical system testing. Thank you for reading!
