What is a Current Transducer? Types, Applications & How to Select the Right One

For any engineer or panel builder in the UAE working with high-power electrical systems, you know you can't plug an industrial motor's feed directly into a control system. It would be like shouting through a megaphone into someone's ear. You need a translator—and in the world of electricity, that's what a current transducer does. It takes a powerful current and converts it into a standardized, low-level signal like 4-20mA, enabling safe and precise current monitoring.

What Is a Current Transducer and Why Is It Essential in the GCC?

In any modern automation or energy management setup, connecting a high-current circuit to the sensitive inputs of a Programmable Logic Controller (PLC) would fry it instantly. A current transducer bridges this gap, providing a safe and reliable method for current monitoring. It's a cornerstone of any effective energy management solution in Dubai and across the GCC.

The transducer often works with a current transformer (CT). The CT first steps down the primary current to a safer level, usually 0-1A or 0-5A. The transducer then performs a CT-based signal conversion, turning this secondary current into a precise, proportional, and isolated analog signal that your PLC or SCADA system can use.

For a quick recap, here's a simple breakdown of what a current transducer brings to the table.

Current Transducer Quick Overview

Attribute	Description	Typical Use Case
Primary Function	Converts high electrical current into a standard, low-level analog signal.	Enabling PLCs to monitor motor current.
Output Signals	4-20mA, 0-10V, or other standardized analog outputs.	Interfacing with SCADA systems or data loggers.
Core Benefit	Provides galvanic isolation to protect sensitive control equipment.	Safely measuring current in high-voltage industrial machinery.
Key Partner	Often used with a Current Transformer (CT) to step down primary current.	Monitoring the load on a large electrical feeder in a Dubai facility.

This table neatly summarizes why these devices are more than just components; they're essential for safe and intelligent system design.

This function is indispensable for a few critical reasons:

• Safety: It creates galvanic isolation, a physical air gap that protects delicate control equipment and personnel from potentially lethal high voltages. This is critical for meeting safety standards on UAE project sites.
• Compatibility: It translates raw electrical data into a standard signal that virtually all PLCs, meters, and data loggers are built to interpret, from brands like Siemens, Schneider Electric, and Allen-Bradley.
• Accuracy: It delivers the precise, real-time data needed for fine-tuned process control, effective load monitoring, and rapid fault detection.
• Data Integration: It acts as the first link in the chain, allowing operational data to flow seamlessly into plant-wide SCADA or Building Management Systems (BMS).

The demand for these vital electrical components in UAE is surging. Driven by a regional focus on improving power quality and boosting energy efficiency, the market for current transducers is seeing significant growth.

At its heart, this conversion from a raw current to a usable current to analog signal is fundamental for building the intelligent electrical infrastructures of today. This data often feeds into larger digital frameworks, playing a key role in advanced applications like cloud computing in IoT.

How a Current Transducer Works Inside Your Electrical Panel

To understand why a current transducer is so valuable in an electrical panel, we need to see what's happening inside. The process starts with a current transformer (CT), which samples a massive current from a main power line. The CT's job is to safely "step down" this high current to a much more manageable level—usually in the 0-1A or 0-5A range.

This smaller, proportional AC current is then channeled into the transducer's input terminals. Inside the device, a clever circuit grabs this raw signal and puts it through a multi-stage conditioning process.

The Conversion Process

First, the internal circuitry rectifies the incoming AC, converting it into a DC signal. From there, it meticulously scales this signal with high precision. The goal is to ensure the final output is a perfect, proportional representation of the original current. This precise CT-based signal conversion is the secret sauce that guarantees accuracy.

The last step is to translate this fine-tuned internal signal into a standard format. The most common is the robust and noise-immune 4-20mA output. However, depending on the model, it might also be a 0-10V signal. This standardization is what allows for seamless current monitoring across all kinds of control systems.

One of the most critical functions happening behind the scenes is galvanic isolation. Think of it as a protective moat. The transducer’s design creates a complete physical and electrical break between the high-power input side and the delicate, low-voltage output side. This is essential for shielding your expensive PLCs and control gear from destructive voltage spikes, a common concern in industrial facilities across the GCC.

Why This Process Matters for Your System

This journey from a raw AC input to a clean current to analog signal is the foundation of your system's integrity. It's how you can be confident that the data hitting your control system is not only accurate but also completely safe to handle.

Here’s what this internal process delivers:

• Signal Integrity: It scrubs out electrical "noise" that can corrupt data, giving you a clean, stable signal. This is especially important for long cable runs common in large facilities across Dubai and Abu Dhabi.
• System Protection: That isolation acts as your ultimate failsafe, stopping a catastrophic fault on the power side from frying your sensitive control hardware.
• Universal Compatibility: By outputting a standard 4-20mA signal, the transducer ensures its data can be easily used by a huge ecosystem of industrial devices.

Understanding this process is the first step when you need to figure out how to choose a current transducer for your project.

Exploring the Different Types of Current Transducers

Not all current transducers are built the same. For any engineer or panel builder on projects in the UAE or KSA, matching the right technology to your needs is a critical decision. The choice boils down to output signal, communication protocol, and physical form factor.

Output Signal Types: 4-20mA vs 0-10V

The most basic distinction is the kind of analog signal the transducer sends out.

• 4-20mA Current Loop: This is the industry standard for good reason. An AC current transducer with a 4-20mA output is exceptionally resistant to electrical noise and can push signals accurately over long cable runs—a must-have for large industrial plants in the GCC. The "live zero" (4mA representing 0%) is also a built-in failsafe; if the signal drops to 0mA, you know you have a broken wire.
• 0-10V Voltage Signal: This output is a simpler, often more budget-friendly choice when the transducer is close to the control panel, perfect for machine-level monitoring.

Communication Protocol: Analog vs RS485 Modbus

While simple analog outputs get the job done, more sophisticated systems require smarter communication.

• Analog Transducers: These provide a straightforward, one-way stream of data, ideal for dedicated monitoring of a single motor or pump.
• RS485 (Modbus) Transducers: These are a game-changer for integrated systems. A single Modbus-enabled current transducer can be daisy-chained with dozens of other devices on one two-wire bus. This setup feeds data directly into a SCADA or BMS, slashing wiring costs. It’s the perfect approach for any large-scale energy management solution in Dubai.

Physical Form Factor: DIN-Rail vs Wall-Mount

Finally, you must consider how the device will physically fit into your panel.

• DIN-Rail Mount: This is the modern standard for control panels. These transducers snap onto a universal DIN rail, creating clean, organized, and high-density installations.
• Wall-Mount: These offer more flexibility, especially when retrofitting older panels or when DIN rail space is limited.

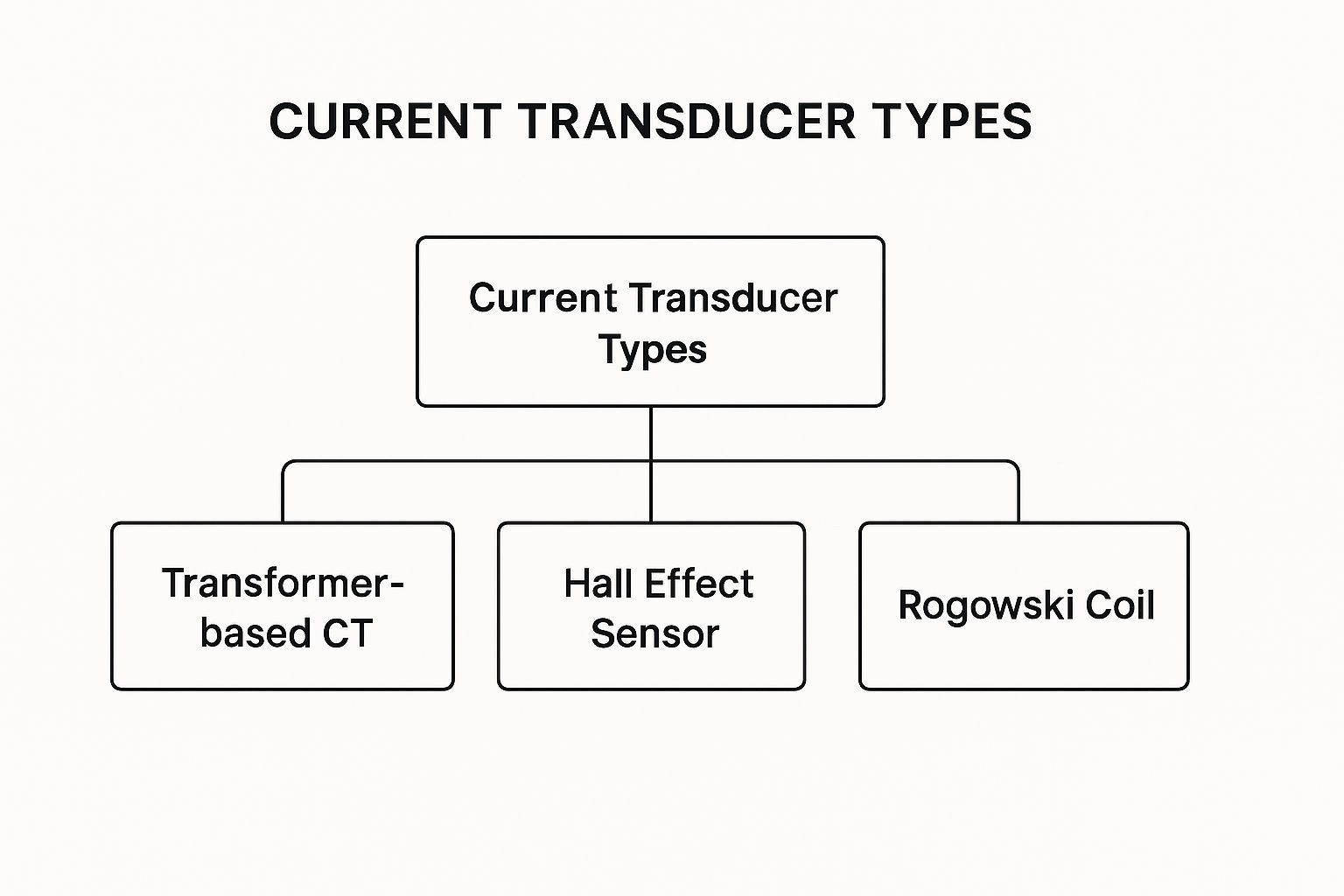

The infographic below shows the core technologies that power these transducers.

This hierarchy makes it clear that the sensing technology is the foundation of the transducer's performance. To dig deeper, it helps to know the difference between a transducer and its close cousin, the transformer. You can learn more in our detailed guide on the current transducer vs transformer.

How to Select the Right Current Transducer for GCC Projects

Picking the right current transducer is a critical engineering choice that underpins the accuracy and reliability of your monitoring system. This decision is even more important for projects across the UAE and the wider GCC, where high heat, humidity, and dust are standard operational challenges. A methodical approach is your best defense against bad data and premature equipment failure.

Matching the Input Range to Your CT

The first, non-negotiable step is matching your transducer to your current transformer (CT). The CT's secondary output is almost always 0-1A or 0-5A, and your transducer must be designed to handle this specific input. A mismatch will instantly overload the transducer, leading to inaccurate readings and component failure. Always double-check the CT’s nameplate.

Choosing the Right Analog Output Signal

Next, decide on the analog output. This choice comes down to the distance the signal needs to travel to your PLC or SCADA system.

• 4-20mA Output: For most industrial setups in the GCC, this is the gold standard. A 4-20mA output is incredibly robust, standing up to electrical noise over long cable runs.
• 0-10V Output: This is a fine choice when the transducer is mounted inside the same control panel as the data acquisition device.

For the vast majority of current monitoring tasks in tough environments, the robustness of a 4-20mA loop makes it the clear winner.

Considering Environmental and Physical Constraints

The GCC’s climate can destroy electrical components. When specifying a current transducer for a project in Dubai or Abu Dhabi, you must look for models with a wide operating temperature range (e.g., up to 70°C) and a solid IP rating (e.g., IP54) to keep dust and moisture out. This is essential for reliability.

Beyond climate, think about the physical fit. DIN-rail mount transducers are standard for modern panels. Trusted brands like Multispan and Rishabh design their components to withstand these tough regional conditions.

Getting the transducer right is just as crucial as picking the right diagnostic tools. For a comprehensive monitoring system, check out our guide on selecting the right power quality meter.

The push for smart grid infrastructure has also put a spotlight on high-performance transducers that require fast response times and pinpoint accuracy. You can read the full research about current transducer market trends to get a better sense of where the industry is heading.

Current Transducer Selection Criteria Checklist

To make this process tangible, here’s a checklist breaking down key decision points for projects in the Gulf region.

Selection Parameter	What to Consider	GoSwitchgear Recommendation (Example)	Why It Matters in the UAE
Input Current Range	Match to your CT's secondary output.	Select a transducer with a 0-5A input to match your 5A secondary CT.	A mismatch will cause overload, damage, and inaccurate data.
Output Signal Type	Distance to PLC/SCADA; noise immunity needs.	4-20mA for runs over a few meters or in electrically noisy environments.	Long cable distances are common in large industrial facilities; 4-20mA prevents signal loss.
Operating Temperature	Check the maximum ambient temperature.	Choose a model rated for -20°C to +70°C.	Essential for reliability in non-air-conditioned panels exposed to sun.
IP (Ingress Protection) Rating	Assess exposure to dust and moisture.	IP54 or higher for dusty industrial sites or outdoor applications.	Protects electronics from sand, dust, and humidity, preventing failure.
Physical Form Factor	Panel space availability and mounting needs.	DIN Rail mount for standardized installation in modern control panels.	Ensures a clean, organized, and serviceable panel build.
Accuracy Class	Criticality of the measurement for control or billing.	Class 0.5 or better for critical process control or energy monitoring.	High accuracy is vital for efficiency calculations and smart grid applications.
Response Time	Need to capture fast-changing current events.	<250ms for applications requiring quick detection of faults.	Fast response is crucial for protective functions in dynamic systems.

Using a structured checklist takes the guesswork out of selection, leading to a more robust and reliable system design.

Installation Best Practices and Common Mistakes to Avoid

A flawless installation is the final, critical step to guarantee accuracy and reliability. For electricians and technicians on job sites across the UAE, getting this part right prevents callbacks and system downtime.

Secure Mounting and Correct Wiring

• DIN-Rail Mounting: Ensure the current transducer is snapped firmly onto the DIN rail. A loose component can cause intermittent faults.
• CT Input Wiring: Use the correct gauge wire and torque terminal screws to the manufacturer’s specification. Loose connections are a prime source of erratic readings.
• Analog Output Wiring: For your 4-20mA output, using a shielded twisted-pair cable is non-negotiable. The shield, grounded at one end (usually the control system side), protects the sensitive analog signal from electrical "noise."

Common Installation Mistakes and How to Fix Them

Mistake 1: Mismatched CT and Transducer Ranges
This is the most frequent and damaging error. Connecting a 0-5A CT to a transducer rated for 0-1A will saturate the input and likely fry the transducer.

• Solution: Always double-check the CT’s nameplate against the transducer's specified input range before wiring. They must match. To better understand how these components work together, learn about protection class current transformers in our guide.

Mistake 2: Incorrect Polarity
Reversing connections on the CT input can throw readings off, while reversing the 4-20mA output loop will stop it from working entirely.

• Solution: Pay close attention to the markings (P1/P2, S1/S2, +, -) and follow the wiring diagram in the datasheet precisely.

Mistake 3: Improper Grounding
Bad grounding invites signal noise, especially in the electrically dense environments of industrial panels in Dubai.

• Solution: Ground the shield of your analog signal cable at one end only, typically the PLC or meter side, to prevent ground loops.

By focusing on these best practices, you ensure the high-quality current transducer you chose can perform to its full potential, delivering the accurate data your system depends on.

Why Buy from GoSwitchgear for Your UAE Projects?

Choosing the right current transducer is a critical step, but partnering with the right supplier is just as important for project success in the UAE. At GoSwitchgear, we provide more than just components; we deliver a complete solution focused on quality, reliability, and local expertise. We are the trusted source for electrical components in UAE.

We stock a wide variety of field-proven brands like Multispan and Rishabh, known for their durability in harsh GCC climates. More importantly, we offer fast delivery across the UAE and expert technical support to ensure you select the perfect AC current transducer for your application. Our Dubai-based team is ready to support your project from specification to installation.

You can see how we've designed our dedicated category page below to make finding the right component as simple as possible.

This clear layout helps you quickly compare models based on critical specs like input range, output type, and Modbus support, saving you valuable time.

Ready to get started? Explore our full range of transducers and related electrical components in the UAE to find the ideal solution for your project. Reach our Dubai team for a quote or project support.

Got Questions About Current Transducers?

Working with current transducers can bring up a few questions. Here are answers to some of the most frequent queries our technical team in Dubai gets from engineers and technicians.

What's the Real Difference Between a Current Transducer and a Current Transformer (CT)?

A current transformer (CT) is a simple, passive device. Its only job is to "step down" a high current to a safer level, usually 0-5A.

A current transducer is an active electronic device that takes the low-level current from the CT and converts it into a standardized analog signal that a PLC or control system can understand, like a 4-20mA output.

In short: A CT makes the current smaller. A transducer translates that smaller current into a language your control systems speak.

Do Current Transducers Need Their Own Power Supply?

Yes, almost always. A current transducer is an active electronic device with internal circuitry for signal conditioning and conversion. This circuitry needs power to operate, typically from a stable 24VDC SMPS power supply. Always account for this auxiliary power source when planning your panel layout.

When Should I Pick a 4-20mA Output Over a 0-10V One?

For most industrial jobs in the GCC, the 4-20mA output is the undisputed champion. A current-based signal is incredibly resilient to electrical noise and can travel over long cable runs without losing integrity.

A 0-10V signal is best for short-distance runs, like when your transducer is inside the same control panel as the meter or PLC. For any application where you need rock-solid current monitoring over more than a few meters, 4-20mA is the professional standard for reliability.

---
