Comprehensive Guide to SPD Terminal Configurations: Understanding 1-Pole, 2-Pole, 3-Pole, and 4-Pole Connections
Surge Protection Devices (SPDs) come with various terminal configurations designed to accommodate different types of electrical systems and poles. The types of terminals in an SPD typically depend on the number of poles and the system configuration. Here’s an overview of the terminal types for each pole configuration with respect to Line (L), Neutral (N), and Protective Earth (PE) terminals:
1-Pole SPD
- Applications: Used in single-phase systems.
- Terminals:
- L (Line): Connection to the phase wire.
- PE (Protective Earth): Connection to the ground.
- No neutral terminal is typically involved unless specified.
2-Pole SPD
- Applications: Used in single-phase systems with L-N protection.
- Terminals:
- L (Line): Connection to the phase wire.
- N (Neutral): Connection to the neutral wire.
- PE (Protective Earth): Optional, depending on the SPD design.
- L-N: Offers protection between the Line and Neutral.
3-Pole SPD
- Applications: Used in three-phase systems without a neutral.
- Terminals:
- L1, L2, L3 (Lines): Connections to the three-phase wires.
- PE (Protective Earth): Connection to the ground.
- L1-L2, L2-L3, L3-L1: Protects between phases.
4-Pole SPD
- Applications: Used in three-phase systems with a neutral connection.
- Terminals:
- L1, L2, L3 (Lines): Connections to the three-phase wires.
- N (Neutral): Connection to the neutral wire.
- PE (Protective Earth): Connection to the ground.
- L-N: Protection between Lines and Neutral.
- L-PE: Protection between Lines and Earth.
Special Configurations
- L-N-PE:
- Typical for single-phase systems.
- Protects between Line-Neutral and Neutral-PE.
- L-L-PE:
- Common in three-phase systems without Neutral.
- Protects between each phase and PE.
- L-N-L-PE:
- For three-phase systems with Neutral.
- Protects between Line-Line, Line-Neutral, and Line-PE.
Key Considerations:
- System Voltage: The SPD’s terminal configuration depends on the system’s voltage and grounding scheme (e.g., TN, TT, IT systems).
- Mounting Type: DIN rail or standalone configurations may affect terminal arrangements.
- Application: SPDs for solar installations, telecom, or industrial setups may have customized terminals.

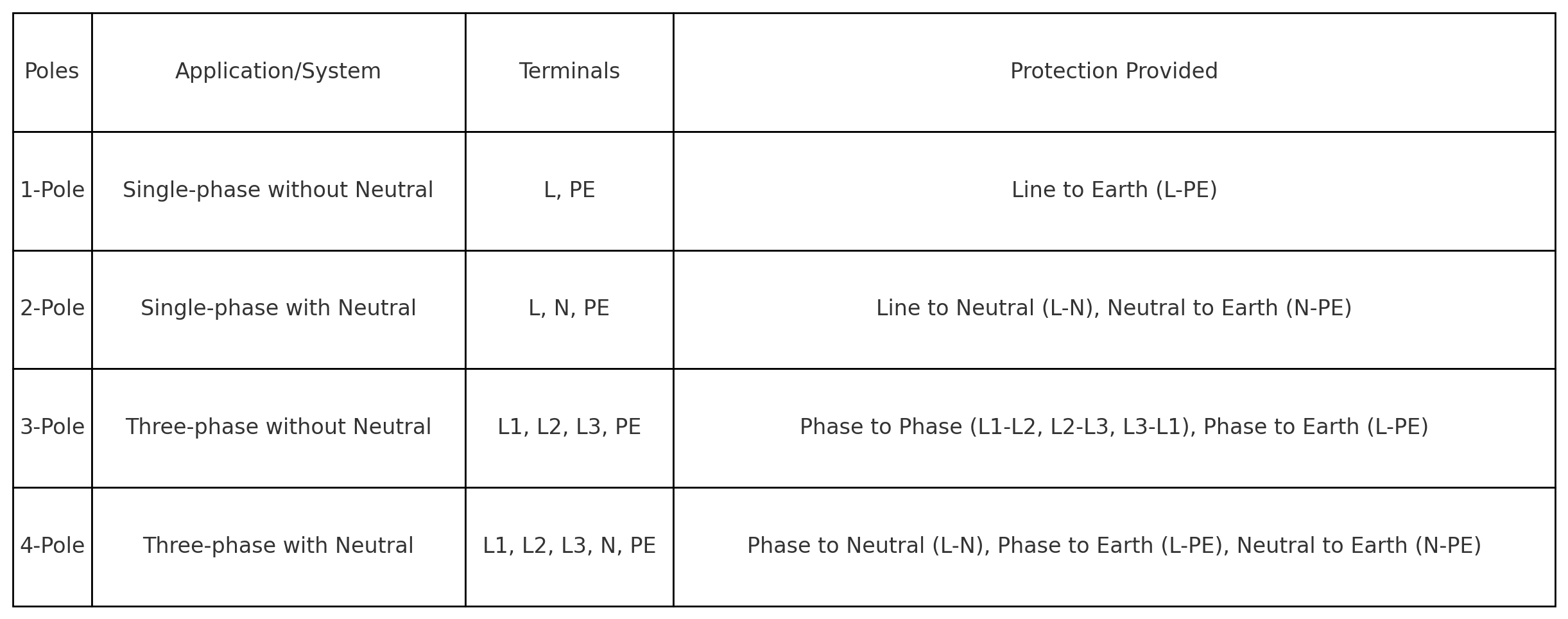

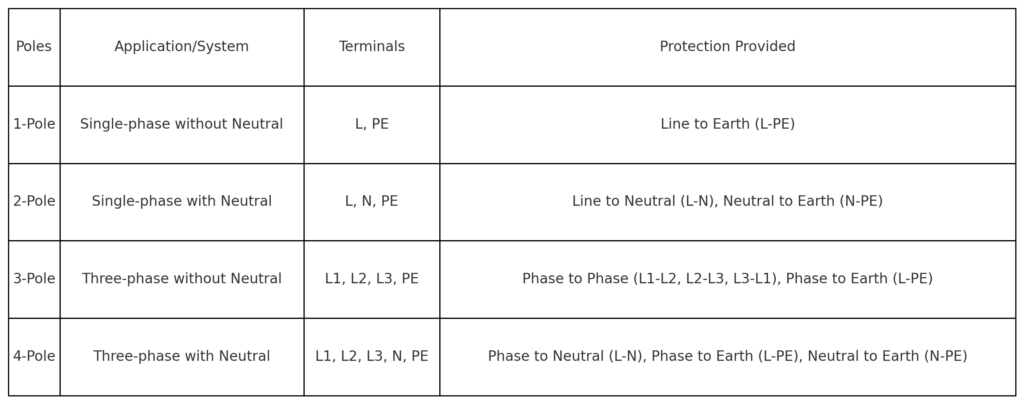

Here’s a table summarizing the terminal combinations for SPDs across different pole configurations and their respective applications:
Poles | Application/System | Terminals | Protection Provided |
---|---|---|---|
1-Pole | Single-phase without Neutral | L, PE | Line to Earth (L-PE) |
2-Pole | Single-phase with Neutral | L, N, PE | Line to Neutral (L-N), Neutral to Earth (N-PE) |
3-Pole | Three-phase without Neutral | L1, L2, L3, PE | Phase to Phase (L1-L2, L2-L3, L3-L1), Phase to Earth (L-PE) |
4-Pole | Three-phase with Neutral | L1, L2, L3, N, PE | Phase to Neutral (L-N), Phase to Earth (L-PE), Neutral to Earth (N-PE) |
Explanation of Terminals:
- L (Line): Represents the live or phase wire in single-phase or three-phase systems.
- N (Neutral): Represents the neutral wire in systems with a neutral conductor.
- PE (Protective Earth): Represents the connection to the grounding system.
- L1, L2, L3: Represent the three-phase conductors in a three-phase system.
