A Comprehensive Guide to Basic Electrical Wiring: Types, Sizes, and Installation

Welcome to our comprehensive guide to basic electrical cables! Whether you’re a beginner or looking to refresh your knowledge, understanding electrical Wiring is crucial for any homeowner or aspiring electrician. But this is a beginner’s guide to electrical Wiring. In this guide, we’ll cover everything from the types of Wiring used in homes to the correct sizes and installation techniques. We shall adhere to the National Electrical Code (NEC) standards and safety regulations to ensure your electrical installations are safe and up to code.

Types of Electrical Wiring in Homes:

1. Non-Metallic Sheathed Cable (NM): Commonly known as Romex, NM cable is widely used in residential Wiring. It consists of insulated conductors bundled together and encased in a plastic sheath, protecting against moisture and physical damage.
2. Armored Cable (AC): AC cable features individually insulated conductors wrapped in a flexible metal sheath, offering better protection against mechanical damage. It’s often used in areas with unsuitable cables, such as exposed Wiring in basements or outdoor applications.
3. Conduit Wiring: Conduit systems use metal or PVC pipes to encase individual wires, providing excellent protection in environments where Wiring may be exposed to moisture, extreme temperatures, or physical damage. Conduit wiring is standard in commercial and industrial settings but can also be found in residential applications.
4. Knob and Tube Wiring: This older wiring method consists of ceramic knobs and tubes to secure and protect individual conductors. While still present in some older homes, knob, and tube wiring is considered outdated and may require upgrading to meet modern safety standards.

Electrical Wiring Sizes and Installation:

• Wire Gauge and Ampacity: You can have enormous wire options at various electrical parts stores. The NEC specifies electrical wires’ ampacity (current-carrying capacity) based on their gauge or size. For example, a 14-gauge wire is commonly used for 15-amp circuits, while a 12-gauge wire is suitable for 20-amp circuits. Adhering to these guidelines ensures wires can safely carry the required electrical load without overheating.
• Proper Installation Techniques: When installing electrical Wiring, it’s essential to follow NEC guidelines for proper spacing, securing, and routing of wires. This helps prevent overheating, reduces the risk of electrical fires, and ensures compliance with safety regulations.
• Grounding and Bonding: Grounding is crucial for electrical safety, providing a path for fault currents to safely dissipate into the ground. All electrical circuits and equipment must be properly grounded according to NEC requirements. Bonding ensures the continuity of electrical conductors and metallic enclosures, enhancing safety and reducing the risk of electrical shock.

Cost of Electrical Wiring for New Homes:

The cost of electrical cables for a new home electrical wiring basics can vary depending on various factors, including the home’s size, the electrical system’s complexity, and local labor rates. On average, homeowners can expect to pay between $1.50 to $3.00 per square foot for electrical wiring installation in a new construction project. Even the home electrical wiring guide suggests the same. However, obtaining multiple quotes from licensed electricians is essential to get an accurate estimate for your specific project.

Practical Tips for Safe Wiring Installation and Maintenance

• Plan Your Wiring Layout: Before starting any wiring project, create a detailed plan outlining the locations of outlets, switches, and fixtures. Consider the electrical needs of each room and ensure proper spacing and circuit allocation to avoid overloading.
• Turn Off Power: Always turn off the power to the circuit you are on at the circuit breaker or fuse box before beginning wiring work. Use a voltage tester to confirm the power is off before touching wires.
• Use the Right Tools and Materials: Invest in quality tools and materials for your wiring projects. This includes wire strippers, pliers, screwdrivers, and appropriate wiring supplies such as cables, connectors, and junction boxes.
• Follow Manufacturer Instructions: When installing fixtures or appliances, follow the manufacturer’s instructions carefully. Improper installation can void warranties and compromise safety.
• Secure Wiring Properly: Use appropriate fasteners, staples, or clips to secure the Wiring in place, ensuring it does not come into contact with sharp edges or other hazards.
• Avoid Overcrowding Junction Boxes: When connecting wires in junction boxes, avoid overcrowding to prevent overheating. Follow NEC guidelines for box fill calculations to determine the maximum number of cables allowed.
• Label Wires and Circuits: Properly label wires, circuits, and breaker switches for easy identification during maintenance or troubleshooting. Use clear, legible labels to avoid confusion.
• Inspect your electrical Wiring regularly for signs of wear, damage, or overheating. Look for frayed insulation, loose connections, or burning smells, and address any issues promptly.
• Upgrade Outdated Wiring: If your home has outdated Wiring, such as knob and tube or aluminum wiring, consider upgrading to modern materials for improved safety and reliability.
• Consult a Professional: For complex wiring projects or unsure of your aspect of electrical work, don’t hesitate to consult a licensed electrician. Offering expert assistance is better than risk safety hazards or code violations.

Remember, safety should always be your top priority when working with electricity. Following these practical tips and best practices ensures that your wiring installations are safe, reliable, and built to last.

Step-by-step guide for installing an essential electrical outlet:

But wait, there’s more! Let’s dive into a step-by-step guide for installing an essential electrical outlet:

Step 1: Turn off the power to the circuit at the breaker or fuse box.

Step 2: Remove the cover plate from the existing outlet or switch.

Step 3: Use a circuit tester to verify the power is off.

Step 4: Disconnect the wires from the existing outlet or switch, noting their locations.

Step 5: Install a new electrical box if necessary, ensuring it’s securely anchored to the wall.

Step 6: Strip the insulation from the ends of the wires, exposing approximately 1/2 inch of bare wire.

Step 7: Connect the black (hot) wire to the brass-colored screw terminal, the white (neutral) wire to the silver-colored screw terminal, and the bare or green (ground) wire to the green screw terminal.

Step 8: Carefully fold the wires into the electrical box, avoiding overcrowding.

Step 9: Secure the outlet or switch to the electrical box using screws provided.

Step 10: Install the cover plate and restore power to the circuit.

Step 11: Test the outlet or switch to ensure it’s functioning correctly.

By following these steps and adhering to safety precautions, you can install electrical outlets confidently and safely.

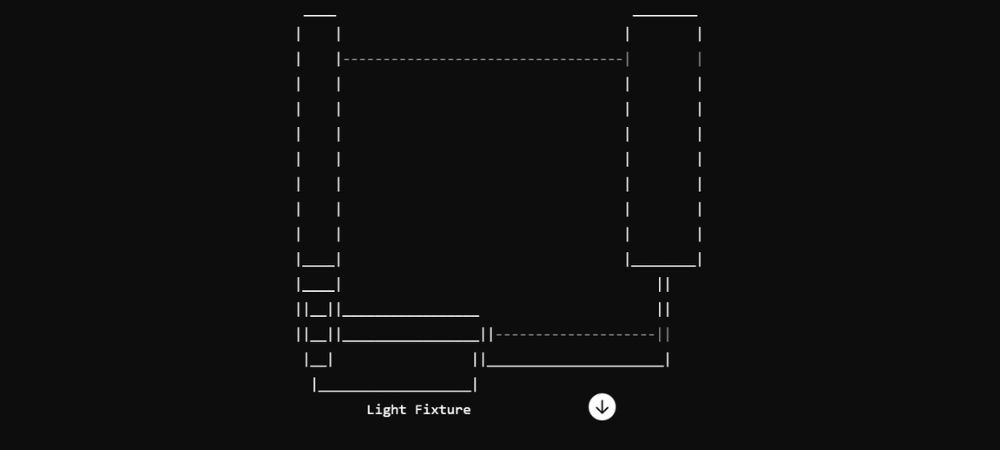

Here below you have the basic electrical wiring diagram:

Components:

• Power Source: Represents the electrical supply, typically from a circuit breaker or fuse box.
• Switch: Controls the flow of electricity to the light fixture. It can be a toggle switch, rocker switch, or any other type.
• Light Fixture: Represents a ceiling light, wall-mounted light, or any other lighting device.
• Wires: Conductors that carry electrical current between components. In this diagram, wires connect the power source, switch, and light fixture.

Wire Color Codes:

• Black: Hotwire carries the electrical current from the power source.
• White: Neutral wire completes the electrical circuit and returns current to the power source.
• Green or Bare: Ground wire provides a path for fault currents to safely dissipate into the ground.

This primary circuit operates as follows:

• The circuit is open when the switch is in the “off” position, and no electricity flows to the light fixture.
• When the switch is flipped to the “on” position, the circuit closes, allowing electricity to flow from the power source to the light fixture.
• The light fixture receives power and illuminates, providing light in the room.
• Flipping the switch back to the “off” position breaks the circuit, cutting off power to the light fixture and turning it off.

This simple wiring diagram demonstrates the fundamental principles of electrical circuits and is a starting point for understanding more complex wiring configurations.

Electrical wiring size chart:

Here’s a basic electrical wiring size chart based on the ampacity (current-carrying capacity) of different wire gauges according to the National Electrical Code (NEC). This chart provides general guidance for selecting the appropriate wire size for typical household applications:

Wire Gauge (AWG)	Amperage Capacity*	Typical Use
14	15	Lighting circuits, general receptacle circuits, smoke detectors
12	20	Kitchen countertop outlets, bathroom receptacles, laundry room circuits
10	30	Electric water heaters, large appliances (dryers, ovens)
8	40	Air conditioning units, electric furnaces
6	55	Electric ranges, large HVAC units
4	70	Subpanels, heavy-duty equipment, industrial applications

*Note: These ampacity ratings are based on typical household wiring with copper conductors and assume a maximum temperature of 60°C (140°F) for ambient air and conductor temperatures.

Remember that local electrical codes and specific applications may require different wire sizes. Always consult the NEC or a licensed electrician for accurate sizing and installation guidance. Additionally, voltage drop considerations may influence wire size selection for longer runs or high-power applications.

Conclusion:

Understanding basic electrical wiring is essential for home construction, renovation, or maintenance. By familiarizing yourself with the types of wiring, wire ducts, correct sizes, and proper installation techniques, you can ensure that your electrical installations are safe, reliable, and up to code. Always consult the National Electrical Code (NEC) and local regulations when planning and executing electrical work to prioritize safety and compliance. If you’re uncertain about any aspect of electrical work or tackling complex wiring tasks, it’s strongly recommended to seek professional help. Consider browsing the selection at GoSwitchGear for high-quality single-core cable wire options and expert assistance with your electrical projects.
