Two Pole Single Module SPD for Roadway & Parking Lighting Projects in Abu Dhabi
When working on public lighting projects in Abu Dhabi, particularly those governed by TAMM and ADDC standards, it’s essential to select components that meet rigorous safety and technical specifications. One such component is the Surge Protection Device (SPD) – critical for protecting LED luminaires against electrical surges in outdoor environments.
⚡ Why Surge Protection Is Mandatory for Roadway Lighting Projects?
According to the Abu Dhabi Lighting Manual – Version 3.0, LED luminaires installed in roadways and parking areas must be provided with SPDs that conform to:
- IEC/EN 61547 up to 6 kV, or
- IEEE/ANSI C62.41.2 Scenario I, Location Category C up to 6kV/6kA
- Additionally, the SPD must protect against common-mode and differential-mode surges and connect to L, N, and PE lines.
The SPD should be capable of:
- Handling a minimum of 10kV/10kA discharge
- Offering visual status indication (Green/Red)
- Designed to fail safely before luminaire failure
- Installed in series with the luminaire’s internal SPD

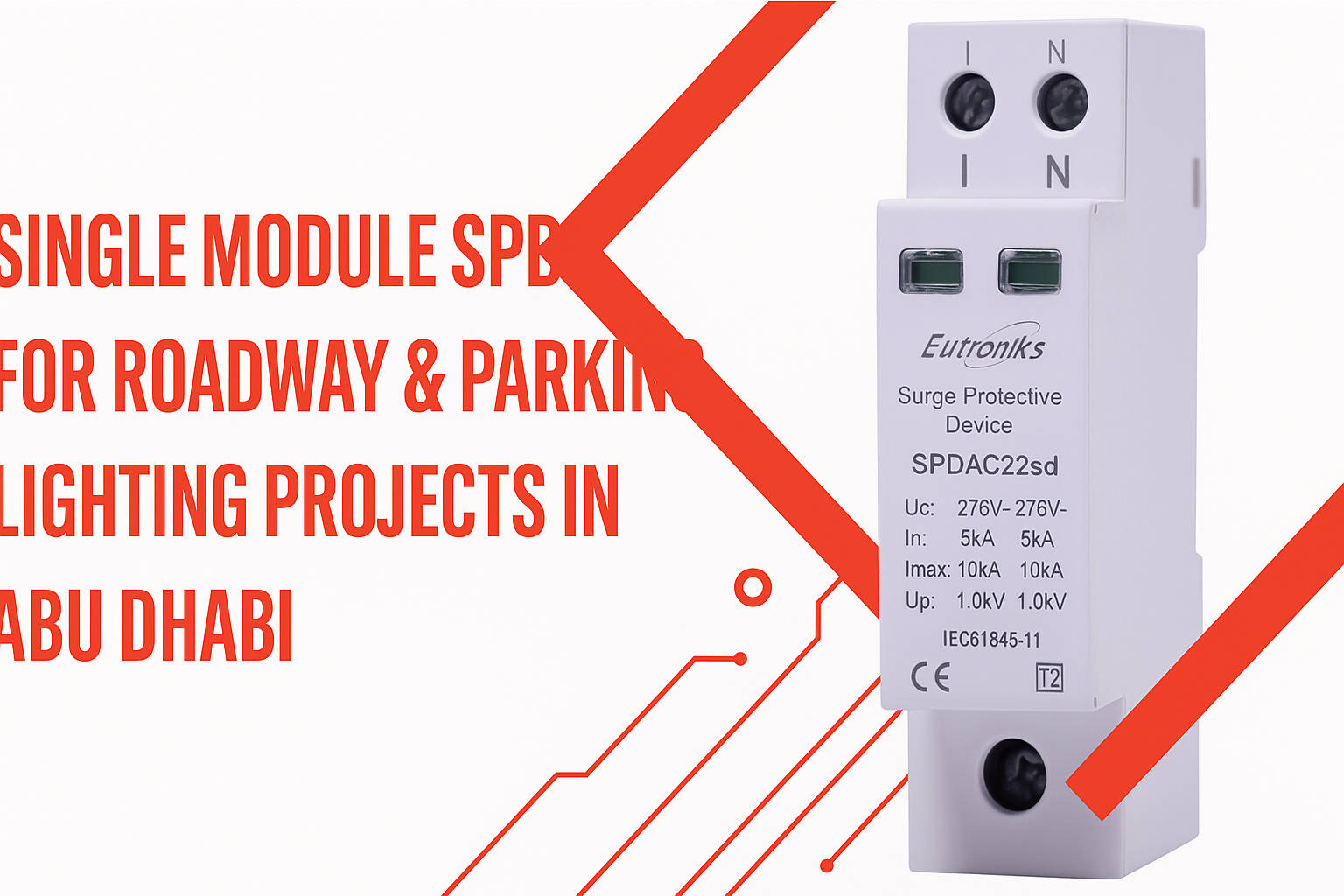

🔧 Eutroniks SPDAC22SD – Fully Compliant and Proven in Abu Dhabi
We supplied the Eutroniks SPDAC22SD — a Type 2, 2-pole, single module SPD — for a roadway lighting project in Abu Dhabi, and it passed all required specifications under the TAMM/ADDC guidelines.
✅ Key Technical Highlights:
| Specification | Eutroniks SPDAC22SD |
|---|---|
| Standard Compliance | IEC/EN 61643-11 (Class II / Type 2) |
| Max. Operating Voltage (Uc) | 275V AC |
| Nominal Discharge Current (In) | 5kA (8/20µs) |
| Maximum Discharge Current (Imax) | 10kA (8/20µs) |
| Voltage Protection Level (Up) | 1.0kV |
| Response Time | <25 ns |
| Poles | 2-pole |
| Installation | 35mm DIN rail |
| Visual Status Indication | Green = OK, Red = Replace |
| Remote Signal Contact (optional) | Yes (C+NO/C+NC) |
| Operating Temp. Range | -40°C to +80°C |
| Housing | UL94-V0 Flame Retardant |
🔌 Installation Snapshot – In Line With TAMM Requirements
The SPDAC22SD was installed with:
- 10A MCBs per phase
- DIN-rail mounting in luminaire pole base
- Full connectivity to L, N, and PE
- Visible status window for maintenance teams
The project complied with section 3.3.15 of the Abu Dhabi Lighting Manual, ensuring:
- Series connection with internal SPD
- Proper earthing to EN/IEC 60598-1
- Clear fuse protection to avoid a fire hazard in case of SPD failure
🏗️ Why Choose Eutroniks SPD for Your TAMM-Compliant Projects?
- ✅ Approved and used in real TAMM projects
- ✅ Readily available in the UAE via GoSwitchgear
- ✅ Meets all surge, earthing, and installation criteria
- ✅ Compact single module design saves space in pole base enclosures
📝 Final Words
For contractors and consultants working on TAMM-compliant roadway and parking lighting installations, the Eutroniks SPDAC22SD is a proven, compliant, and compact solution. With a solid track record and technical conformity, it takes the guesswork out of your procurement process.
📦 Ready to order?
Buy Eutroniks SPDAC22SD – 2 Pole Type 2 SPD (275V, 10kA)
