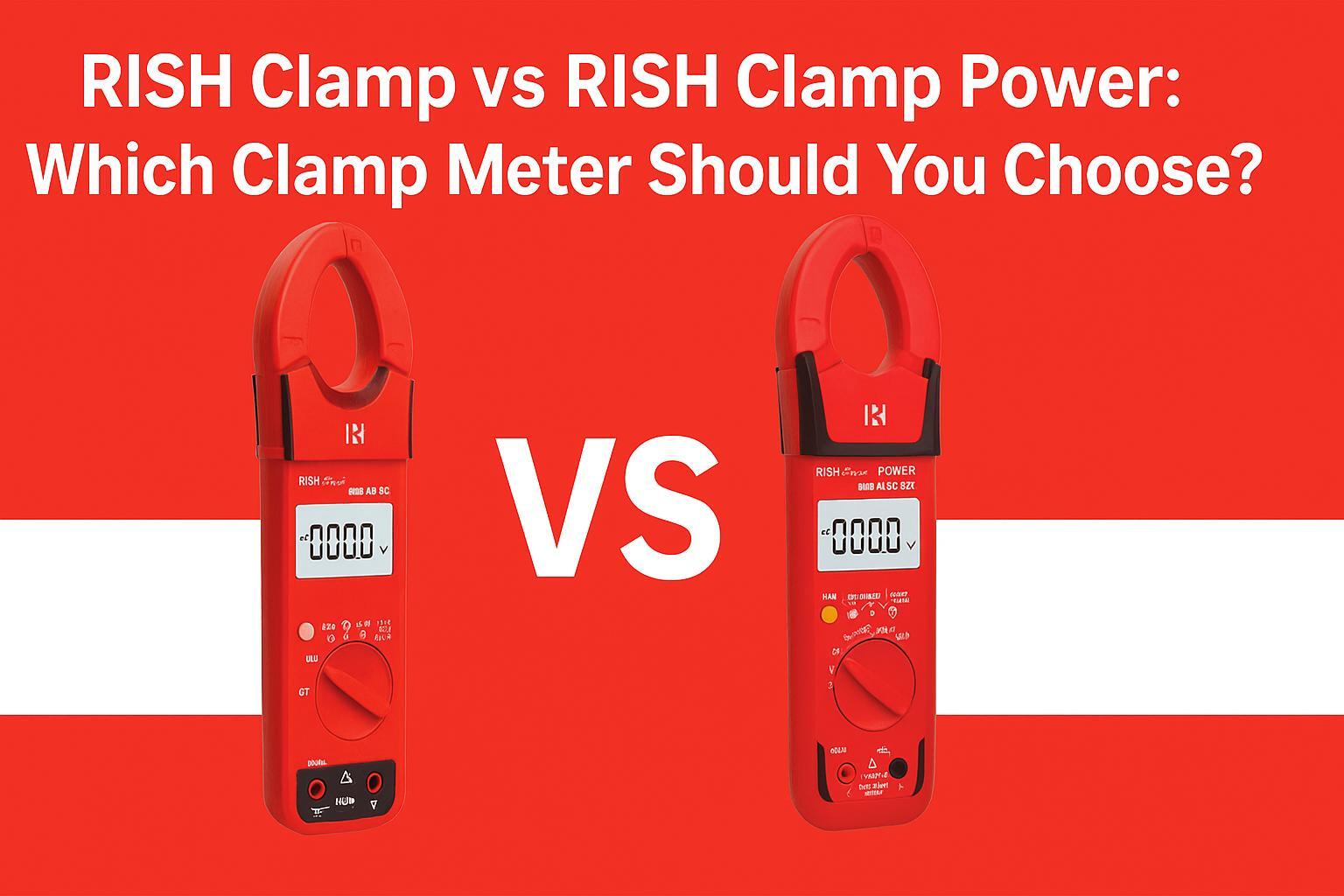

RISH Clamp vs RISH Clamp Power: Which Clamp Meter Should You Choose?
Selecting the right clamp meter is critical when working in industrial or energy monitoring environments. Rishabh Instruments, known for its high-quality electrical testing equipment, offers two popular clamp meters: the RISH Clamp 1000A and the RISH Clamp Power 1000A. While both meters share some features, they serve different purposes. Here’s a verified and detailed comparison to help you choose the right tool for your needs.
🔍 What Are They Designed For?
- RISH Clamp 1000A AC/DC A robust and easy-to-use clamp meter for measuring current, voltage, resistance, frequency, continuity, and diode functions. Ideal for maintenance electricians and general troubleshooting in commercial and industrial environments.
- RISH Clamp Power 1000A AC/DC A more advanced meter designed not just to measure current and voltage, but to analyze power quality, making it perfect for energy audits and 3-phase system diagnostics. It supports real-time power factor, THD, harmonic analysis, and energy (kWh) readings.
⚙️ Technical Comparison Table
| Feature | RISH Clamp 1000A AC/DC | RISH Clamp Power 1000A AC/DC |
|---|---|---|
| Current & Voltage (AC/DC) | Yes | Yes |
| Resistance / Continuity / Diode | Yes | Yes |
| Frequency Measurement | Yes | Yes |
| Power Measurement (W, kVA, kVAr) | No | Yes |
| Energy Measurement (kWh) | No | Yes |
| Power Factor & Phase Angle | No | Yes |
| Total Harmonic Distortion (THD) | No | Yes |
| Harmonics (Up to 49th Order) | No | Yes |
| Crest Factor Measurement | No | Yes |
| Inrush Current Measurement | Yes | Yes (More Advanced) |
| LPF Mode (for VFD) | No | Yes |
| Three Phase Power Analysis | No | Yes |
| Display Type | LCD with backlight | Dual LCD with backlight and simultaneous parameter view |
| Jaw Opening | 51 mm (1000A model) | 51 mm (1000A) / 41 mm (400A) |
| Safety Category | CAT IV 600V / CAT III 1000V | CAT IV 600V / CAT III 1000V |
| Application | Maintenance, Troubleshooting | Energy Audits, Power Quality, 3-Phase Load Analysis |
📊 Use Case Comparison
| Use Case | RISH Clamp | RISH Clamp Power |
|---|---|---|
| Residential/Light Industrial Electrical Checks | ✅ | 🚫 Overkill |
| Panel Load Monitoring | ✅ | ✅ |
| Power Consumption Analysis | 🚫 | ✅ |
| Harmonic/Power Quality Analysis | 🚫 | ✅ |
| Energy Audit Support | 🚫 | ✅ |
| Detailed Load Profiling | 🚫 | ✅ |
🚑 When Should You Choose Which?
Choose the RISH Clamp 1000A if you:
- Need a solid multimeter with clamp functionality
- Perform general maintenance or installation checks
- Want a cost-effective solution for basic measurements
Choose the RISH Clamp Power 1000A if you:
- Perform energy audits and power quality diagnostics
- Need real-time measurements of power factor, harmonics, or energy consumption
- Require detailed 3-phase load analysis for industrial systems
📄 Verified Product Resources:
- RISH Clamp 1000A Product Page
- RISH Clamp Power 1000A Product Page
- Download RISH Clamp Datasheet
- Download RISH Clamp Power Datasheet
✅ Final Thoughts
If you’re looking to measure current and voltage in your electrical system, the RISH Clamp 1000A offers everything you need. However, if your role demands deeper insights into power quality, consumption, and diagnostics, the RISH Clamp Power 1000A is an excellent investment that pays off in accuracy and insight.
Need help selecting or sourcing these meters? Contact us at GoSwitchgear.ae for fast delivery across Dubai and the UAE.
