A Guide to Understanding Low Voltage Switchgear Systems

Quick Summary

• Switchgear is an electrical equipment that is made up of circuit breakers, fuses, and switches. Switchgear is used to protect, control, and isolate electrical equipment.
• Low-voltage switchgear is an electrical equipment that is designed to manage and protect electrical power systems. These devices operate at voltages below 1,000 volts (V).
• Low-voltage switchgear has three main parts: the breaker compartment, bus compartment, and cable compartment. These parts can have two varying setups, i.e., front-access switch gears and rear-access switchgear.
• The difference between high and low-voltage switchgear lies in the amount of voltage they handle. A low-voltage switchgear operates on voltages below 1000 volts, while a high-voltage switchgear operates on voltages above 1000 volts.

What is a Switchgear?

Switchgear is an electrical equipment that is made up of circuit breakers, fuses, and switches. Switchgear is used to protect control and isolate electrical equipment in case of over voltage or under voltage.

You can commonly find switchgear everywhere, i.e., through electric utility transmission and distribution. You can even find them in medium to large-sized commercial and industrial buildings.

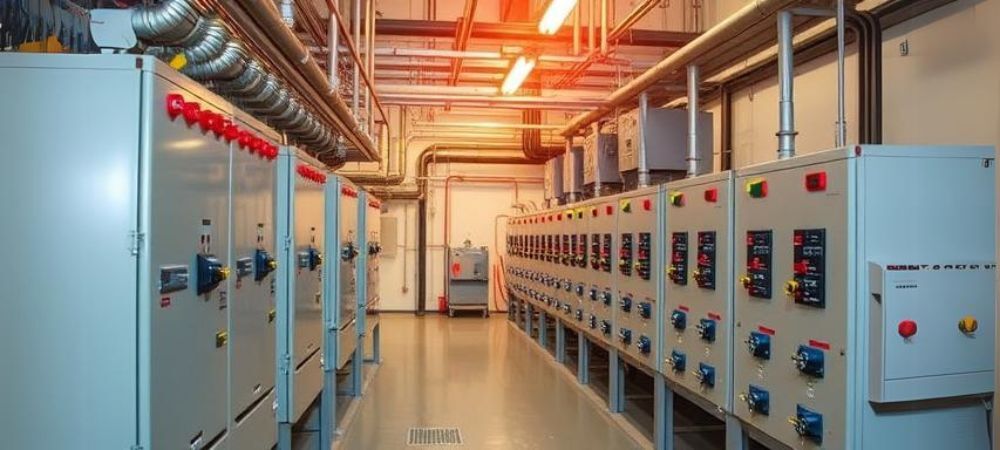

What is Low Voltage Switchgear?

• Low voltage switchgear is an electrical equipment that is designed to manage and protect electrical power systems. These devices operate at voltages below 1,000 volts (V). It is necessary for controlling, protecting, and isolating electrical circuits and devices.
• A LV switchgear consists of various components such as circuit breakers, contactors, and fuses. All of these components work together to make sure that the power distribution is safe and reliable.
• In short, low-voltage switchgear is used in electrical distribution systems, ensuring efficient energy management while protecting equipment from overloads and faults.
• The main difference between high and low-voltage switchgear lies in the amount of voltage they can handle. Low-voltage switchgear operates on voltages below 1000 volts, while high-voltage switchgear operates on voltages above 1000 volts.

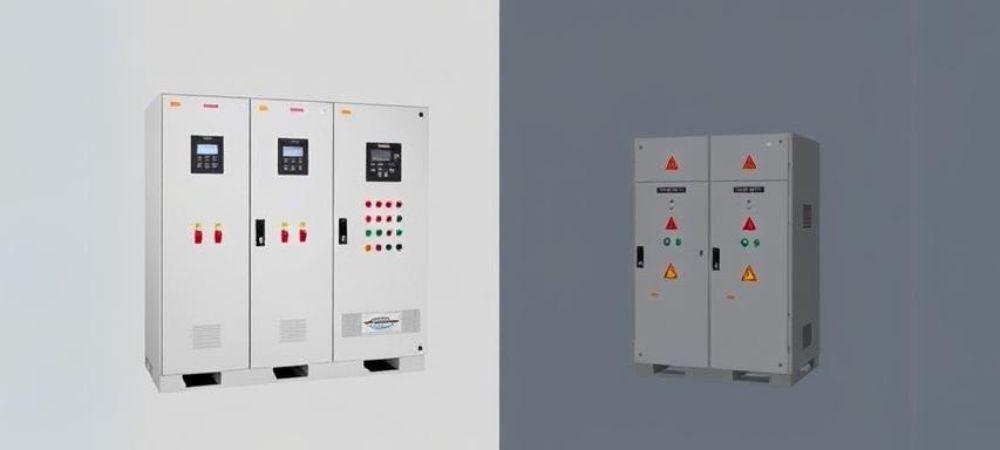

Main Parts of Low Voltage Switchgear

The main parts of low-voltage switchgear include:

• Breaker compartment

This section holds the power circuit breakers, which are arranged vertically. Each breaker is placed in its own separate space to make sure they do not interfere with one another. This isolation of circuit breakers helps prevent issues from spreading between breakers, which makes them safe and reliable.

• Bus compartment

The vus compartment is located behind the breaker compartment and holds the busbars. Busbars are conductive bars that distribute electrical power. Solid barriers are used to separate the bus compartment from the breaker compartment. Moreover, the adjacent bus compartments are also separated from each other using insulated barriers.

• Cable compartment

The cable compartment is present at the back of the switchgear, and this is where the line and load cables connect. This compartment also has hinged doors or removable covers so that technicians can have easy access for maintenance. This section is often separated from the bus compartment with either vented or solid barriers.

This setup can come in two variations:

• Rear-Accessible Switchgear:

The cable compartment is at the back and needs to be accessed from the rear.

• Front-Accessible Switchgear:

The cable compartment is next to the breaker compartment, which has doors on the front. The front-accessible switchgear has a slimmer design and allows the switchgear to be placed against a wall, much like a switchboard.

The Role of Low Voltage Switchgear in Electrical Systems

Low-voltage switchgear systems perform various roles, including:

• Power Distribution:

Switchgear manages and distributes electric power to different circuits; these balance the load distribution and minimize the loss of energy.

• Protection:

Switchgear also protects electrical equipment from electrical faults, which helps prevent accidents, equipment damage, and electrical fires.

• Isolation:

Switchgear also isolates the electrical circuits so that they can be maintained safely during emergencies.

• Monitoring and Control:

Some modern low-voltage switchgear lets you monitor the performance of the system and lets you control and respond quickly in case of emergencies and potential issues.

Difference Between Low and High Voltage Switchgear

The main difference between low and high-voltage switchgear lies in the voltage they can handle, but there are several other technical differences.

• Voltage Levels:

Low-voltage switchgear usually operates at voltages that are below 1000 volts (V), while high-voltage switchgear operates on voltage levels that are higher than 1000 V and are usually between 1KV and 400 KV.

• Construction and Design:

High-voltage switchgear has a gas-insulated or vacuum-insulated system that can manage the electrical arch and provide insulation. On the other hand, low-voltage switchgear makes use of air insulation or simple safety mechanisms, focusing more on circuit breakers for fault clearing.

• Applications:

Low-voltage switchgear is used in setups where the equipment operates at lower voltages, such as homes, office buildings, and small manufacturers. At the same time, high-voltage switchgear is commonly used in utility and industrial applications, where a large amount of power is needed to be managed and distributed.

• Maintenance Requirements:

The maintenance of high-voltage switchgear requires strict safety protocols as higher risk is associated with higher voltages. On the other hand, low-voltage switchgear maintenance needs comparatively simpler safety protocols.

Benefits of Low Voltage Switchgear

Investing in low-voltage switchgear has several advantages, including:

• Improved Safety:

Low-voltage switchgear has built-in protection mechanisms that reduce the risk of electrical hazards, making sure that the working environment is safe.

• Energy Efficiency:

These also distribute and manage electrical power efficiently, reducing the consumption of energy and operational costs.

• Reliability:

A good-quality low-voltage switchgear makes the electrical systems more reliable and reduces the chances of downtime and maintenance costs.

• Scalability:

Most of the low-voltage switchgear systems are modular, which means that they can be expanded according to your growing power needs.

• Cost-Effectiveness:

Low-voltage switchgear is generally less expensive to install and maintain than high-voltage switchgear, which makes them a practical choice for many applications.

Low Voltage Switchgear Maintenance

With proper low-voltage switchgear maintenance, you can make sure that your electrical systems stay durable and perform well. Here is how you can maintain your low-voltage switchgear.

• Regular Inspections

Conduct routine inspections and identify signs of wear and tear, corrosion, loose connections, or other issues that could compromise the performance of the system.

• Electrical Testing

Conduct insulation resistance testing, thermal scanning, and contact resistance measurements. These tests can identify potential issues such as insulation degradation and overheating components. Such issues can lead to faults in the electrical systems if left unaddressed.

• Calibration

Regular calibration can make sure that the system responds to faults efficiently.

• Thermal Imaging

Thermal imaging technology, such as infrared cameras, can be used to identify hotspots and potential failures before they lead to emergency situations.

Over to You

Low-voltage switchgear is an essential part of electrical systems nowadays; these play major roles in power distribution, protection, and control. By understanding low-voltage switchgear, its components, the functions they perform functions, and their maintenance needs, you can make sure that the operations are safe and efficient in different applications.

For more information on low-voltage switchgear systems and to explore solutions, visit Go Switchgear.

FAQs

Q: What is low-voltage switchgear?

A: A Low voltage switchgear is an electrical equipment that is designed to manage and protect power systems operating below 1,000 volts.

Q: How does low-voltage switchgear differ from high-voltage switchgear?

A: The main difference between low-voltage switchgear and high-voltage switchgear lies in the voltage levels they handle. Low-voltage switchgear operates on voltages below 1,000 volts, while high-voltage switchgear operates on voltages above 1000 volts.

Q: What are the benefits of using low-voltage switchgear?

A: There are many benefits to using low-voltage switchgear, including improved safety, energy efficiency, reliability, scalability, and cost-effectiveness.

Q: What should I do if I notice issues with my low-voltage switchgear?

A: If you notice any problems, such as unusual noises or overheating, we recommend consulting with a qualified electrician or technician immediately for evaluation and repairs.
