Understanding Capacitor Bank (Uses, Advantages & How They Work)

Capacitor banks are essential components of electrical systems. They store electrical energy and help improve power efficiency, which means that these devices make the use of electricity more efficient.

In this article, we’ll explore how capacitor banks work, the different types available, and their various applications in industries. We’ll also discuss the advantages of using them, such as reducing energy costs and improving system reliability.

Whether you’re an electrical engineer or just interested in power systems, this guide will give you a clear understanding of capacitor banks and their importance in electrical systems.

What is a Capacitor Bank?

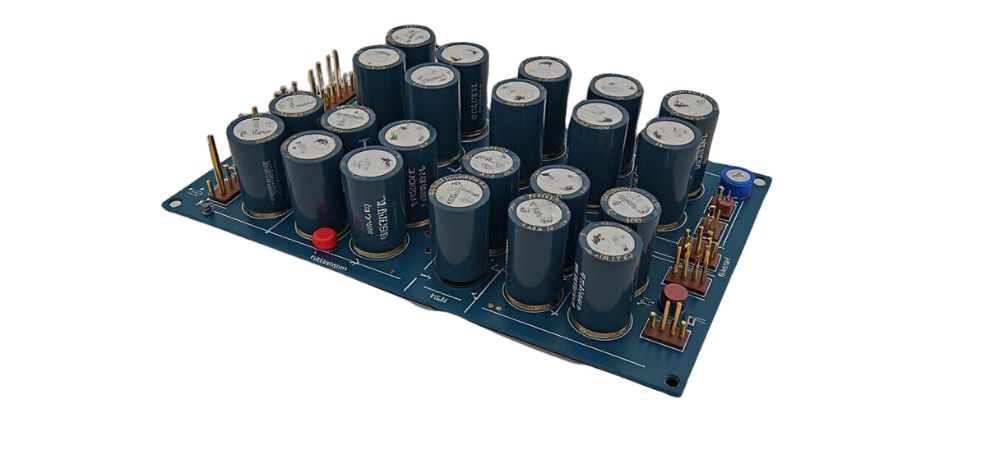

A capacitor bank is an assembly of multiple capacitors and is designed to manage and store electrical energy efficiently. The multiple capacitors in a capacitor bank have identical characteristics and are interconnected in either series or parallel arrangements to meet specific voltage and current requirements. This modular setup facilitates the storage of energy and improves the control of energy flow in various devices and applications.

These devices play a critical role, specifically in environments with high demand, such as an electrical grid, where they provide a rapid response by improving storage capability. This ability to adapt optimizes the performance of the system based on the demand of each application.

When capacitor banks are used strategically in an electrical system, such as a power distribution network, their stability and efficiency are improved. These also reduce the phase difference between the voltage and current in power factor correction.  This results in the reduction of receive power, which further leads to a reduction in energy loss and cuts down the operational cost. Since capacitor banks improve power quality in transmission networks, they offer a reliable and cost-effective source of energy supply. This makes them suitable for high-demand environments such as industrial sites and major power installations.

How Capacitor Banks Work

A capacitor bank combines the strength of various capacitors to improve the storage capacity of an electrical system. The capacitor consists of two conductive plates, either made of aluminum or tantalum. These plates are separated by a dielectric material such as ceramic, glass, or treated paper. The main function of a capacitor is to store electrical energy between the plates in the electrostatic field.

The capacitance, or the amount of charge a plate can store, will depend on various factors, including the surface area of the plates, the distance between the plates, and the properties of the dielectric material.

When a capacitor is connected to a power source, electrons are collected on the plate that is connected to the negative terminal, and this creates a dense electrostatic field. Once the electrostatic field is created, the capacitors will retain their charge even if they are disconnected from the source of energy, making them a temporary energy reservoir.

The operation of a capacitor bank revolves around reactive power compensation and power factor correction. The primary function is to manage the reactive power in electrical systems, which is essential for maintaining voltage levels and ensuring efficient power delivery.

Reactive power is the power that oscillates between the source and load, primarily due to inductive loads like motors and transformers. Capacitor banks provide leading reactive power, effectively canceling out the lagging reactive power, thereby improving the overall power factor of the system.

Key Components:

Here are the Key components of a capacitor bank:

• Capacitors: Store electrical energy and release it as needed.
• Fuses: Protect the system from overcurrent conditions.
• Reactors: Limit inrush currents and provide harmonic filtering.
• Controllers: Automatically manage the operation of the capacitor bank based on system demand.

How Does a Capacitor Bank Improve Power Factor?

There are various ways of improving power factor, and one of them is the use of power factor correction capacitors.

So, how does a capacitor bank improve the power factor?

In an AC circuit, the magnetic reversal due to the phase difference occurs almost 50 to 60 times in a second. A capacitor bank for power factor correction stores this energy required for magnetic reversal and relieves the supply line of reactive power.

What is the Power Factor?

Power factor is basically the measure of how efficiently an AC power system would use the supplied power. It is the ratio of real power (P) to apparent power (S). Real power is the power that performs useful work, while apparent power is the product of voltage (V) and current (I). It can also be represented as the cosine of the angle between voltage and current. This relationship is defined mathematically as follows:

Power Factor = 𝑃/𝑆 = VI cos 𝜃

The ideal power factor is 1, meaning all the power supplied is converted into useful power, and there is no reactive power left in the system. What is reactive power? Reactive power is a type of power that continuously flows between the source and the load. It performs no task but causes losses and reduces efficiency. This flow of reactive power is due to the presence of inductive or capacitive elements, such as motors, transformers, capacitors, etc.

The power factor of a system can range between 0 and 1. The lower value of the power factor means that there is a higher need for reactive power, and the supplied power is not being used efficiently, while a high value of the power factor means the opposite.

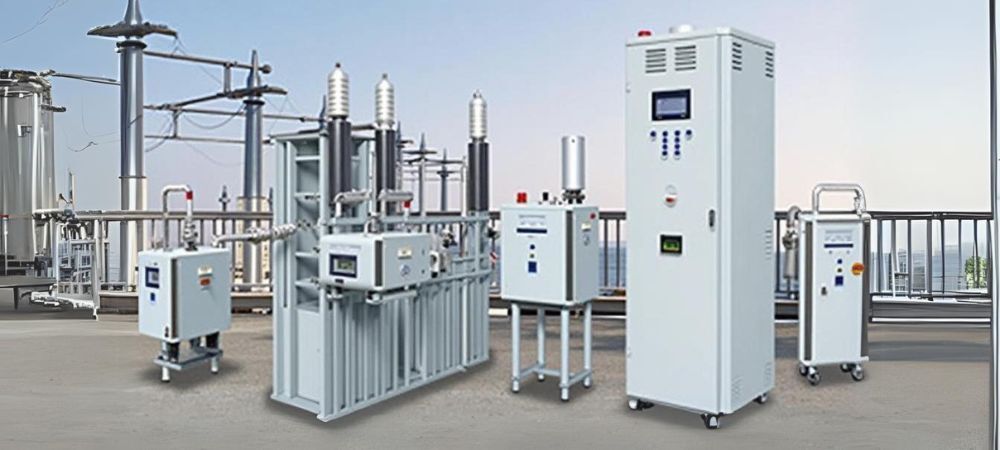

Types of Capacitor Banks

There are several types of capacitor banks utilized in various applications:

1. Shunt Capacitor Banks

Shunt capacitor banks are connected in parallel with the load at specific points in the system, such as capacitor banks in substations and feeders. They provide leading reactive power that improves power factor and reduces line losses. These are commonly used in industrial settings and can be switched on or off based on load variations.

2. Series Capacitor Banks

Series capacitor banks are connected in series with the load. They reduce circuit impedance and help manage voltage stability. These banks are particularly effective in long transmission lines where voltage drops can occur.

3. Fixed Capacitor Banks

These banks have a constant capacitance and are typically used where reactive power requirements are steady and predictable.

4. Automatic Capacitor Banks

Equipped with controllers, automatic capacitor banks adjust their output based on real-time demand, providing a dynamic response to fluctuating loads.

Capacitor Bank Uses

Capacitor banks find extensive use across various industries:

• Power Distribution: Utilized in substations to enhance voltage stability and reduce losses.
• Capacitor Bank for Industrial Use: Employed in manufacturing plants to maintain power quality and improve efficiency.
• Commercial Facilities: These are used in commercial buildings to optimize energy consumption and lower utility costs.

Advantages of Using Capacitor Banks

The benefits of capacitor banks are multifold:

• Improved Power Factor: Enhances the overall efficiency of the electrical system.
• Reduced Harmonic Distortion: Mitigates issues related to harmonics, improving power quality.
• Increased System Capacity: Allows for higher loads without necessitating upgrades to existing infrastructure.
• Voltage Regulation: Stabilizes voltage levels across the system, enhancing equipment performance.

How to Size a Capacitor Bank

Sizing a capacitor bank involves careful calculations based on the system’s reactive power requirements. Moreover, it also depends on several factors, including:

• The required power factor improvement
• The required reactive power compensation
• The type of the capacitor and its location
• The voltage levels of the system
• The frequency of the system
• The load characteristics and variations

The basic formula for calculating the required capacitance (C) is:

C = Q/V2f (for a shunt capacitor)

C = 1/(2𝜋fX) (for a series capacitor)

Where

C = Capacitance (in farads)

Q = Reactive power (in VAR)

V = Voltage (in volts)

f = Frequency (in hertz)

X = Reactance (in ohms)

Correct sizing is crucial to avoid issues such as overcompensation, which can lead to resonance and system instability.

Capacitor Bank Maintenance

Regular capacitor bank maintenance is essential to ensure longevity and optimal performance. Key aspects include:

• Visual Inspections: Checking for signs of wear or damage.
• Testing: Conducting electrical tests to ensure proper function and integrity.
• Cleaning: Keeping terminals and surrounding areas free from debris and contaminants.
• Protection: Implementing overvoltage and overheating safeguards to prevent failures.

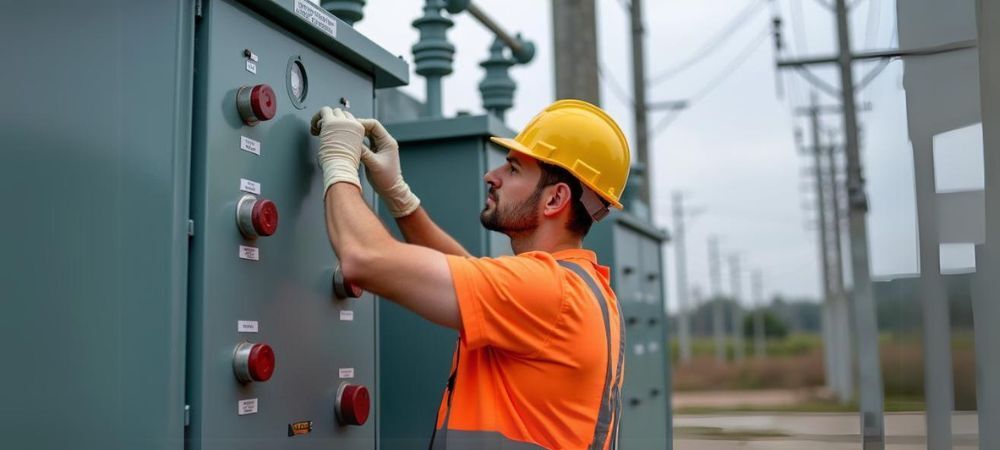

Installation and Safety Considerations

The installation of capacitor banks requires adherence to strict safety guidelines:

• Insulation Levels: Make sure there is appropriate insulation for the voltage rating of the system.
• Grounding Practices: Practice grounding to reduce the chances of shock hazards.
• Surge Protection: Install surge protectors to safeguard against voltage spikes.
• Arc Flash Prevention: Use proper personal protective equipment (PPE) and follow arc flash safety protocols.

Over to You

Capacitor banks in electrical engineering are essential components, offering solutions for improving power efficiency and reliability in various applications. Their ability to correct power factors, manage reactive power, and enhance voltage regulation makes them essential to your electrical systems.

Visit Go Switchgear today to explore our range of power factor correction capacitors!

Find everything you need to optimize your systems and ensure peak performance at our electrical parts store.

FAQs

Q: What is a capacitor bank?

A: A capacitor bank is a collection of capacitors connected in series or parallel to store electrical energy, which is primarily used for power factor correction and voltage stabilization.

Q: How do capacitor banks work?

A: They provide reactive power to compensate for inductive loads, thereby improving the power factor and reducing energy losses in the system.

Q: What are the types of capacitor banks?

A: The main types include shunt, series, fixed, and automatic capacitor banks.

Q: What does it mean if the power factor is more than 1?

A: A power factor of more than one is impossible. The power factor of more than one implies that the phase difference between voltage and current is somehow generating electricity.
