Understanding ANSI Codes for Protection Relays: A Useful Guide

Do you want to keep your power systems protected?

Do you know what protection relays are?

And do you know what role ANSI Codes play in protection relays?

Keep on reading to find your answers!

In today’s world, it is important to ensure the safety of our power systems’ safety to avoid any potential dangers. Protection Relays play an essential role in equipment safety and the reliability of power supply.

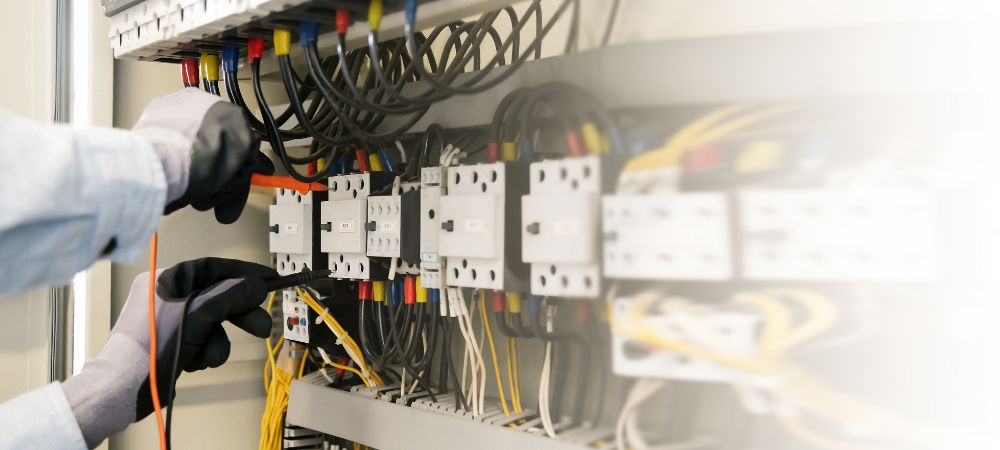

Do you know what a protection relay is in power systems? Protection Relays are essential components of our electrical grid. They detect abnormalities and issues within the electrical grid and take appropriate actions to prevent damage or interruption.

When a protection relay detects a fault in the electrical grid, it isolates the faulty section and cuts off the power supply. Protection Relays can, at times, also trigger a warning or an alarm indicating that something is wrong with the power system.

Understanding ANSI Codes

The American National Standard Institute (ANSI) has developed a set of codes to standardize the function of protection relays. These codes are called ANSI Codes. These codes serve as the universal language of design and functionality.

Still can’t understand What an ANSI Code is? Let’s Simplify!

Think of ANSI Codes as specifications! Like the specifications of a mobile phone include details about battery, memory, camera, and much more, ANSI Codes specify which system protection relays work better with.

Protective devices such as relays and circuit breakers use ANSI codes to represent their function and features. Think of ANSI codes as specifications! Using ANSI protection codes on protective devices helps engineers and technicians identify the functions and capacities of protection relays. This further facilitates the process of designing and implementing electrical systems.

In this guide, we’ll dig deeper into the fundamentals of protection relays and the importance of ANSI codes. Furthermore, we’ll provide an overview of the ANSI Codes for Protection Relays.

Format of ANSI Codes

The format of ANSI Codes is alpha-numeric. The numerical value called the device number in the ANSI code refers to the primary function and features of the protective device, and the letters are used to add further details and variations.

ANSI Protection Codes List

There are approximately 9500 ANSI Standards. And since we can’t dive into all of them, we will discuss some widely used and significant standards. Here is a comprehensive list of ANSI Protection Relay Codes. Have a look!

1. Overcurrent Protection

For Overcurrent protection, the following ANSI Electrical Standards are used:

i. ANSI 50/51: Phase Overcurrent

This standard detects current flow abnormalities and protects against phase overcurrent. As a result, the circuit trips when the current exceeds a certain threshold.

ii. ANSI 67: Directional Overcurrent

This code offers phase-to-phase short-circuit protection, tripping only if the fault current flows in the wrong direction.

iii. ANSI 50V/51V: Voltage-Restrained Overcurrent

This code ensures that the relay operates only when current and voltage conditions are met and provides overcurrent protection restrained by voltage. It prevents tripping during temporary voltage fluctuations that can cause a false alarm.

2. Earth Fault Protection

For Earth Fault Protection, the following ANSI Standard Relay Numbers are used:

i. ANSI 50N/51N or 50G/51G: Earth Fault

This code provides earth fault protection based on measured residual current values. When a ground fault is detected, this trips the circuit breaker, preventing electrical shock hazards.

ii. ANSI 67N/67NC: Directional Earth Fault

This code offers earth fault protection with selective tripping when the fault current flows in the wrong direction.

iii. ANSI 47: Negative Sequence Overvoltage

This standard indicates unbalanced loads or system faults. It trips the circuit breaker to prevent equipment damage when it detects excessive negative sequence voltage.

3. Frequency Protection

If frequency protection is required, the following ANSI codes for protection relays are used:

i. ANSI 81H: Over Frequency

This code monitors power supply frequency and activates protective measures if abnormally high frequencies are detected.

ii. ANSI 81L: Underfrequency

This code also monitors power supply frequency but activates protective measures when it detects abnormally low frequencies.

iii. ANSI 81R: Rate of Change of Frequency

This standard helps detect the rate of change of frequency. If the rate at which frequency varies exceeds a predetermined threshold, it would initiate tripping.

4. Voltage Protection

The following standards are usually adhered to in Voltage Protection Relays

i. ANSI 27D: Positive Sequence Undervoltage

This ANSI Code protects motors against faulty operations due to insufficient or unbalanced network voltage.

ii. ANSI 27R: Remanent Undervoltage

ANSI 27R Detects Undervoltage conditions during system restoration after a blackout.

iii. ANSI 27: Undervoltage

This detects abnormally low network voltages and triggers protective measures.

iv. ANSI 59: Overvoltage

ANSI 59 detects abnormally high voltage or enables source transfer after checking for sufficient voltage.

5. Other Protection

i. ANSI 49RMS: Thermal Overload

This standard guards against thermal damage caused by overloads. It detects prolonged high-current conditions and prevents overheating.

ii. ANSI 66: Starts per Hour

ANSI 66 protects against motor overheating caused by frequent starts.

iii. ANSI 79: Recloser

ANSI 79 limits downtime after faults on overheated lines.

This ANSI protection code list provides an overview of standards used in various relays, including but not limited to overload protection relays, general-purpose relays, and more.

Commonly Used ANSI Codes

Some of the commonly used ANSI Relay Codes:

• ANSI 50/51: Phase Overcurrent
• ANSI 67: Directional Overcurrent
• ANSI 49RMS: Thermal Overload
• ANSI 27: Undervoltage
• ANSI 59: Overvoltage
• ANSI 81L: Underfrequency

Why are ANSI Codes Significant?

ANSI Codes are essential as they have many benefits in designing, implementing, and operating protection relays in power systems. These benefits include:

1. ANSI codes offer a standardized and consistent set of specifications for interpreting the functions of relays, regardless of the manufacturer.
2. Relay devices from different manufacturers can communicate with each other within a power system using ANSI codes.
3. Protection functions specified by ANSI codes improve relay reliability, reduce the risk of damage, and prevent system failure.
4. ANSI Codes help identify and troubleshoot relay functions, facilitating efficient maintenance and repair activities.
5. Relays that comply with the ANSI standards can work with various new or old systems.

Application of ANSI Codes

ANSI codes can be used in many ways when it comes to power systems. These codes provide ANSI protection to the power systems against problems in transmission, distribution, and generation. To do this, relays that comply with ANSI standards are placed in critical locations within the power network. Engineers and operators can create firm protection plans for the power system using ANSI codes based on specific requirements and conditions.

Conclusion

The right ANSI Code for your protection relay will ensure safety and reliability. Furthermore, ANSI Codes allow multiple manufacturers to work together. Codes of ANSI protection enable engineers and technicians to identify the functions and capacities of protection relays.
