A Practical Guide to Cable Sizes and Selection for UAE & GCC Projects

Selecting the correct cable size is a foundational requirement for any electrical project in the UAE and wider GCC. A comprehensive cable sizes chart provides the essential starting point, detailing the current carrying capacity for various cross-sections—from 1.5mm² to 240mm²—under specific conditions. For engineers, panel builders, and procurement teams in Dubai and Abu Dhabi, mastering this data is critical for ensuring safety, compliance, and operational efficiency from day one.

Quick Reference Cable Sizes Chart for UAE Projects

Choosing the right cable is a critical decision in any electrical installation, particularly across the GCC. An undersized cable poses a severe fire hazard from overheating due to the region's high ambient heat and humidity, while an oversized one leads to wasted material costs and complex installation. In the demanding climates of Dubai and Abu Dhabi, where high temperatures directly impact a cable's performance, precise selection is non-negotiable.

To support initial project planning, we've developed a quick-reference chart for standard copper cables. The current ratings are specifically adjusted for local conditions, using a baseline ambient temperature of 45°C. This chart serves as a go-to tool for engineers, panel builders, and electricians requiring practical, locally relevant data.

Standard Copper Cable Sizes and Nominal Current Ratings for GCC Conditions

This table provides a quick lookup for common single-core and multi-core copper cable sizes, with approximate current carrying capacities derated for the high ambient temperatures common in the UAE and KSA. This data is crucial for any energy management solution in Dubai.

Cable Size (mm²)	Configuration	Nominal Current Rating (Amperes) at 45°C
1.5	Single-core / 2-3 Core	15 A
2.5	Single-core / 2-3 Core	20 A
4	Single-core / 2-3 Core	27 A
6	Single-core / 2-3 Core	35 A
10	Single-core / 2-3 Core	48 A
16	Single-core / 2-3 Core	65 A
25	Single-core / 2-3 Core	85 A
35	Single-core / 2-3 Core	105 A
50	Single-core / 2-3 Core	130 A
70	Single-core / 2-3 Core	165 A
95	Single-core / 2-3 Core	200 A
120	Single-core / 2-3 Core	230 A
150	Single-core / 2-3 Core	260 A
185	Single-core / 2-3 Core	300 A
240	Single-core / 2-3 Core	350 A
300	Single-core / 2-3 Core	400 A

These values serve as a solid baseline for most common applications, helping you make informed decisions quickly during the preliminary stages of your project.

Applications for This Chart

You can use this data for quick, preliminary selections in a few common scenarios:

• Sub-mains Feeders: Sizing conductors from a main distribution board to a sub-board.
• Final Circuits: Selecting wiring for lighting, power sockets, and fixed appliances.
• Motor Feeders: Determining the proper cable for connecting motors, considering their startup currents.

Important Note: This table is a foundational reference. For final calculations, it is mandatory to apply additional derating factors for grouping, installation methods (e.g., trunking vs. free air), and site-specific temperature variations to comply with local utility regulations.

This initial step ensures your designs are grounded in safe, efficient practices before a more detailed analysis. It provides a reliable baseline when specifying materials from trusted electrical components UAE suppliers like GoSwitchgear.

Cable Sizing Fundamentals in the GCC

A standard cable sizing chart is a starting point, but for any project in the UAE and the wider GCC, it's only half the story. The region's challenging climate—high ambient heat, humidity, dust, and intense sun—significantly alters cable performance. Using generic data without accounting for these local conditions is a recipe for premature failure, non-compliance with DEWA/ADDC standards, and serious safety hazards.

To ensure correct cable selection in Dubai or Riyadh, engineers and panel builders must look beyond basic numbers. Every safe, efficient, and compliant electrical design is built on three core principles.

Core Sizing Principles

• Current Carrying Capacity (Ampacity): This is the maximum current a conductor can handle continuously without exceeding its temperature rating. In the GCC, high ambient temperatures reduce a cable's ability to dissipate heat, thereby lowering its effective ampacity. An IP rating appropriate for dusty environments is also crucial.

• Voltage Drop: Over long distances, a cable's resistance causes voltage to decrease. This can impair equipment performance and efficiency. Proper sizing ensures the voltage at the load remains within acceptable limits, typically 3-5% as per local IEC and GCC standards.

• Short-Circuit Withstand: The cable must be robust enough to handle the immense thermal and mechanical stress of a short-circuit fault without damage. This capability is directly linked to its cross-sectional area and construction quality, often verified by certifications. For a deeper dive, review the fundamentals of understanding the cross-sectional area of a wire.

For any project in the region, applying derating factors is not just best practice—it is a mandatory step for safety and regulatory compliance. These factors adjust a cable's performance for real-world conditions that a standard chart cannot capture.

Neglecting these principles can lead to a correctly rated cable becoming dangerously undersized in the field. For instance, a conductor rated for 100A at a standard 30°C might only safely carry 80A or less in a 45°C UAE environment. A solid understanding of derating is non-negotiable for ensuring cable longevity, operational safety, and cost-effective, reliable electrical systems.

Low Voltage Single-Core Copper Cable Data

Single-core copper cables are the workhorses of power distribution within buildings and switchgear panels across the UAE. Their flexibility and superior conductivity make them ideal for final circuits, internal panel wiring, and main feeders connecting distribution boards. For any panel builder or electrical contractor, a reliable cable sizes chart for these conductors is an essential tool.

Unlike their multi-core armoured counterparts, single-core conductors are typically installed in containment systems like trunking, trays, or conduits. This installation method is critical as it directly impacts heat dissipation and, consequently, current carrying capacity. The data provided here considers these common installation practices, offering a practical starting point for designs in Dubai and Abu Dhabi. This guide covers the full range of low-voltage (LV) single-core copper cables, from 1.5mm² for lighting to 630mm² for heavy-duty incomers.

Single-Core Copper Cable Ampacity Reference

The following table provides approximate current ratings for single-core 600/1000V XLPE insulated copper cables based on common installation methods. These values are based on an ambient air temperature of 45°C, which is a standard reference for the GCC climate.

Cable Size (mm²)	Enclosed in Conduit (Amps)	On Cable Tray (Amps)	In Free Air (Amps)
16	60	75	85
25	80	95	110
35	100	120	135
50	120	145	165
70	150	185	210
95	180	225	250
120	210	260	290
185	265	330	370
300	350	440	500
500	460	580	660
630	520	660	750

Practical Application Example

Consider selecting a cable for a 250A feeder in a commercial tower in Dubai, installed on a perforated cable tray alongside other circuits.

1. Identify Load: The circuit requires a capacity of 250A.
2. Consult Chart: In the "On Cable Tray" column, a 95mm² cable is rated for 225A, which is insufficient. The next standard size, 120mm², is rated for 260A.
3. Initial Selection: A 120mm² single-core copper cable is the initial choice.
4. Final Verification: This selection must now be verified for voltage drop and adjusted using grouping derating factors, as it runs with other circuits. This is a critical step for compliance and safety.

The regional wires and cables market is expanding rapidly, hitting approximately USD 25.1 billion in 2023 across the Middle East & Africa and projected to reach USD 35.5 billion by 2030. For panel builders in Dubai and Abu Dhabi, this means frequent specification of single-core copper cables between 16mm² and 630mm², all requiring meticulous derating. You can explore more market trends and forecasts to stay informed.

Cross-referencing this data with circuit breaker ratings is a best practice that streamlines the design process and ensures the selected cable is adequately protected.

Armoured Cable Sizes for Power and Control Systems

For installations requiring robust mechanical protection, armoured cables are the definitive solution. Across the GCC, from industrial plants in Jebel Ali to infrastructure projects, Steel Wire Armoured (SWA) cables are standard. They provide essential toughness against impacts, crushing, and rodent damage, making them vital for critical power and control systems.

To aid in your specification process, we have compiled an armoured cable sizes chart covering common 2-core, 3-core, and 4-core configurations up to 400mm². This chart includes current ratings and voltage drop figures (mV/A/m) to accelerate engineering calculations and ensure your designs comply with local utility regulations from authorities like DEWA and ADDC.

Common Armoured Cable Sizes and Applications in UAE Projects

This quick-reference table outlines standard 4-core armoured cable sizes with their typical applications and current ratings, designed for industrial and commercial projects in the GCC.

Cable Size (mm²)	Nominal Current Rating (Amperes)	Typical Application (Example)	GoSwitchgear Product Link
16	70	Sub-main feeder for a small workshop or large residential villa	View 16mm² Armoured Cables
25	90	Power supply for a medium-sized commercial kitchen or machinery	View 25mm² Armoured Cables
50	125	Main feeder for a small office building or a large pump motor	View 50mm² Armoured Cables
95	185	Primary feeder for a multi-floor commercial block or SMDB	View 95mm² Armoured Cables
150	240	Distribution cable for a factory floor or small industrial unit	View 150mm² Armoured Cables
240	315	Main incomer for a medium-sized industrial facility or data centre	View 240mm² Armoured Cables

This table serves as a strong starting point. Always perform detailed calculations to verify your selection, particularly for long cable runs where voltage drop is a determining factor.

Practical Sizing Example for an External Motor

Let's analyze a common scenario: selecting a 4-core SWA cable for a 75A pump motor located 80 metres from the distribution panel at a facility in Abu Dhabi.

1. Select Based on Current: The motor load is 75A. The chart shows a 25mm² cable, rated for 90A, provides a safe margin.
2. Calculate Voltage Drop: For a 25mm² SWA cable, the voltage drop is approximately 1.5 mV/A/m.
   • Calculation: 1.5 mV/A/m × 75A × 80m = 9000mV, or 9.0 Volts.
3. Verify Compliance: On a 400V three-phase supply, a 9.0V drop is 2.25% (9V / 400V). This is well within the 5% limit typically specified for motor circuits by local regulations.

In the GCC's booming construction sector, armoured cable size charts are indispensable for contractors. For low-voltage power distribution in Gulf projects, the most frequently specified sizes are between 10mm² and 240mm². On a typical commercial site in Dubai, 60–70% of LV power feeders are between 25mm² and 95mm². Discover more insights on armoured cable specifications at GoSwitchgear.

This two-step process—sizing for current, then verifying voltage drop—ensures a safe and efficient selection, preventing equipment underperformance and premature failure.

Applying Derating Factors for Real-World Accuracy

A cable sizes chart provides theoretical maximum current ratings under ideal laboratory conditions. However, real-world environments like a Dubai construction site or an Abu Dhabi industrial plant are far from ideal. This is where derating factors become essential. They translate theoretical data into safe, practical ampacities suitable for actual operating conditions.

Applying these factors is a mandatory requirement stipulated in IEC 60364 and local utility regulations. Neglecting this step can lead to cable overheating, insulation failure, and significant fire risk. Derating is a systematic process of reducing a cable's baseline current rating to account for environmental and installation stresses.

Key Derating Factors for GCC Projects

For engineers and panel builders in the UAE, three primary derating factors must be considered to ensure every installation is safe and compliant.

• Ambient Temperature (Ca): The GCC climate is a defining factor. A cable in a 50°C switchgear room cannot dissipate heat as effectively as one in a 30°C environment. Applying the correct temperature correction factor is crucial for safety.
• Grouping of Cables (Cg): Bundling multiple current-carrying cables in a single tray or conduit elevates the local temperature due to their combined heat output. This mutual heating reduces the current each cable can safely carry.
• Thermal Insulation (Ci): Running cables through thermally insulated walls or ceilings traps heat, severely impeding dissipation and requiring a significant reduction in the cable's current rating.

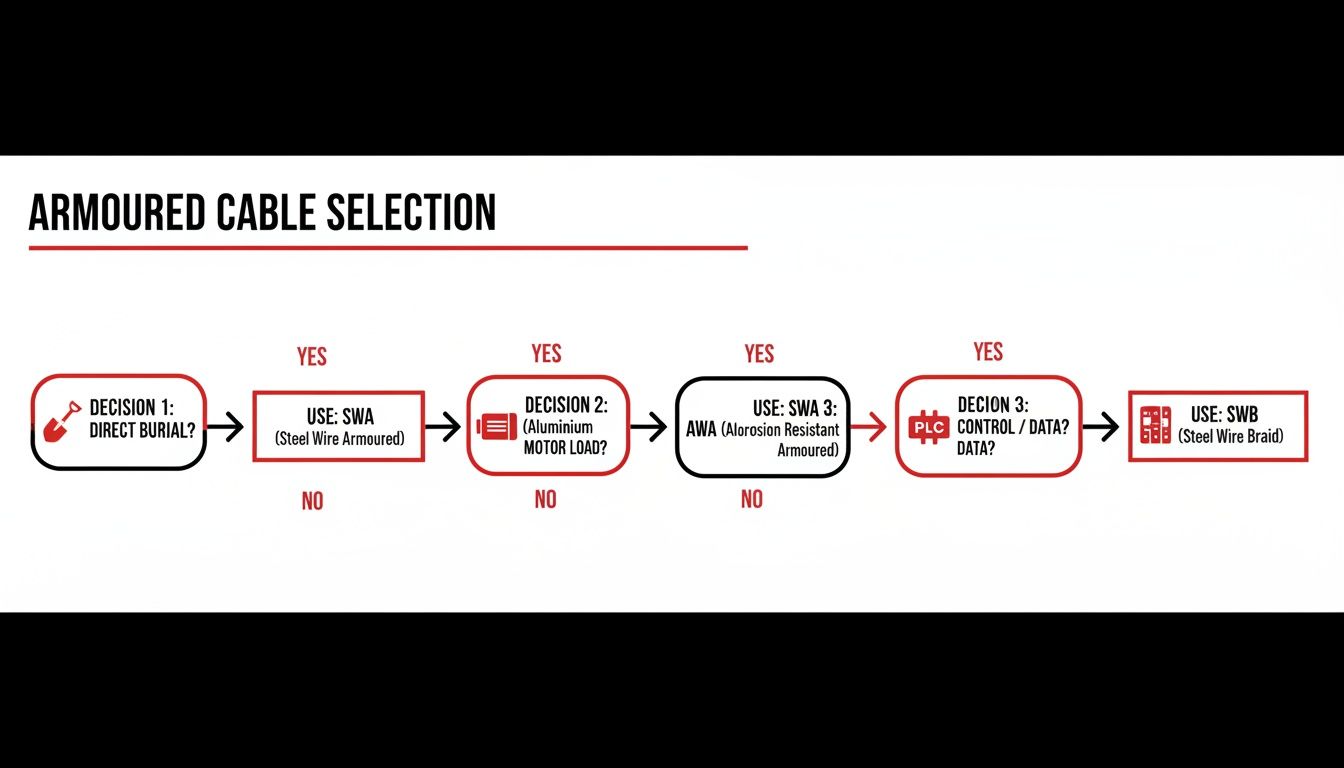

This decision tree helps visualize the selection process for armoured cables based on application-specific requirements.

As illustrated, the specific application—such as direct burial or powering a motor—is the primary driver for selecting the correct armoured cable type.

A Practical Derating Example

Consider a cable with a standard rating of 100A. It is to be installed in a group with five other circuits (Cg = 0.75) in an area where the ambient temperature reaches 45°C (Ca = 0.91).

The calculation is as follows:
Corrected Ampacity = Base Rating × Ca × Cg
Corrected Ampacity = 100A × 0.91 × 0.75 = 68.25A

The result is clear: the cable originally rated for 100A can now only safely handle 68.25A—a 31.75% reduction. This example underscores why derating is critical for preventing overloads and ensuring the long-term integrity of an electrical system. Mastering these calculations allows you to engineer robust solutions tailored for the demanding GCC environment.

Calculating and Managing Voltage Drop

While ampacity ensures a cable does not overheat, managing voltage drop is equally critical for equipment performance. As electricity flows through a cable, the conductor's inherent resistance causes a loss of electrical pressure. Consequently, the voltage at the load is always lower than at the source.

Excessive voltage drop can cause motors to struggle, lights to dim, and equipment to operate inefficiently, leading to wasted energy and increased operational costs. In the UAE and across the GCC, regulations typically limit this drop to 3% for lighting circuits and 5% for all other loads.

How to Calculate Voltage Drop

After making a preliminary selection from a cable sizing chart, calculating the voltage drop is the next essential step. The formula is straightforward.

Voltage Drop (V) = (mV/A/m) x Load Current (A) x Cable Length (m) / 1000

The mV/A/m (millivolts per ampere per meter) value is a standard specification found in manufacturer datasheets. It quantifies the voltage loss in millivolts for every ampere of current flowing through one meter of the cable.

Key Insight: A higher mV/A/m value indicates greater resistance and, therefore, a more significant voltage drop over distance. This is why selecting a cable based solely on its current rating is insufficient, especially for long runs.

Practical Example: Long-Distance Lighting

Consider a 15A lighting circuit in a large Dubai warehouse, with the lights located 60 meters from the distribution panel. A chart might suggest a 2.5mm² cable is adequate for the current.

• Find the mV/A/m value: For a 2.5mm² copper cable, this value is typically around 18 mV/A/m.
• Calculate the drop: (18 mV/A/m x 15A x 60m) / 1000 = 16.2 Volts.
• Check compliance: On a 230V single-phase system, a 16.2V drop is 7% (16.2V / 230V). This exceeds the 3% limit for lighting circuits.

The 2.5mm² cable is therefore unsuitable. It would be necessary to upsize to a 4mm² or 6mm² cable and recalculate to bring the voltage drop within the acceptable range. This principle is vital for applications like EV charging, where one must consider the Impact of Length on EV Charging Cable Sizing and Voltage Drop to ensure efficient power delivery.

Common Cable Sizing Questions Answered

Even with a detailed cable sizes chart, practical questions arise on site. In the UAE, balancing technical specifications, project budgets, and local regulations requires clear, reliable answers to make informed decisions. This section addresses the most frequent questions from engineers and electricians.

How Do I Choose Between Copper and Aluminium Cables?

The choice between copper and aluminium depends on budget, installation space, and application. Copper is a superior conductor, allowing a smaller cross-sectional area for the same current. This makes it ideal for confined spaces like control panels or for final circuits requiring highly reliable terminations.

Aluminium is lighter and more cost-effective, particularly for large cables used in utility supply lines or long feeder runs. However, it requires a larger cable size for the same current rating and meticulous termination to prevent oxidation. For most building distribution projects in the UAE, copper is the standard, while aluminium is more common on the utility side.

What Is the Maximum Permissible Voltage Drop in the UAE?

Standards in the UAE generally align with IEC and BS 7671, establishing widely accepted limits:

• A 3% maximum voltage drop for lighting circuits.
• A 5% maximum voltage drop for all other loads.

These values are calculated from the installation's origin point (e.g., the LV terminals of a private transformer). Always verify with the latest guidelines from local authorities like DEWA or ADDC for specific project requirements.

Expert Tip: Online cable size calculators can provide quick estimates but often use generic values that do not account for the high ambient temperatures and specific installation conditions of the GCC. A professional must always verify inputs for temperature, grouping factors, and installation methods. Using a comprehensive cable sizes chart and a thorough understanding of derating factors is the only way to ensure an accurate, safe, and compliant design.

---

For expert support on your next project in Dubai or Abu Dhabi, reach out to our team. Explore the extensive range of high-quality electrical components at GoSwitchgear to find everything you need for compliant and efficient installations. Visit us at https://goswitchgear.com.
